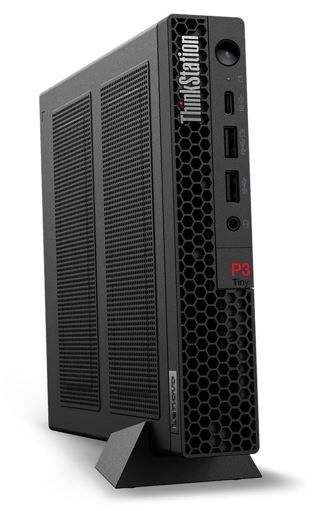

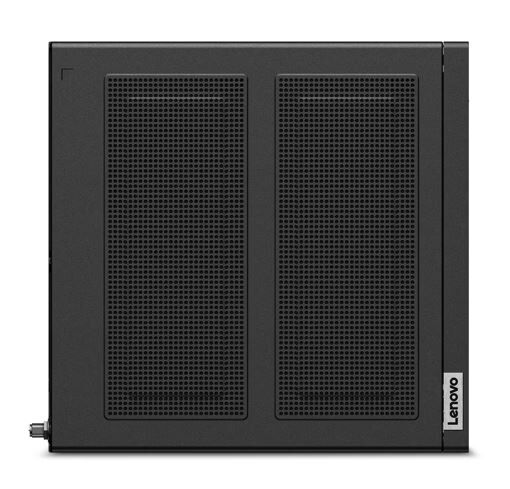

LENOVO ThinkStation P3 Tiny Intel i7-14700 16GB DDR5 1TB SSD WIN 11 PRO RTX A1000 UHD 770 GPU 3yr Premier 300W PSU AI Workstation Desktop

PERFORMANCE

Processor Intel Core i7-14700, 20C (8P 12E) 28T, Max Turbo up to 5.4GHz, P-core 2.1 5.3GHz, E-core 1.5 4.2GHz, 33MB

AI PC Category AI-Ready Workstations

Processor Sockets 1x FCLGA1700

Integrated Graphics Integrated Intel UHD Graphics 770

Discrete Graphics 1x NVIDIA RTX A1000 8GB

Chipset Intel Q670 Chipset

Memory 1x 16GB SO-DIMM DDR5-5600 Non-ECC

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 96GB (2x 48GB DDR5 SO-DIMM)

PCIe NVMe Controller Integrated NVMe controller

PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal

Audio Chip High Definition (HD) Audio, Realtek ALC256VB codec

Power Supply 300W 90pct Adapter

DESIGN

Keyboard USB Calliope Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Expansion Slots One PCIe 4.0 x8, low-profile

Case Color Black

Dust Filter None

Toolless Chassis Screw None

Mounting None

Stand None

Dimensions (WxDxH) Tiny only | 179 x 182.9 x 37mm with rubber feet (7.0 x 7.2 x 1.5 inches with rubber feet)

Tiny ODD | 204.2 x 186.6 x 64 mm with rubber feet (8.04 x 7.35 x 2.52 inches with rubber feet)

Weight 1.4 kg (3 lbs, maximum configuration)

CONNECTIVITY

Onboard Ethernet Intel I219-LM, 1x GbE RJ-45

Optional Ethernet None

WLAN Bluetooth Intel Wi-Fi 6E AX211, 802.11ax 2x2 BT5.1, vPro

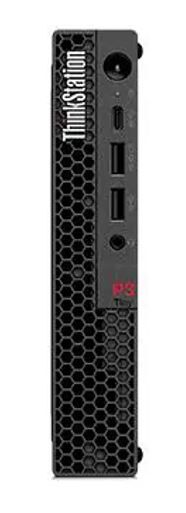

Front Ports 1x USB-C (USB 10Gbps USB 3.2 Gen 2), data transfer only

1x USB-A (USB 10Gbps USB 3.2 Gen 2), Always On

1x USB-A (USB 10Gbps USB 3.2 Gen 2)

1x headphone microphone combo jack (3.5mm)

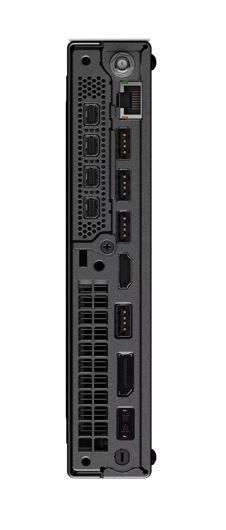

Rear Ports 2x USB-A (USB 10Gbps USB 3.2 Gen 2)

2x USB-A (USB 5Gbps USB 3.2 Gen 1), one supports Smart Power On

1x HDMI 2.1 TMDS

1x DisplayPort„ 1.4

1x Ethernet (RJ-45)

Optional Rear Ports (configured) 4x miniDP 1.4a on NVIDIA RTX A1000

SECURITY PRIVACY

Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks Kensington Security Slot„, 3 x 7 mm

Cable Lock No Cable

Chassis Intrusion Switch Chassis Intrusion Switch

MANAGEABILITY

System Management Intel vPro Enterprise with Intel AMT 16

SERVICE

Base Warranty 3-year, Onsite

Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite

CERTIFICATIONS

ISV Certifications Please visit ISV certifications for Lenovo Workstations

Mil-Spec Test MIL-STD-810H military test passed

SOFTWARE

Operating System Windows 11 Pro, English
