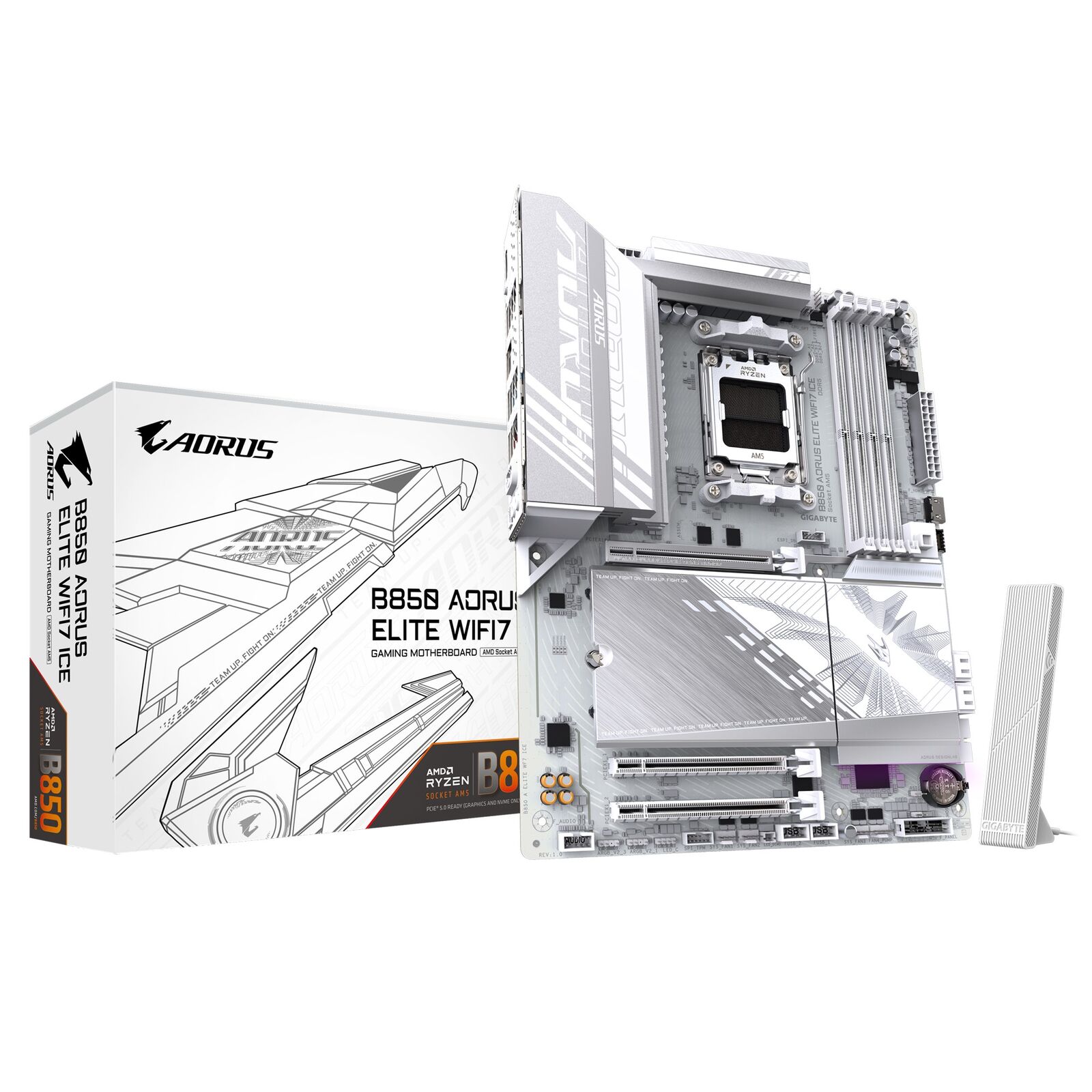

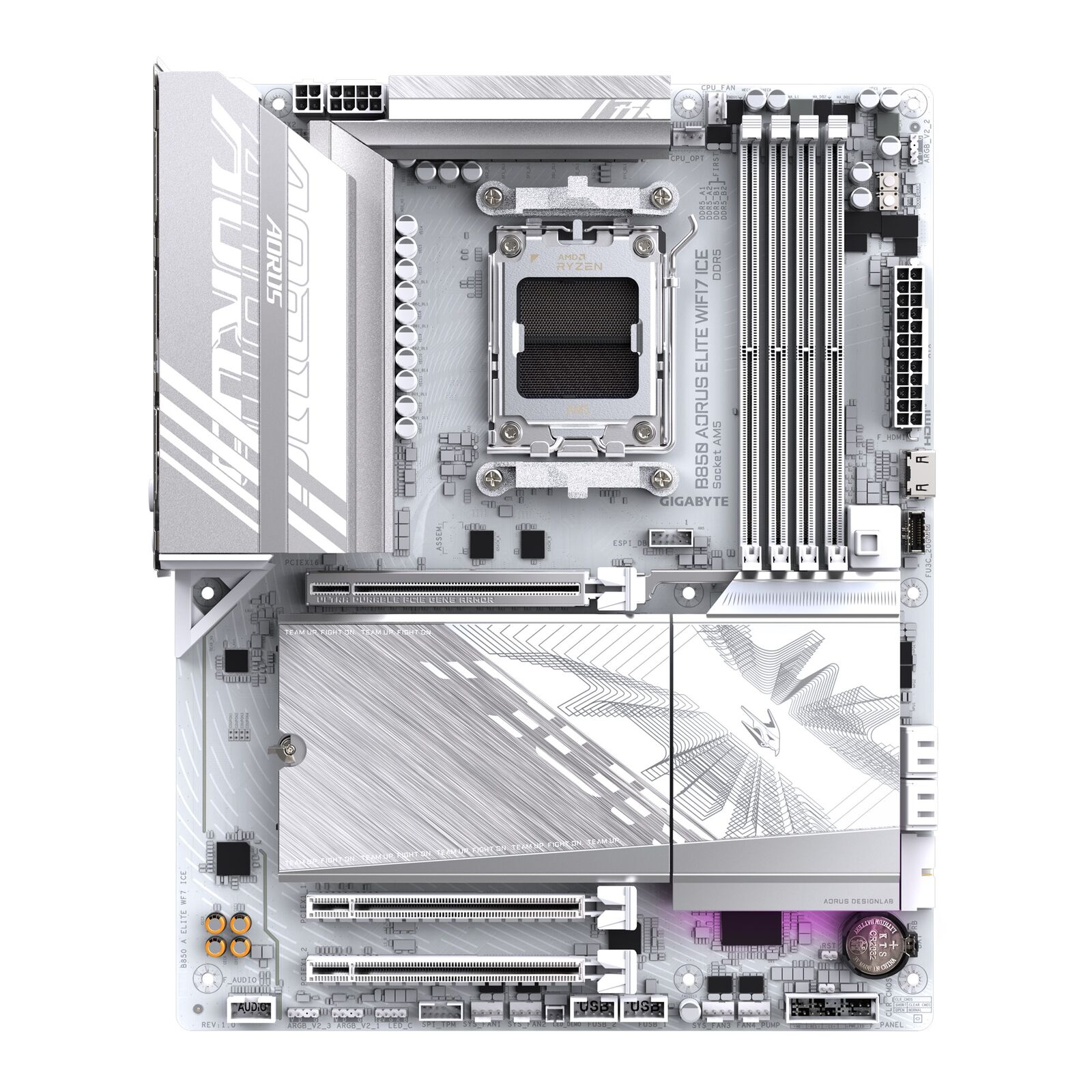

Gigabyte B850 A ELITE WF7 ICE 1.0 , AMD AM5, 1 x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 9x USB 3.2

CPU

AMD Socket AM5, support for:

AMD Ryzen„ 9000 Series Processors

AMD Ryzen„ 8000 Series Processors

AMD Ryzen„ 7000 Series Processors

(Go to GIGABYTE fts website for the latest CPU support list.)

Chipset

AMD B850

Memory

Support for DDR5 8200(O.C) 8000(O.C) 7950(O.C) 7900(O.C) 7800(O.C) 7600(O.C.) 7400(O.C.) 7200(O.C.) 7000(O.C.) 6800(O.C.) 6600(O.C.) 6400(O.C) 6200(O.C) 6000(O.C) 5800(O.C) 5600(O.C) 5200 4800 4400 MT s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ftMemory Support List ft on GIGABYTE fts website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon„ Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz

Support for DisplayPort 1.4 version and HDR.

- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080 30 Hz

Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps 1 Gbps 100 Mbps)

Wireless Communication module

Realtek Wi-Fi 7 RTL8922AE

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen„ 9000 7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen„ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen„ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110 22110 2580 2280 SSDs:

AMD Ryzen„ 9000 7000 Series Processors support PCIe 5.0 x4 x2 SSDs

AMD Ryzen„ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4 x2 SSDs

AMD Ryzen„ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110 22110 2580 2280 SSDs:

AMD Ryzen„ 9000 7000 Series Processors support PCIe 4.0 x4 x2 SSDs

AMD Ryzen„ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4 x2 SSDs

AMD Ryzen„ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110 22110 2580 2280 PCIe 4.0 x4 x2 SSDs

4 x SATA 6Gb s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen„ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

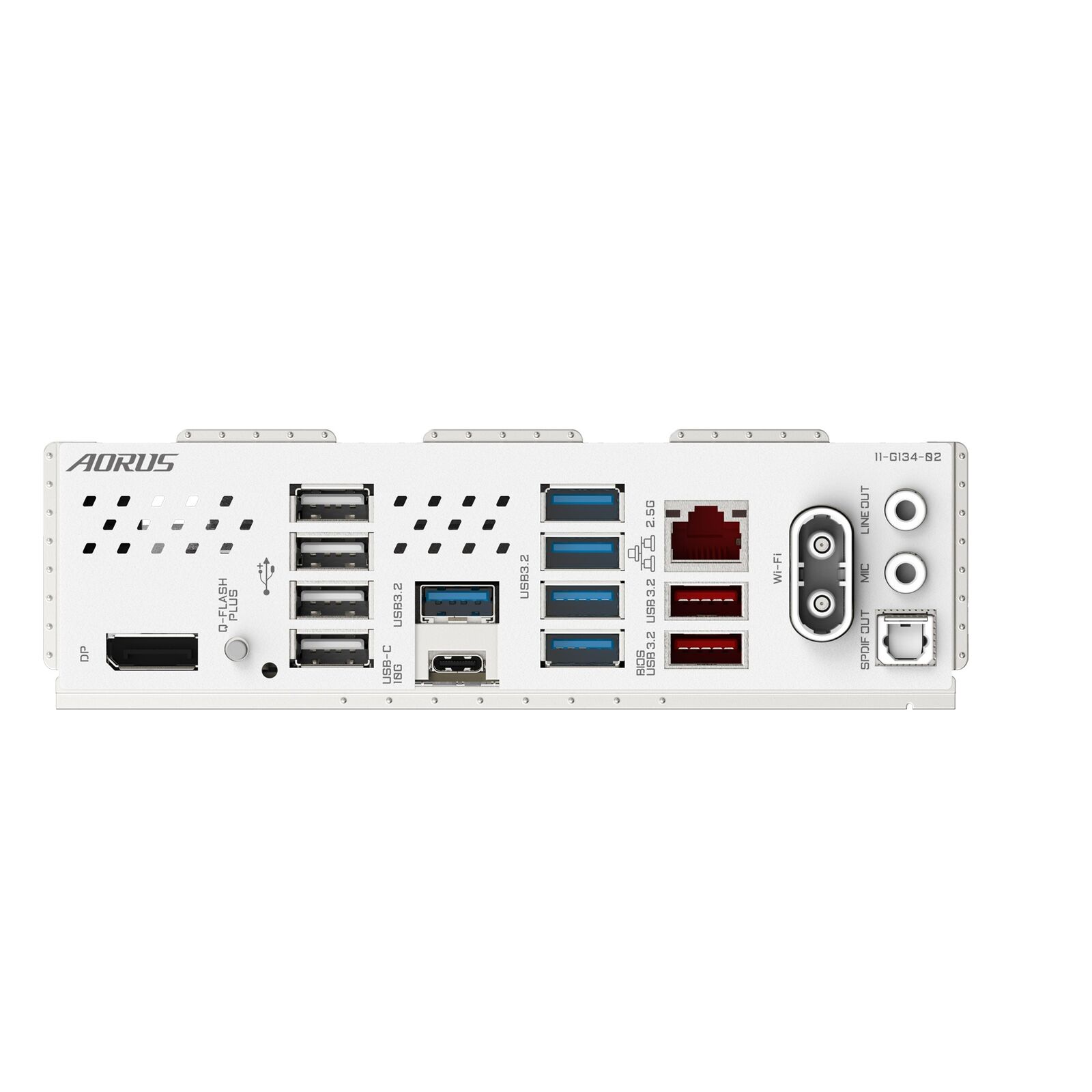

USB

CPU:

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPUUSB 2.0 Hub:

- 4 x USB 2.0 1.1 ports on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0 1.1 ports available through the internal USB headers

ChipsetUSB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel
