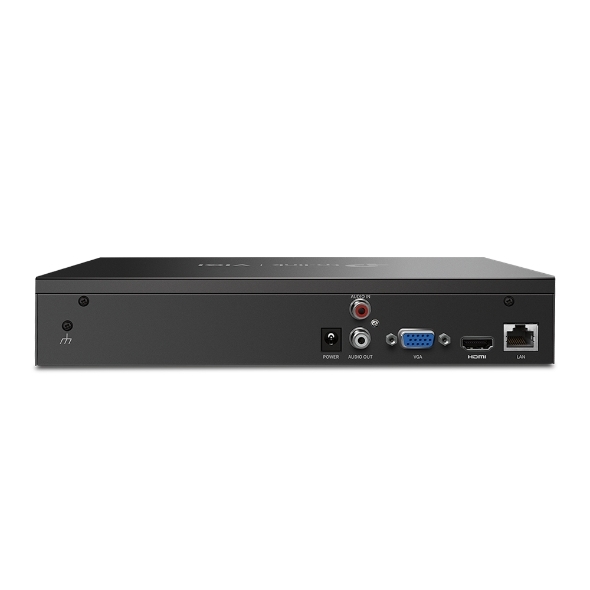

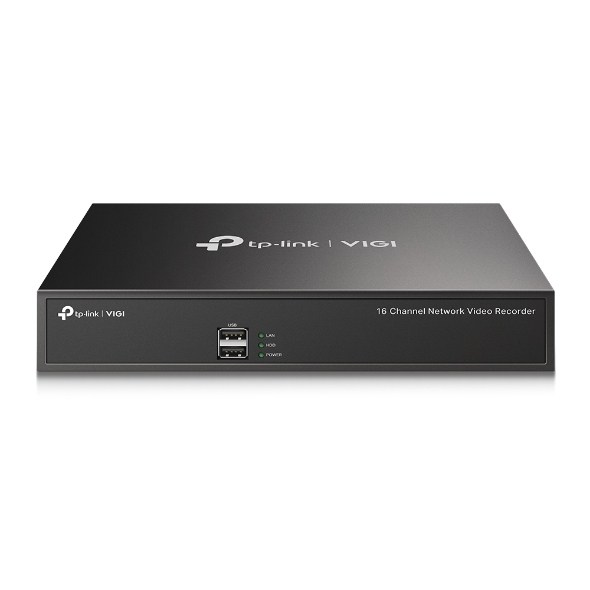

TP-Link VIGI NVR1016H VIGI 16 Channel Network Video Recorder

24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.

Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

1 HDD Interface (up to 10 TB) : Stores up to 10 TB (720 days–³ of video) on a SATA hard drive, keeping your data storage secured locally.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

NETWORK

Protocol TCP/IP, DHCP, DNS, NTP, UPnP

Incoming Bandwith 80 Mbps

Outgoing Bandwidth 60 Mbps

GENERAL

Operating Temperature -10“55 °C

Dimensions( H X W X D ) 246.2 × 148.2 × 45 mm

Weight 578.5 g

External Power Supply 12V DC/1.5 A

Power Consumption 4.25 W (without disk)

13.10 W (with disk)

VIDEO/IMAGE

Video Input 16-Channel IP Video Input, up to 8 MP Resolution

Video Output Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI/VGA

Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

DECODING

Decoding Format H.265+/H.265/ H.264+/H.264

Live View/Playback Resolution 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/

720p/VGA/4CIF/DCIF/2CIF/CIF
