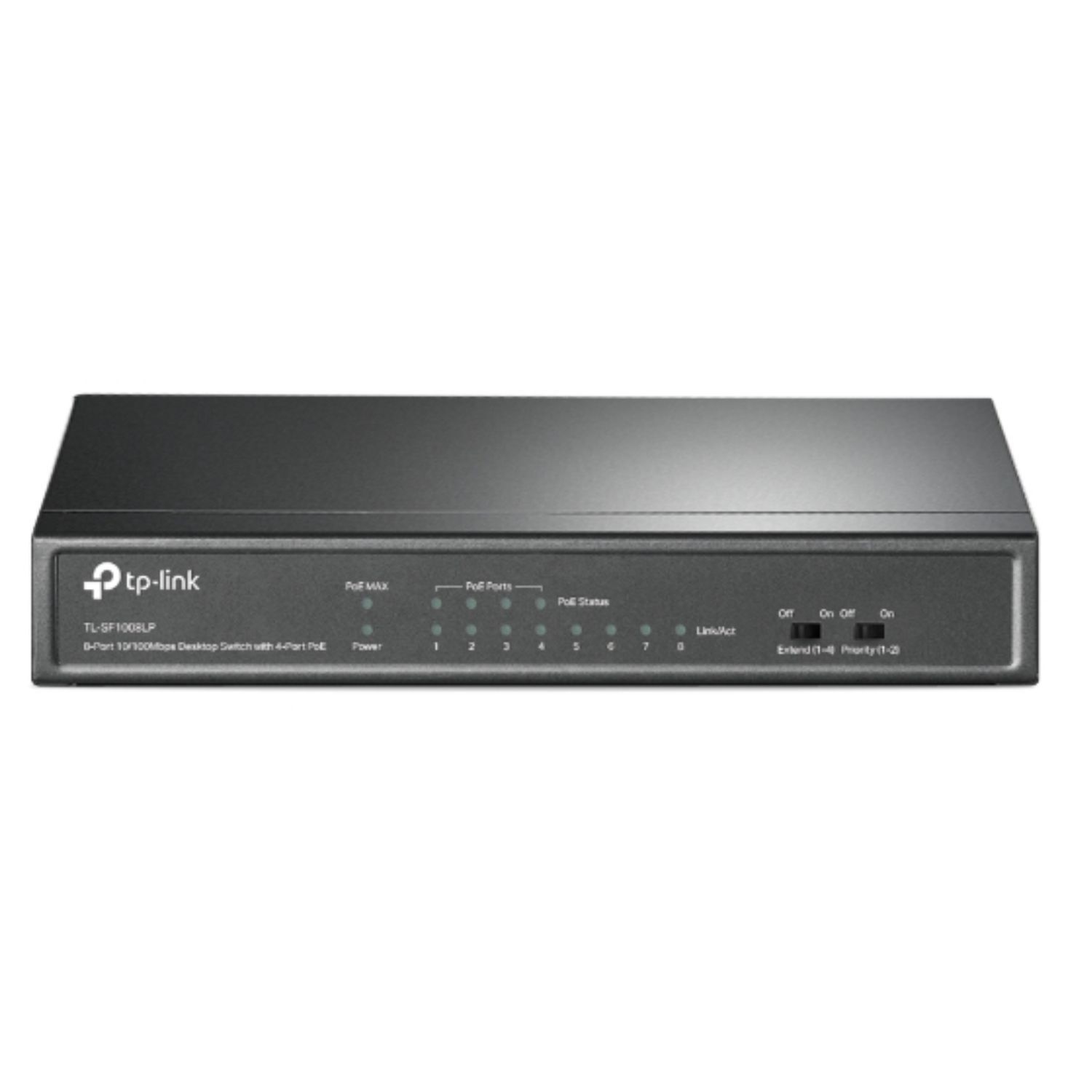

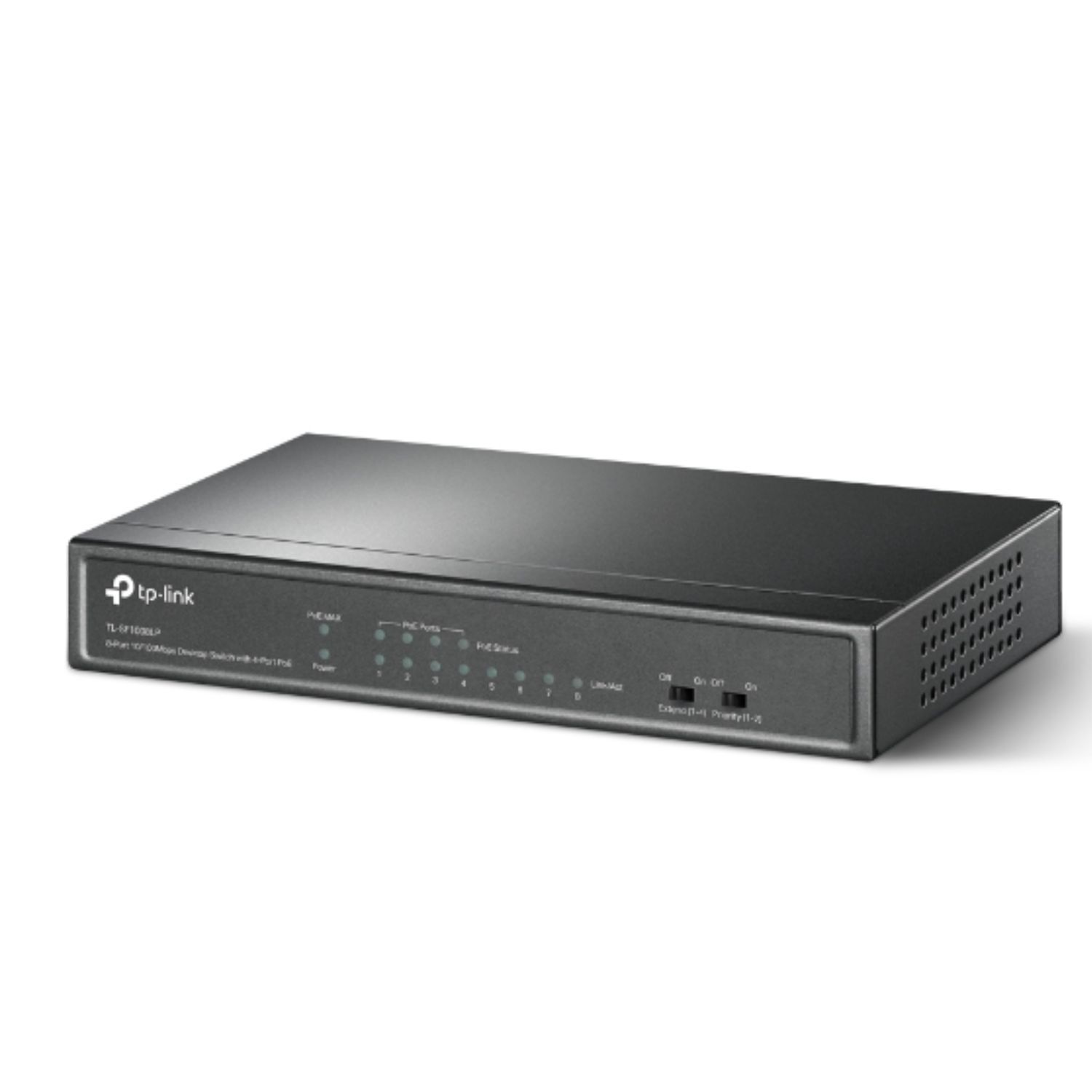

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE

8× 10/100 Mbps RJ45 ports

4× PoE ports transfer data and power on individual cables

Works with IEEE 802.3af compliant PDs

Up to 250m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application

Supports PoE Power up to 41 W for all PoE ports*

Plug and play with no configuration required

HARDWARE FEATURES

Interface 8× 10/100 Mbps RJ45 Ports (Ports 1“4 support 802.3af PoE)

AUTO Negotiation

AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)

PoE Ports (RJ45) Standard: 802.3 af compliant

PoE Ports: Ports 1“4

Power Supply: 41 W

Backbound Bandwidth 1.6 Gbps

Mac Address Table 2K

Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption 2.2 W (220 V/ 50 Hz. no PD connected)

47.1 W (220 V/ 50 Hz. with 41 W PD connected)

Max Heat Dissipation 7.5 BTU/h(no PD connected)

160.61 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af Compliant PDs

Extend Mode Button (Ports 1“4)

Priority Mode Button (Ports 1“2)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

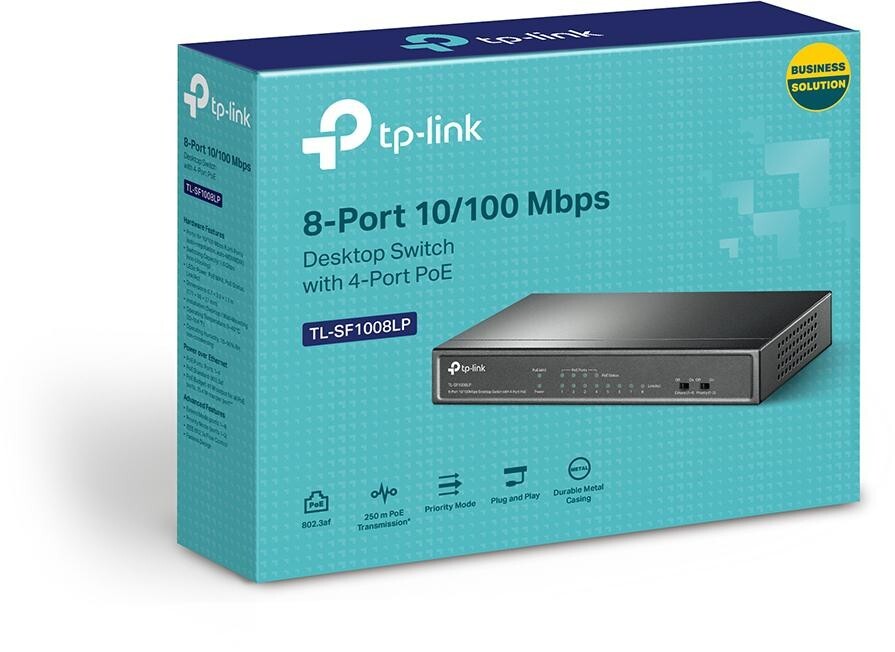

Package Contents TL-SF1008LP

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 „ƒ (32“104 „‰)

Storage Temperature: -40“70 „ƒ (-40“158 „‰)

Operating Humidity: 10“90% RH non-condensing

Storage Humidity: 5“90% RH non-condensing
