OVERVIEW

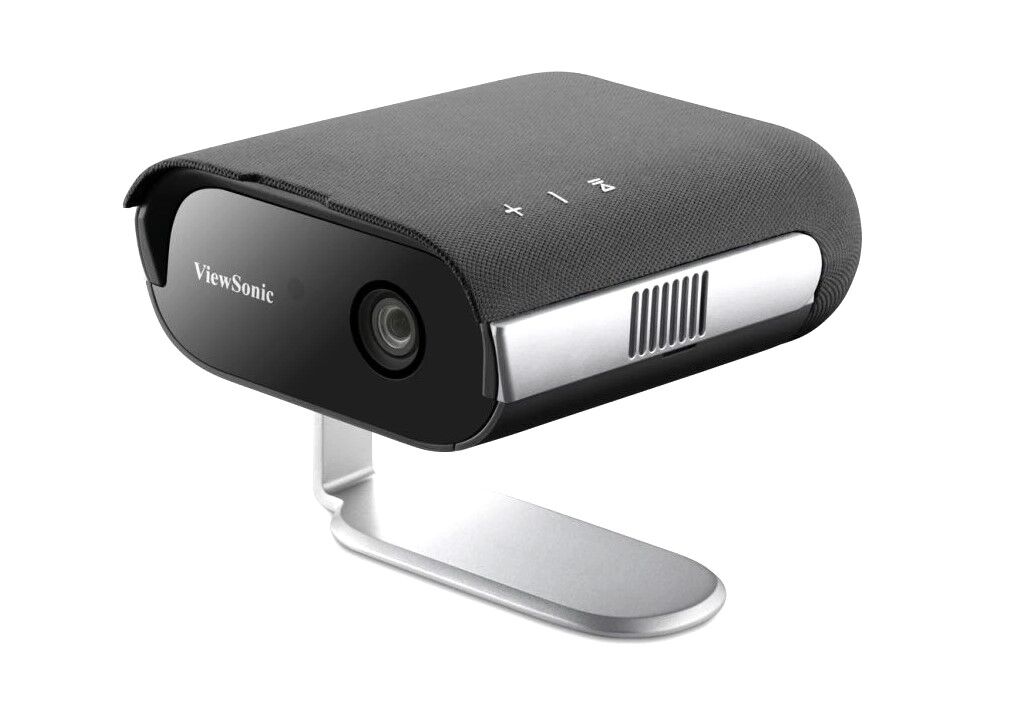

The M1 Max portable smart LED projector is your premium gateway to an elevated entertainment experience, boasting the signature ViewSonic M1 series design. Weighing less than 1kg, it offers 1080p resolution and built-in Google TV for seamless streaming. With a patented 3-in-1 smart stand for 360-degree projection, instant auto focus, and auto H V keystone correction, it fts designed for ultimate flexibility. Enjoy immersive visuals up to 100 ft with Harman Kardon speakers delivering rich sound, whether indoors or outdoors. The integrated battery powers convenient use, with power bank support for extended viewing. Stay connected with Bluetooth, Wi-Fi, and USB-C streaming for a complete all-in-one entertainment experience.‹‹

Built-in Google TV and native Netflix for seamless streaming entertainment

Patented 3-in-1 smart stand for 360 degree projection‹

1080p Full HD with built-in Harman Kardon speakers for an immersive cinematic experience

Integrated battery with power bank support for extended use

Smart capabilities: Wi-Fi screen mirroring, USB-C streaming, and Bluetooth connectivity

Hassle-free setup with auto H V keystone correction and instant auto focus

SPECIFICATIONS

Specification

Projection System: 0.23 ft 1080p

Native Resolution: 1920x1080

Brightness: 500 (LED Lumens)

Contrast Ratio: 120000:1

Display Color: 1.07 Billion Colors

Light Source Type: LED

Light Source Life (hours) with Normal Mode: 60000

Lens: F=1.7, f=7.4mm

Projection Offset: 100pct -5pct

Throw Ratio: 1.2

Optical Zoom: Fixed

Digital Zoom: 0.8x-1.0x

Image Size: 40 ft-100 ft

Throw Distance: 0.8m-2.67m

(40 ft 1.07m)

Keystone: H: -40 degree , V: -40 degree

Audible Noise (Normal): 26dB

Audible Noise (Eco): 25dB

Local Storage: Total 8GB

(4GB available storage)

Input Lag: 165ms

Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 23-85Hz

Input

HDMI: 1

(HDMI 1.4 HDCP 1.4)

USB Type C: 1(Video 5V 1A out ,

DC in 15V 3A )

USB Type A: 1

(USB2.0 Reader)

Wifi Input: 1 (5Gn)

Output

Audio-out (3.5mm): 1

Audio-out (Bluetooth): 1 (BT5.0)

Speaker: 3W Cube x2

(Full range x2)

USB Type A (Power): 1

(USB2.0 - 5V 1A,

share with USB A Input)

Control

USB Type A (Services): 1

(share with USB A Input)

Others

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19VDC 3.26A

Power Consumption: Normal: 46W

Standby: 0.5W

Operating Temperature: 0~35„ƒ

Carton: Color

Net Weight: 0.96kg

Gross Weight: 2.02kg

Dimensions (WxDxH) with Adjustment Foot: 182x141x62mm

Packing Dimensions: 235x190x130mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian Total 24 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Standard Accessory

Power Cord: 1

USB-C Cable: 1 (1m)

Remote Control: 1

(BT w o backlit)

QSG: YES

Warranty Card: Yes (CN JP)

Sleeve Bag: Yes
