Description

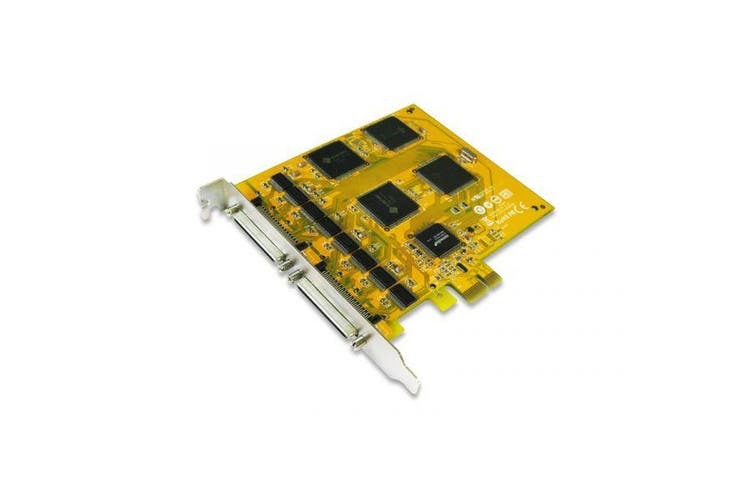

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS


Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.

High speed SUN1999 16C950 compatible UART controller on-board.

Designed to meet PCI Express Base Specification Revision 1.1.

Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

On-chip hardware auto flow control to guarantee no data loss.

Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.


Serial Communication

Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Controller SUNIX SUN1999

(16C950 UART Compatible) Baud rate 50bps ~921.6Kbps

BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2

No. of Port 16-port Parity even, odd, none, mark, space

IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS

FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female

Protection ±15KV ESD protection for each signal Human Body Model (HBM)

±15KV IEC1000-4-2 Air Gap Discharge

±8KV IEC1000-4-2 Contact Discharge


Dimension

PCB Dimension 120 x 110 mm

Bracket Standard 121 mm

Bracket Space 1

Specifications
SKU IDSUN-SER5416H
Barcode # 4710747389899
Brand Sunix
Shipping weight 1.5800kg
Shipping width 0.276m
Shipping height 0.182m
Shipping length 0.306m
Assembled length 2.060m
Assembled height 0.820m
Assembled width 1.760m

Sunix 16-port RS-232 High Speed PCI Express Serial Board 921.6Kbps Support Microsoft Windows Linux and DOS

$429.20
RRP $499.00 save 14%

or 4 payments of $107.30 with Learn more

In Stock

Product Information

SKU:

IDSUN-SER5416H

Brand:

Sunix

Barcode #:

4710747389899

Shipping Weigth:

1.5800kg

Warranty:

12
