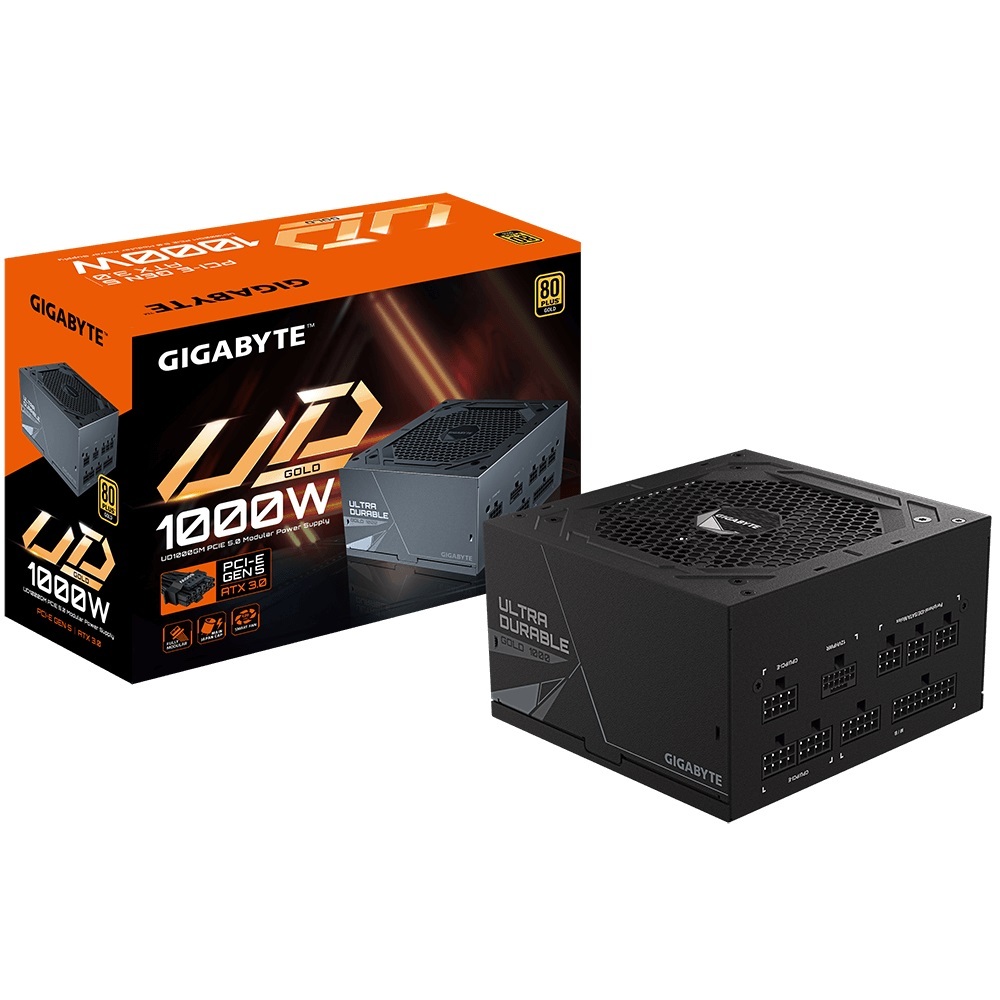

Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V Rail Japanese >100K Hrs


KEY FEATURE

Ultra Durable

Main Japanese capacitors

Enhanced thermal solution

120mm smart hydraulic bearing (HYB) fan

OVP/OPP/SCP/UVP/OCP/OTP protection

Support PCIe Gen 5.0 graphics card

High-quality native 16-pin cable supports 600W output

80 PLUS Gold certified

Fully modular design

Compact design

10 years warranty (Adjusted according to different regions)


SPECIFICATION:

Model

GP-UD1000GM PG5

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Specifications
SKU PSG-UD1000GMPG5-2.0
Barcode # 4719331553241
Brand Gigabyte
Shipping weight 3.4400kg
Shipping width 0.312m
Shipping height 0.220m
Shipping length 0.358m
Assembled length 2.580m
Assembled height 1.200m
Assembled width 2.120m

Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80 Gold 90pct 120mm Fan Black Flat Cables Single 12V 100K Hrs

$272.60
RRP $308.00 save 11%

or 4 payments of $68.15 with Learn more

In Stock

Product Information

SKU:

PSG-UD1000GMPG5-2.0

Brand:

Gigabyte

Barcode #:

4719331553241

Shipping Weigth:

3.4400kg
