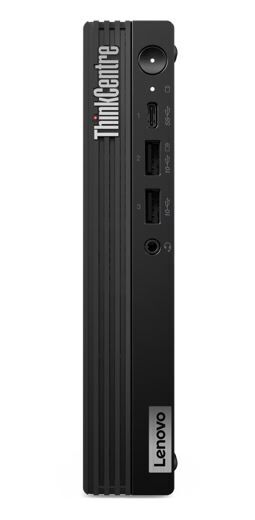

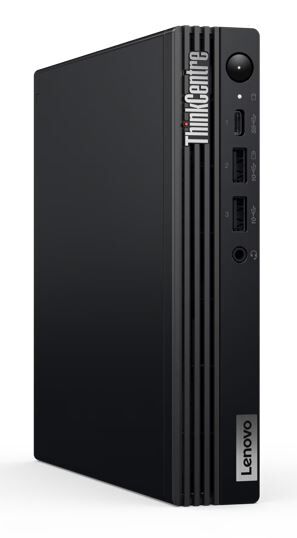

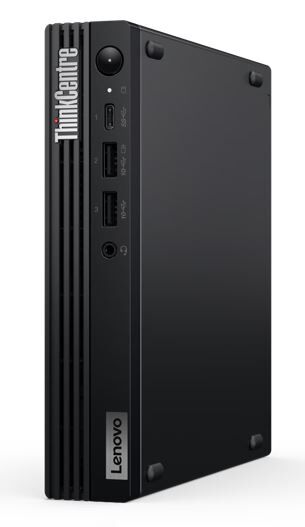

LENOVO ThinkCentre M70q G5 Tiny Desktop PC Intel i7-14700 32GB DDR5 1TB SSD Windows 11 Pro 3yrs Onsite Wty Keyboard Mouse WiFiBT LAN

Processor Intel Core„ i7-14700T, 20C (8P 12E) 28T, Max Turbo up to 5.2GHz, P-core 1.3 5.0GHz, E-core 0.9 3.7GHz, 33MB

Graphics Integrated Intel UHD Graphics 770

Chipset Intel Q670 Chipset

Memory 2x 16GB SO-DIMM DDR5-5600

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 64GB (2x 32GB DDR5 SO-DIMM)

Storage 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal

Storage Support Dual SSD mode: up to two drives, 2x M.2 SSD M.2 2280 SSD up to 2TB

RAID Preset None

Card Reader No card reader

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC233VB or Conexant CX11771 codec

Speakers 2Wx1

Power Supply 135W 89pct Adapter

DESIGN

Keyboard USB Traditional Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Expansion Slots Three M.2 slots (one for WLAN, two for SSD)

Case Color Black

Stand None

Adapter Cage None

Toolless Chassis Screw None

Dust Filter None

Mounting None

IO Box No IO box

Pen Pen Not Supported

Form Factor Tiny (1L)

Dimensions (WxDxH) 179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)

Weight Around 1.25 kg (2.76 lbs)

CONNECTIVITY

WLAN Bluetooth Intel Wi-Fi 6 AX201, 802.11ax 2x2 BT5.2

WWAN Non-WWAN

Ethernet Integrated 100 1000M

Front Ports 1x USB-C (USB 5Gbps USB 3.2 Gen 1), with 5V 0.9A charging

1x USB-A (USB 10Gbps USB 3.2 Gen 2), with Always On and 5V 2.1A charging

1x USB-A (USB 10Gbps USB 3.2 Gen 2)

1x headphone microphone combo jack (3.5mm)

Optional Front Ports (configured) None

Rear Ports 1x USB-A (Hi-Speed USB USB 2.0), with smart power-on

1x USB-A (USB 5Gbps USB 3.2 Gen 1)

2x USB-A (USB 10Gbps USB 3.2 Gen 2)

1x HDMI 2.1 TMDS

1x DisplayPort„ 1.4a (HBR2, DSC)

1x Ethernet (RJ-45)

Optional Rear Ports (configured) DP 1.4

SECURITY PRIVACY

Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader No fingerprint reader

Physical Locks Kensington Security Slot„, 3 x 7 mm

Kensington Cable Lock None

Chassis Intrusion Switch Chassis Intrusion Switch

MANAGEABILITY

System Management Non-vPro

SERVICE

Base Warranty 3-year, Onsite

Included Upgrade None

CERTIFICATIONS

Green Certifications ENERGY STAR 8.0

EPEAT„ Silver Registered

ENERGY STAR 8.0

ErP Lot 3 7

RoHS compliant

TCO Certified

Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
