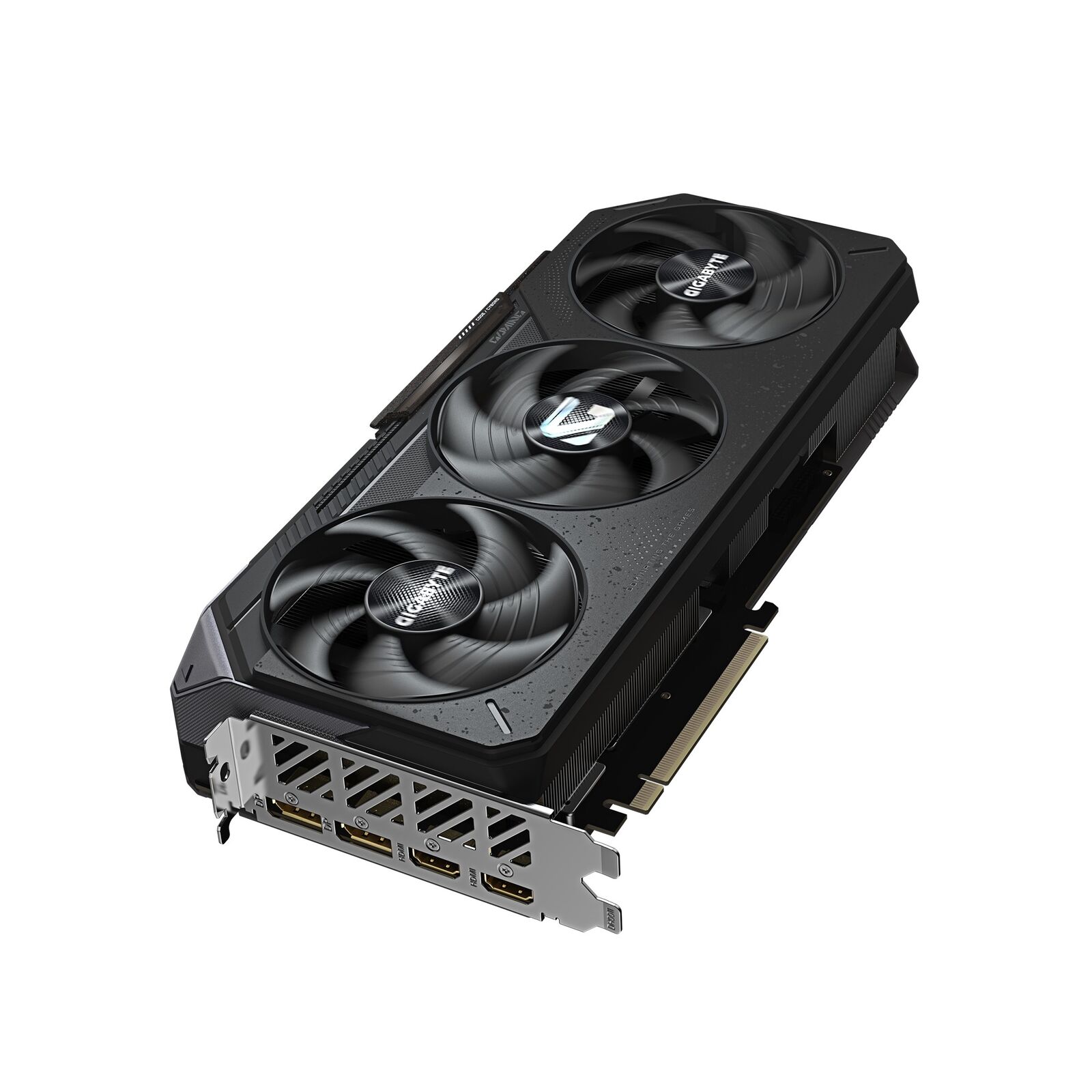

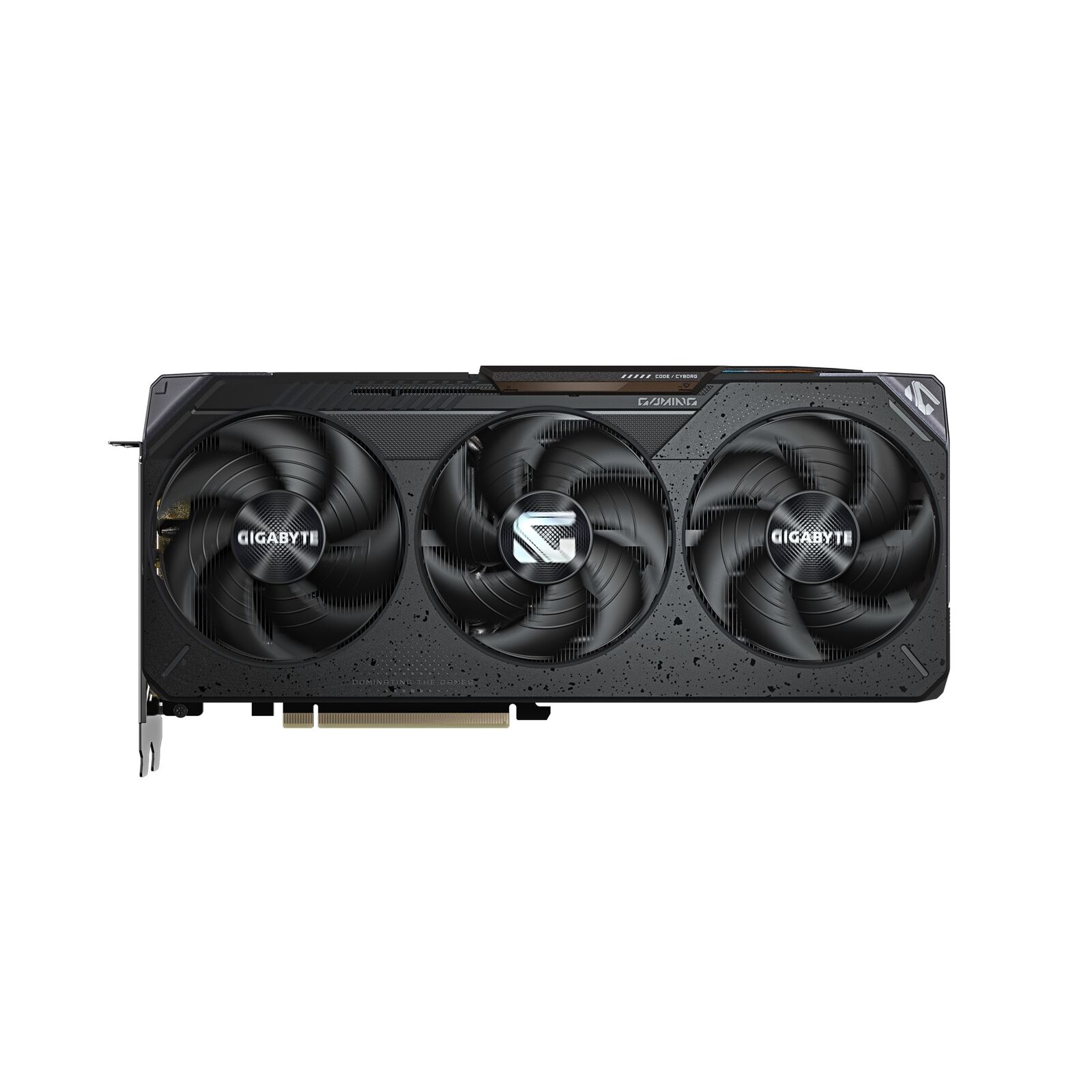

Gigabyte Radeon„ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin3, DisplayPort 2.1a 2 HDMI 2.1b 2

SPECIFICATION

Graphics Processing

Radeon„ RX 9070 XT

Core Clock

Boost Clock : up to 3060 MHz (Reference card: 2970 MHz)

Game Clock : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors

4096

Memory Clock

20 Gbps

Memory Size

16GB

Memory Type

GDDR6

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=288 W=132 H=56 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

850W

Power Connectors

8 pin3

Output

DisplayPort 2.1a 2

HDMI 2.1b 2

Accessories

Quick guide

Note

œBoost Clock ft is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

œGame Clock ft is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

FEATURES

Powered by Radeon„ RX 9070 XT

Integrated with 16GB GDDR6 256bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

RGB Lighting

Dual BIOS (Performance Silent)

Reinforced structure

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE

Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE

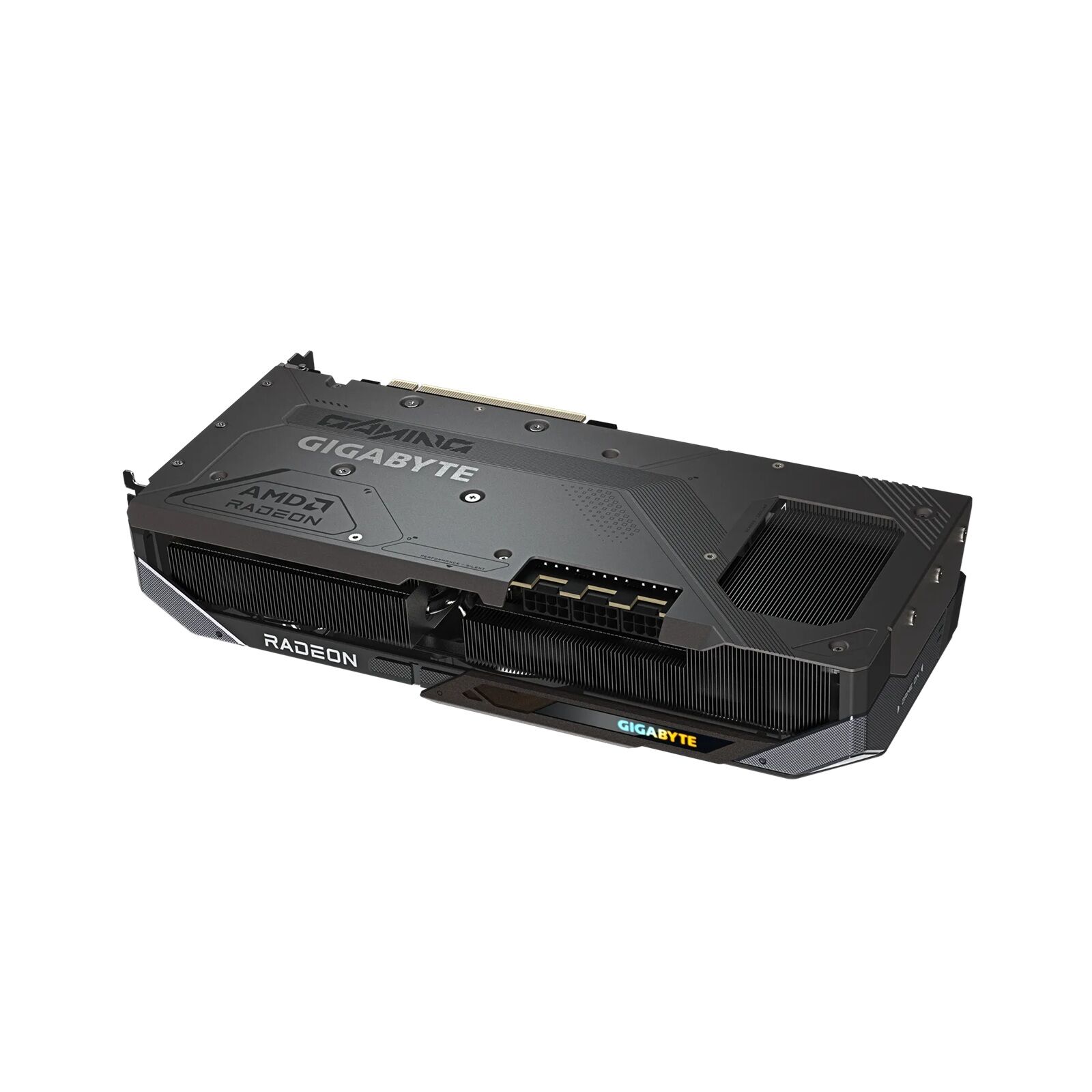

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.
