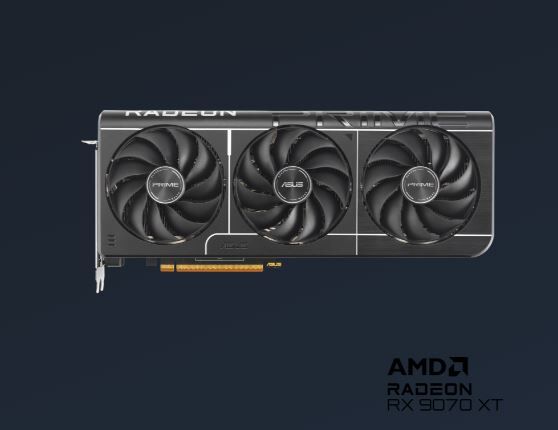

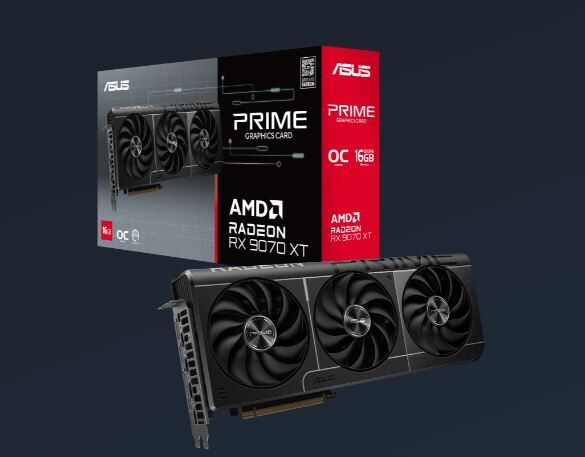

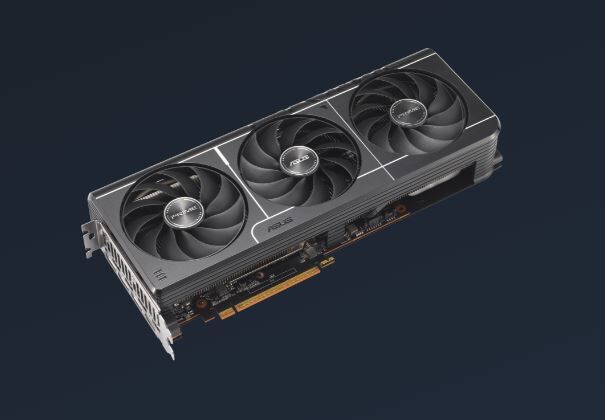

ASUS AMD Radeon PRIME RX 9070 XT 16GB GDDR6 OC Edition 20 Gbps‹ 2.5 Slot 256-bit

Model

PRIME-RX9070XT-O16G

Graphic Engine

AMD Radeon„ RX 9070 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode(GPU Tweak III): up to 3030 MHz (Boost Clock) up to 2480 MHz (Game Clock)

Default mode: up to 3010 MHz (Boost Clock) up to 2460 MHz (Game Clock)

Stream Processors

4096

Memory Speed

20 Gbps‹

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink Crossfire Support

No

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III Drivers: please download all software from the support site.

Dimensions

312 x 130 x 50 mm

12.3 x 5.1 x 2.0 inch

Recommended PSU

750W

Power Connectors

3 x 8-pin

Slot

2.5 Slot

Note

Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the œChoose By Wattage ft feature on our PSU product page: https: rog.asus.com event PSU ASUS-Power-Supply-Units index.html

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

˜Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

˜Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
