Overview

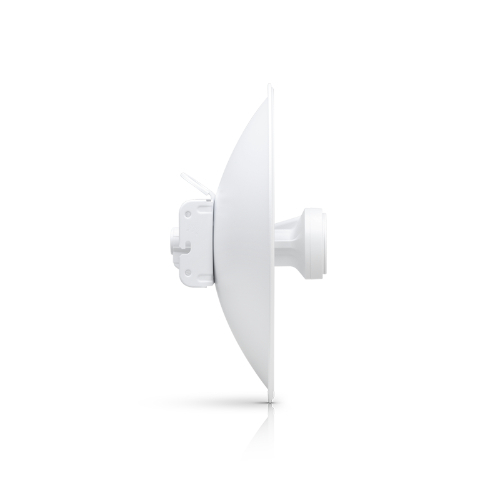

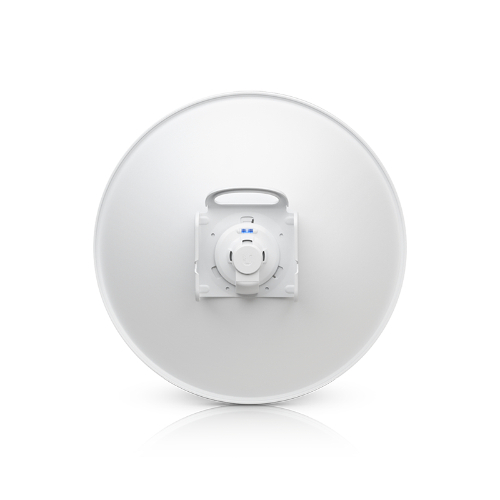

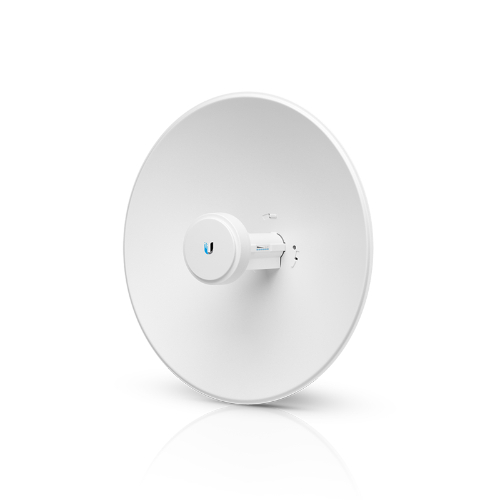

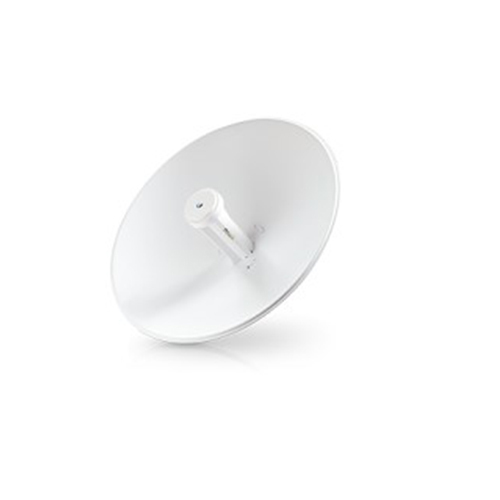

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the PowerBeam 2AC, with dedicated Wi-Fi management.
Powerful Wireless Features
High-performance airMAX ac CPE
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP)
Link Mode
Selectable Channel Width
PtP: 10/20/40 MHz
PtMP: 10/20/40 MHz
Automatic Channel Selection
Transmit Power Control:
Automatic/Manual
Automatic Distance Selection
(ACK Timing)
Strongest WPA2 Security
Usability Enhancements
airMagic Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic
Tools, Including RF Diagnostics and
airView Spectrum Analyzer
Specifications:-
Dimensions with Radome 420 x 420 x 289 mm (16.54 x 16.54 x 11.38')
Weight (Mount Included) 1.795 kg (4.809 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 7.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 22 to 26VDC
Gain 18 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode PtMP Mode
10/20/40 MHz 10/20/40 MHz
Enclosure Characteristics
Antenna Feed Dish Reflector
Outdoor UV Stabilized Plastic Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1
SKU | NHU-PBE-2AC-400 |
Barcode # | 810354024665 |
Brand | Ubiquiti |
Shipping weight | 4.3600kg |
Shipping width | 0.606m |
Shipping height | 0.592m |
Shipping length | 0.246m |
Assembled length | 1.460m |
Assembled height | 4.920m |
Assembled width | 5.060m |
