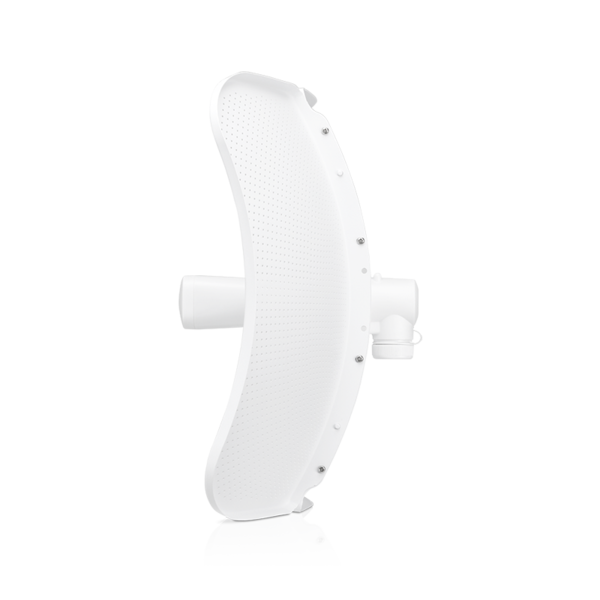

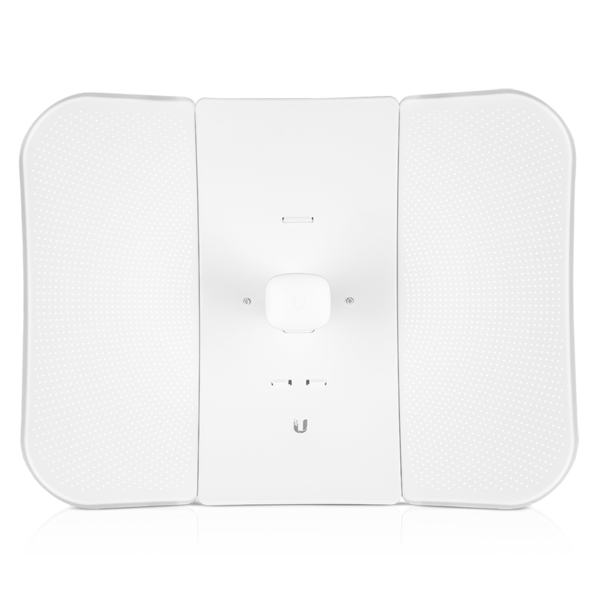

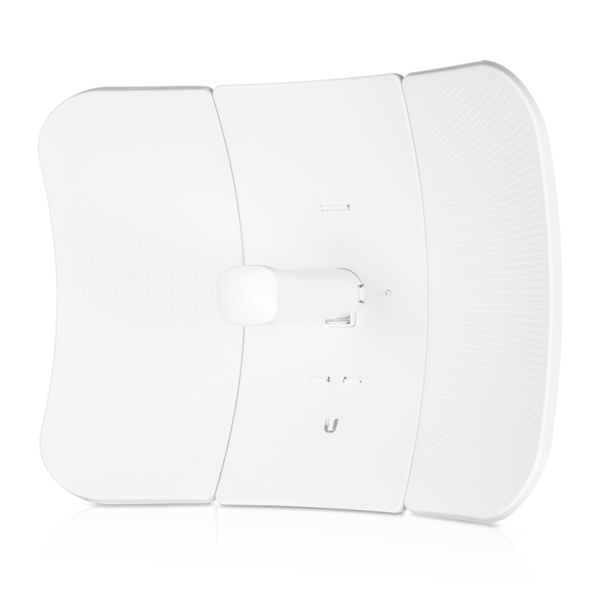

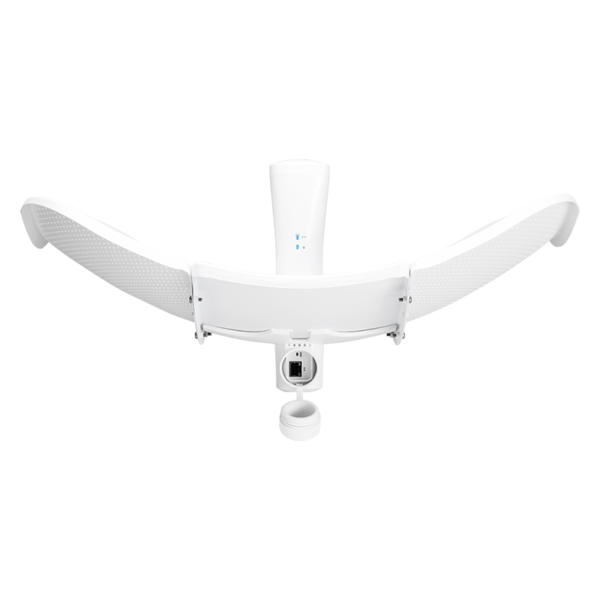

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
Features:
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8
UISP mobile app for Android and IOS
Now with airOS8 and airView
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds “ no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.
SPECIFICATION
Dimensions 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17')
Weight Without Mount: 1.360 kg (2.998 lb), With Mount 1.735 kg (3.825 lb)
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Gain 26 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics Reflector (Aluminium) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
SKU | NHU-LBE-5AC-LR |
Barcode # | 817882026345 |
Brand | Ubiquiti |
Shipping weight | 3.0600kg |
Shipping width | 0.346m |
Shipping height | 0.254m |
Shipping length | 0.514m |
Assembled length | 4.140m |
Assembled height | 1.540m |
Assembled width | 2.460m |
Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station 450 Mbps Throughput 26dBi Gain 2x2 MIMI Antenna airOS 8
