Description

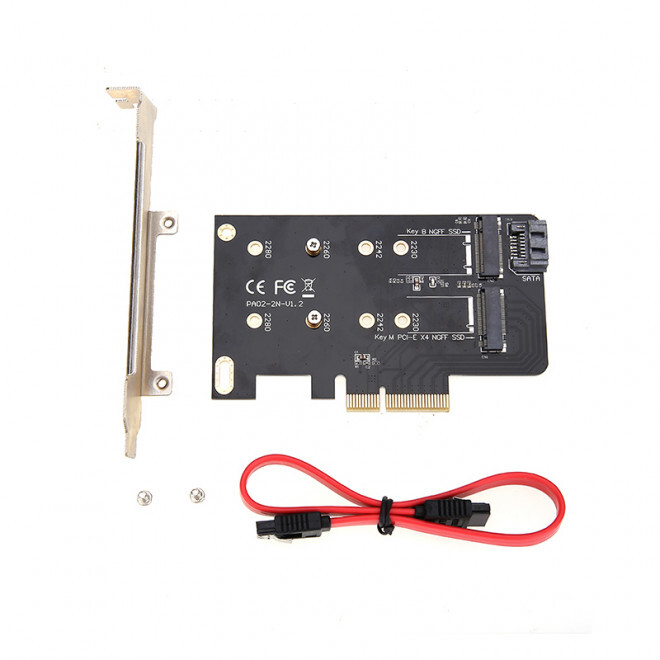

EC412 is a PCI Express expansion card designed to add NGFF M.2 devices such as SSD onto existing PC motherboard. Dual M.2 slots support both PCI-E based M.2 device (M key, NVMe) to run via the faster PCI-E interface at up to 32Gbps, and legacy SATA based M.2 slot (B key) for connecting to a SATA III port.


Features


Connects one M.2 port (M key) into one PCI-E x4 interface

Connects a second M.2 port (B key) into SATA 6G interface

Supports two M.2 SSD simultaneously

Supports PCI-E interface (M key) at up to 32Gbps

Supports SATA interface (B key) at up to 6Gbps

No driver installation required

Specifications


Interface: PCI Express X4 / SATA 6Gbps

SSD Interface: M.2(NGFF)

Module Key: B key (SATA-based), M key (PCI-E 4X-based, NVMe)

Number of Drives: 2

Supported Type M.2 SSD: 2230, 2242, 2260 and 2280

Supported Length of M.2 SSD: 30mm, 42mm, 60mm, 80mm

Important Note


M key M.2 is for use with PCI-E (NVMe) SSD only, B key M.2 is for use with SATA SSD only.

B key M.2 SSD requires SATA 7 pin cable connected to motherboard to function.

NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system.

Its recommended to update your motherboards driver and BIOS to the latest version before install the Expansion Card.

Package Contents


1x PCI Express Expansion Card

2x Mounting Screws

1x SATA Cable

Specifications
SKU MBSI-EC412
Barcode # 9350414001058
Brand Simplecom
Shipping weight 0.7000kg
Shipping width 0.214m
Shipping height 0.134m
Shipping length 0.272m
Assembled length 1.720m
Assembled height 0.340m
Assembled width 1.140m

Simplecom EC412 Dual M.2 (B Key and M Key) to PCI-E x4 and SATA 6G Expansion Card

$18.56
RRP $39.60 save 53%

or 4 payments of $4.64 with Learn more

In Stock

Product Information

SKU:

MBSI-EC412

Brand:

Simplecom

Barcode #:

9350414001058

Shipping Weigth:

0.7000kg

Warranty:

12
