Description

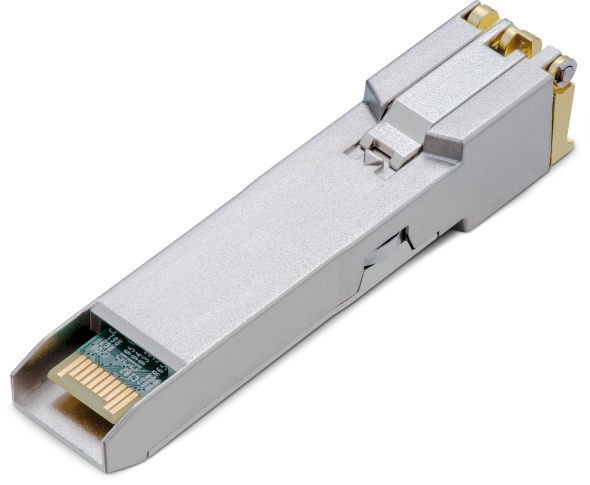

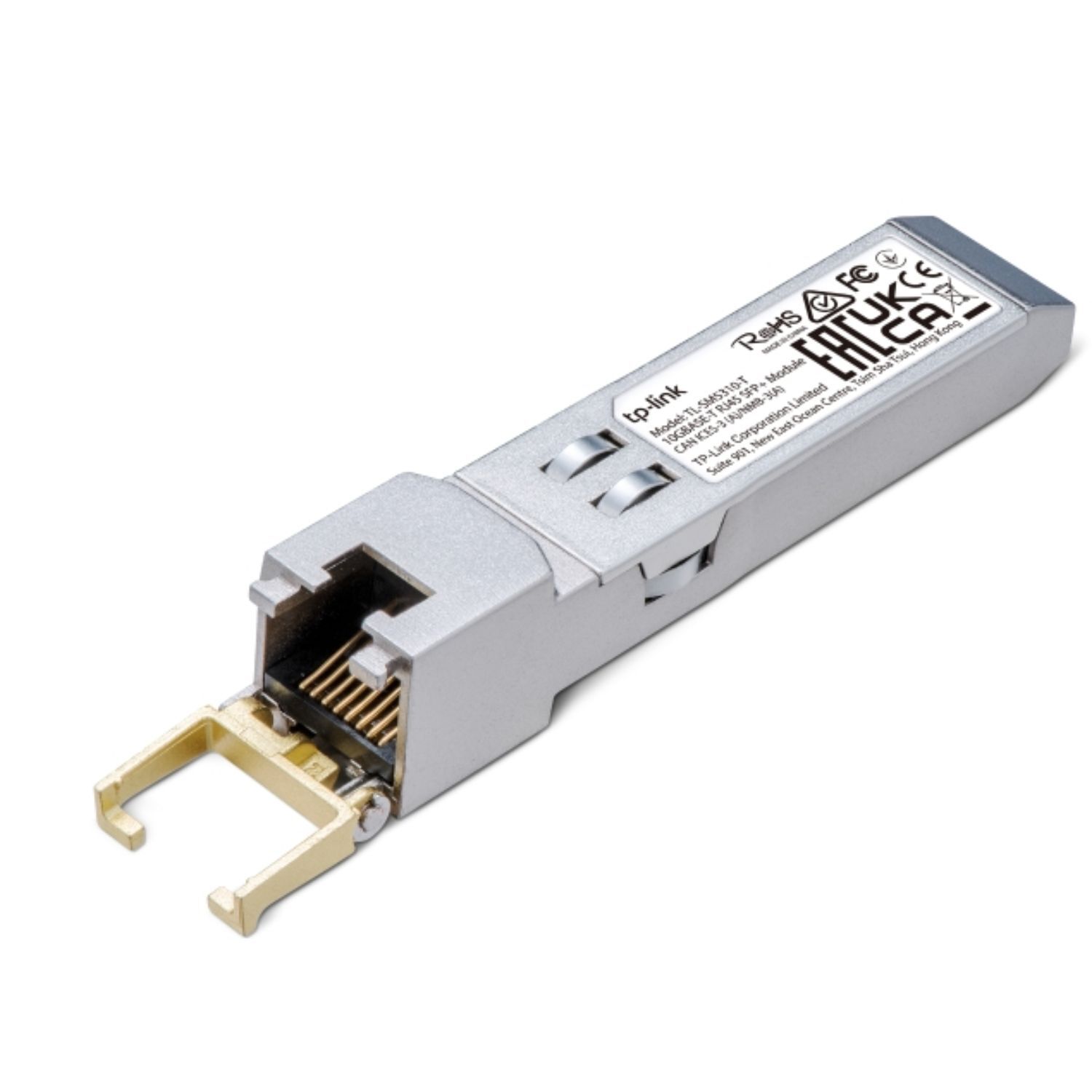

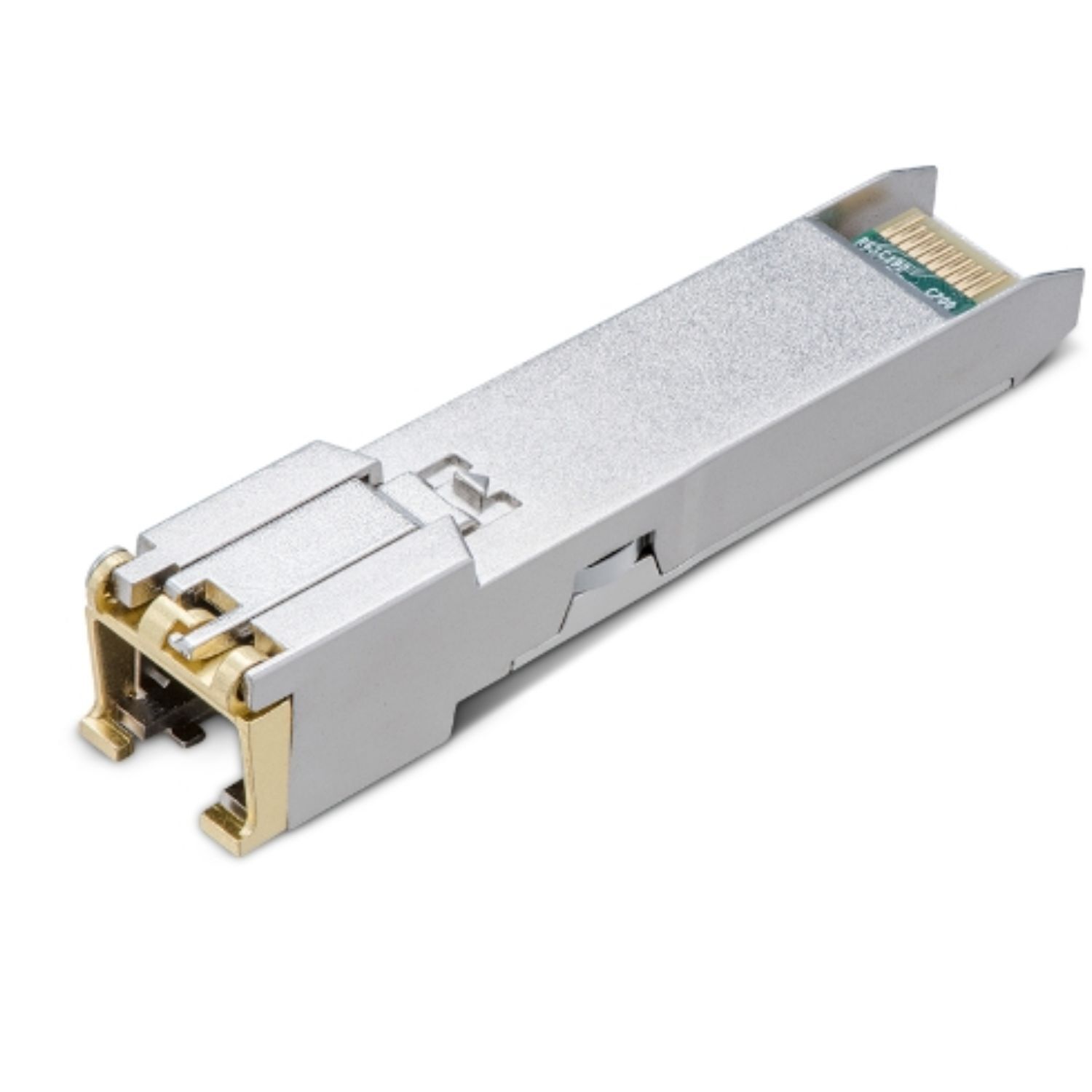

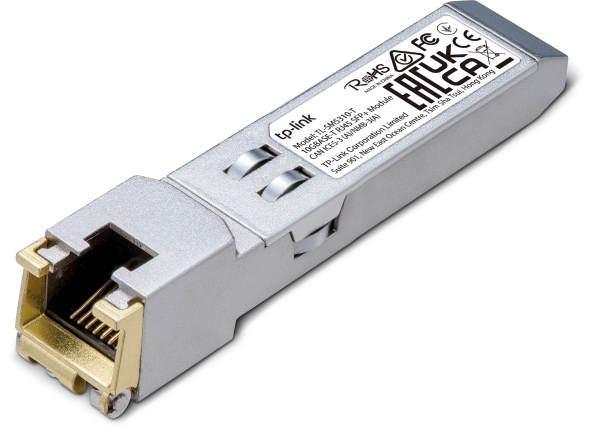

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module


Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX

Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)

Support DDM (Temperature and Voltage)

Hot-Pluggable SFP+ Footprint Features

Support TX Disable function

Commercial Product Operating Temperature Range: 0-70°C

Fully Metallic Enclosure for Low EMI


PACKAGE CONTENTS

Package Contents 10G BASE-T RJ45 SFP+ Module TL-SM5310-T

Installation Guide


HARDWARE FEATURES

Hot Swappable Yes


TRANSCEIVER

Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an

Power Supply 3.3V

Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)

1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)

10GBASE-T: UTP cat.6a or above (max. 30m)

Data Rate 10.3 Gbps

Port Type 1× 10G RJ45 Port

Safety & Emission FCC, CE, RoHS

Environment Operating Temperature: 0“70 „ƒ (32“158 „‰)

Storage Temperature: -40“85 „ƒ (-40“185 „‰)

Specifications
SKU NWTL-SM5310-T
Barcode # 4897098687758
Brand TP-LINK
Shipping weight 0.6600kg
Shipping width 0.222m
Shipping height 0.140m
Shipping length 0.182m
Assembled length 0.820m
Assembled height 0.400m
Assembled width 1.220m

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP Module Transmit data up to 30m at 10 Gbps Support DDM Support TX Disable function Metallic EnclosuRR

$81.20
RRP $99.00 save 18%

or 4 payments of $20.30 with Learn more

Sold Out

Product Information

SKU:

NWTL-SM5310-T

Brand:

TP-LINK

Barcode #:

4897098687758

Shipping Weigth:

0.6600kg
