Description

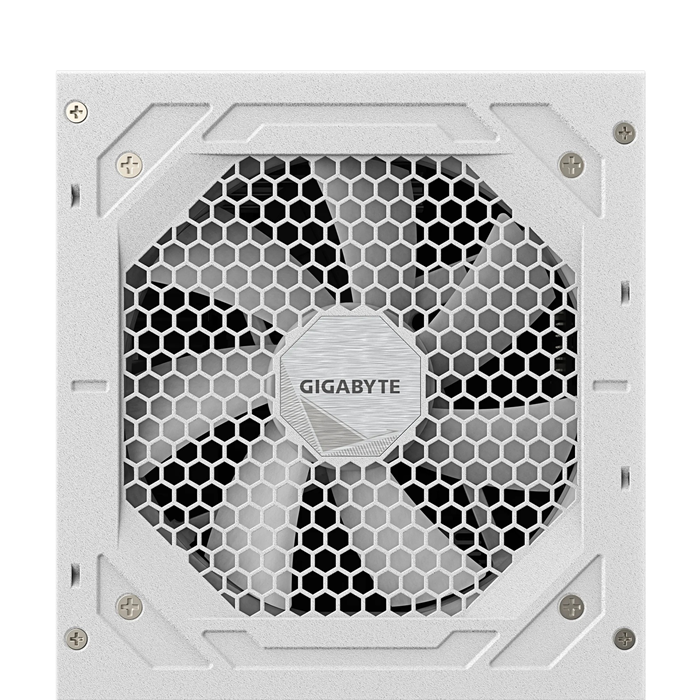

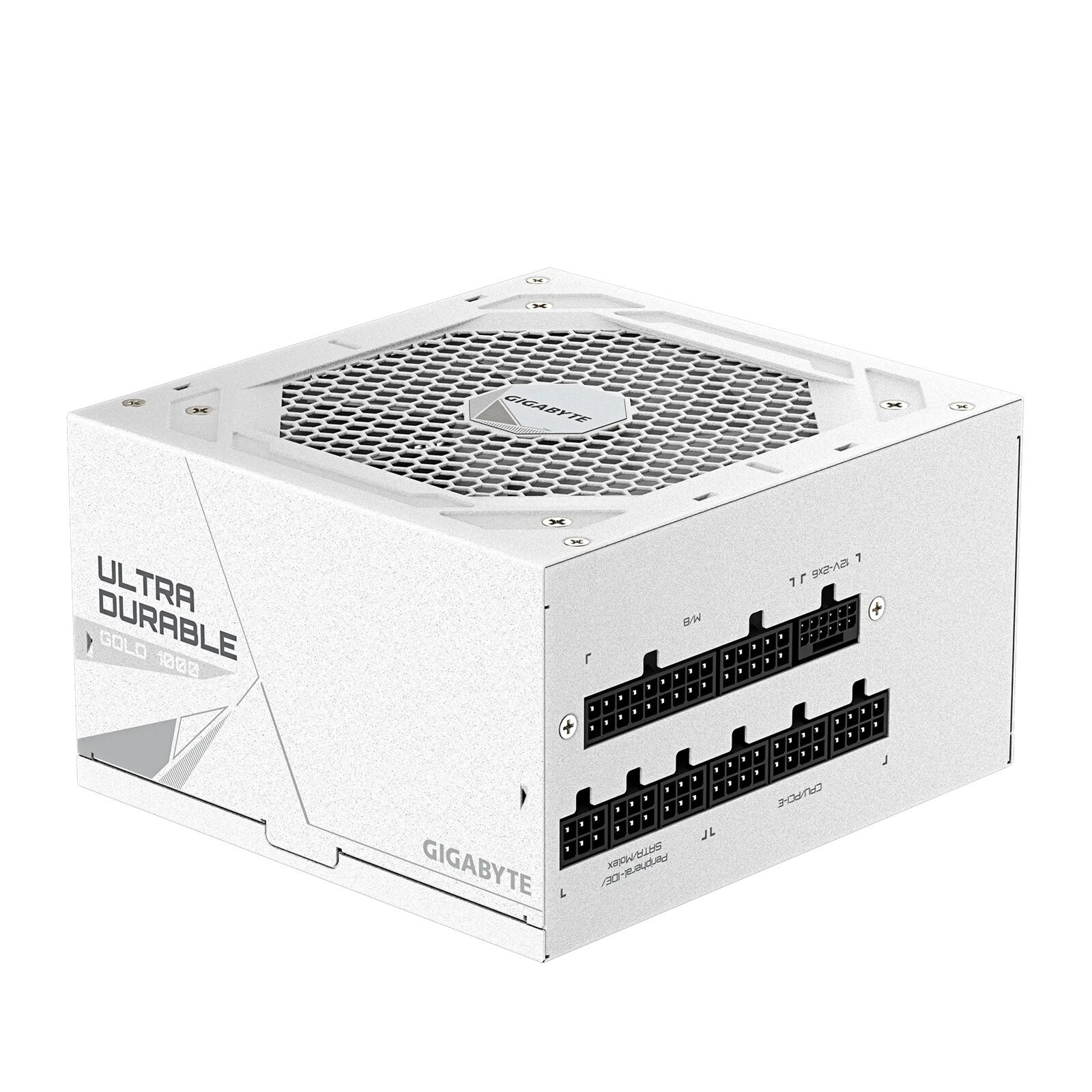

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80 Gold 90pct 120mm Fan Black Flat Cables Single 12V 100K Hrs


KEY FEATURE

Ultra Durable

Main Japanese capacitors

Enhanced thermal solution

120mm smart hydraulic bearing (HYB) fan

OVP OPP SCP UVP OCP OTP protection

Support PCIe Gen 5.0 graphics cards

Support Intel ATX 3.0 standard

80 PLUS Gold certified

Fully modular design

Compact design

10 years warranty (Adjusted according to different regions)


SPECIFICATION:

Model GP-UD1000GM PG5

Type Intel Form Factor ATX 12V

PFC Active PFC (0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 15-6.5A

Input Frequency 60-50 Hz

Output Capacity 1000W

Dimension 150 x 140 x 86 mm

Fan Type 120mm Hydraulic Bearing(HYB)fan

80 PLUS Gold

Efficiency 90pct at typical load

MTBF 100,000 hours

Protection OVP OPP SCP UVP OCP OTP

Power Good Signal 100-150ms

Hold Up Time 16ms

Cable Type Flat, black

Connectors:

ATX MB 204 Pin x 1 : 610mm1

CPU EPS 44 Pin x 2 : 600mm200mm1

PCI-e 16 Pin x 1: 700mm1

PCI-e 62 Pin x 4 : 600mm150mm2

SATA x 8 :

600mm150mm150mm150mm2

4 Pin Peripheral x 34-Pin floppy x 1 : 500mm120mm120mm150mm1

Specifications
SKU PSG-UD1000GMPG5ICE
Barcode # 4719331556648
Brand Gigabyte
Shipping weight 2.8400kg
Shipping width 0.312m
Shipping height 0.220m
Shipping length 0.358m

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80 Gold 90pct 120mm Fan Black Flat Cables Single 12V 100K Hrs

$228.00
RRP $314.82 save 28%

or 4 payments of $57.00 with Learn more

In Stock

Product Information

SKU:

PSG-UD1000GMPG5ICE

Brand:

Gigabyte

Barcode #:

4719331556648

Shipping Weigth:

2.8400kg
