Description

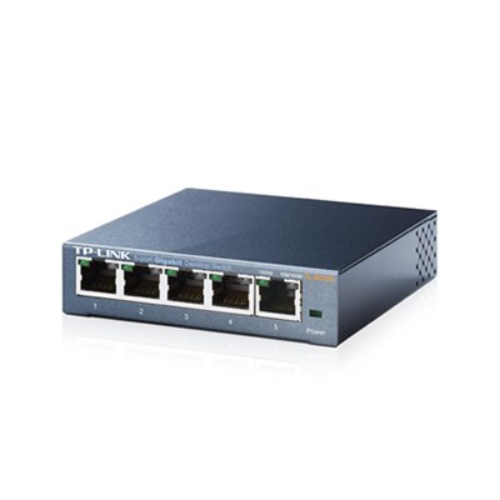

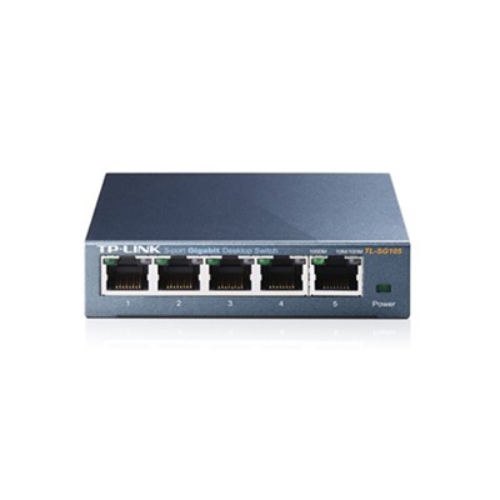

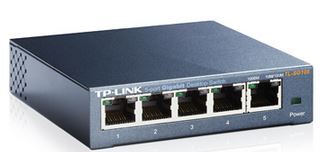

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case


5-Port 10/100/1000Mbps Desktop Switch

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Plug and play, no configuration needed

Supports 802.1p/DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop/wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption


HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) (100 x 98 x 25 mm)

Max Power Consumption 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation 7.83 BTU/h


PERFORMANCE

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 2K

Packet Buffer Memory 1 Mb

Jumbo Frame 16 KB


SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward


OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 °C (32“104 °F)

Storage Temperature: -40“70 °C (-40“158 °F)

Operating Humidity: 10“90% RH non-condensing

Storage Humidity: 5“90% RH non-condensing

Specifications
SKU NWTL-SG105
Barcode # 6935364021146
Brand TP-LINK
Shipping weight 1.0400kg
Shipping width 0.228m
Shipping height 0.192m
Shipping length 0.228m
Assembled length 1.280m
Assembled height 0.920m
Assembled width 1.280m

TP-Link TL-SG105 5port Switch DesktopGigabitSteel Case 5-Port 10 100 1000Mbps RJ45 Supporting Auto-MDI MDIX Plug and Play Fanless

$27.84
RRP $39.00 save 29%

or 4 payments of $6.96 with Learn more

In Stock
