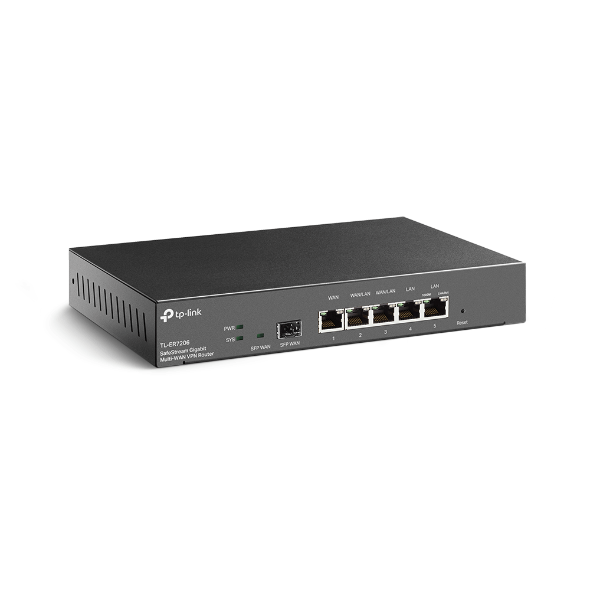

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

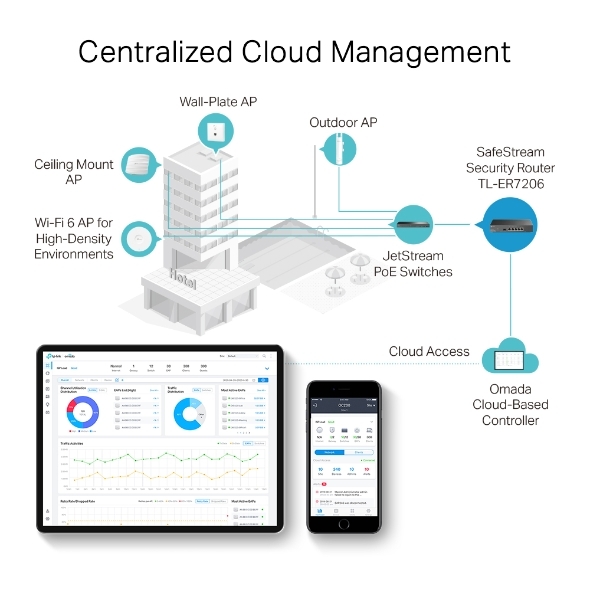

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

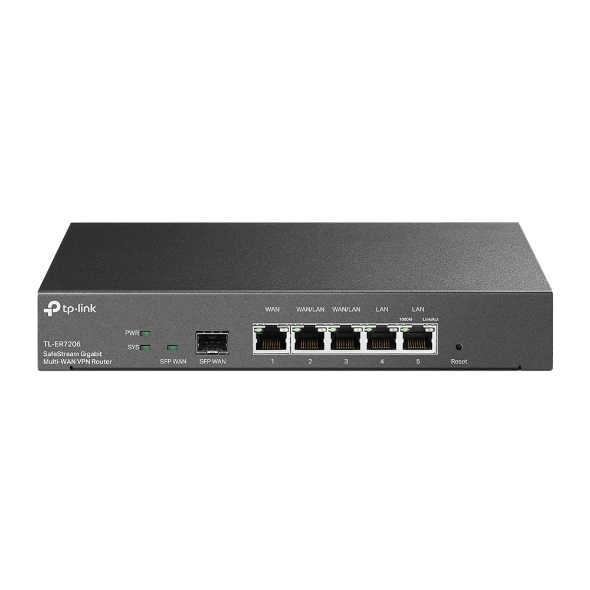

Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface 1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button

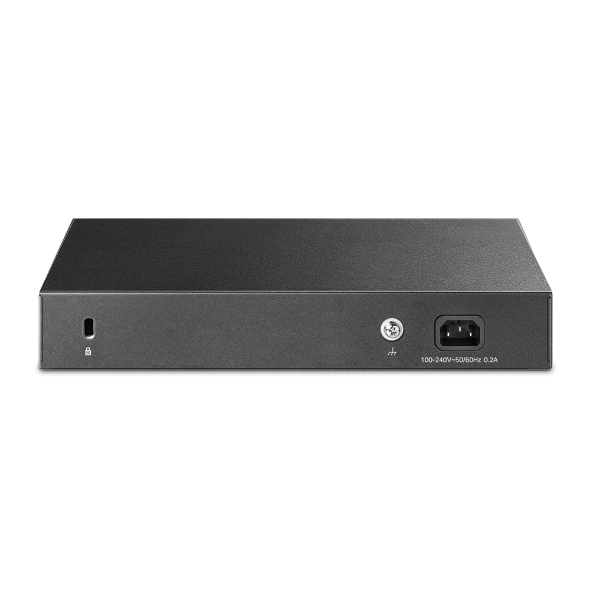

Power Supply 100“240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, Speed, Link/Act
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
SKU | NWTL-ER7206 |
Barcode # | 6935364072391 |
Brand | TP-LINK |
Shipping weight | 1.9800kg |
Shipping width | 0.328m |
Shipping height | 0.172m |
Shipping length | 0.390m |
Assembled length | 2.900m |
Assembled height | 0.720m |
Assembled width | 2.280m |
TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router 4 WAN Ports: 1 Gigabit SFP WAN port 1 Gigabit RJ45 WAN Port 2 Gigabit WAN LANOmada
