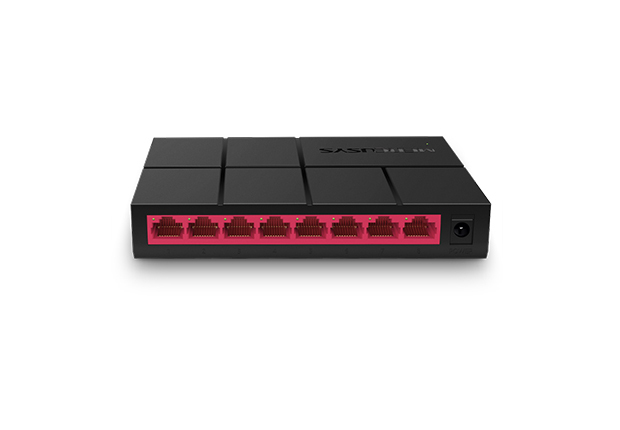

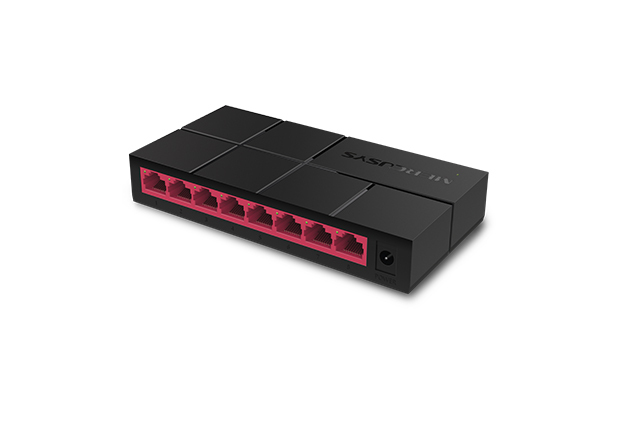

Mercusys MS108G 8-Port 10/100/1,000 Mbps Desktop Switch

Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported

Easily wired network expansion

Compact design for flexible arrangement

Plug and play setup, no configuration required

Green Ethernet technology saves power by up to 82%

Expand Ethernet Network with Gigabit Ports

Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports”10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

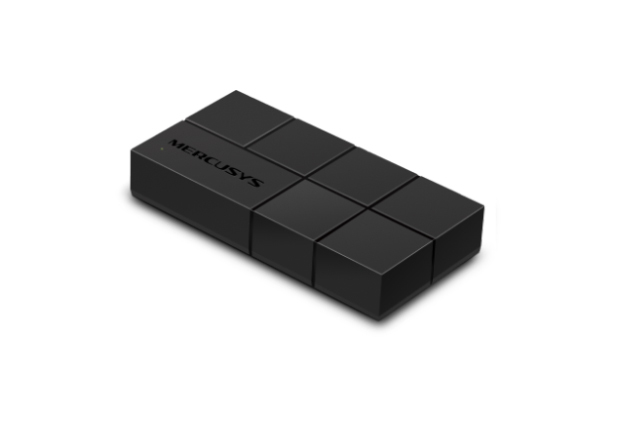

Cool, Ultra-Compact Design

A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

Plug and Play

Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Go Green with Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Interfaces 8 10/100/1000Mbps Ports, Auto-Negotiation,

Auto-MDI/MDIX

LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

External Power Supply 9V/0.6A

Dimensions (W X D X H) 127 x 60.3 x 22 mm

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates 10/100/1000Mbps at Half Duplex

20/200/2000Mbps at Full Duplex

Buffer Capacity 64KB

Jumbo Frame 9KB

Transfer Method Store and Forward
