POSTAGE

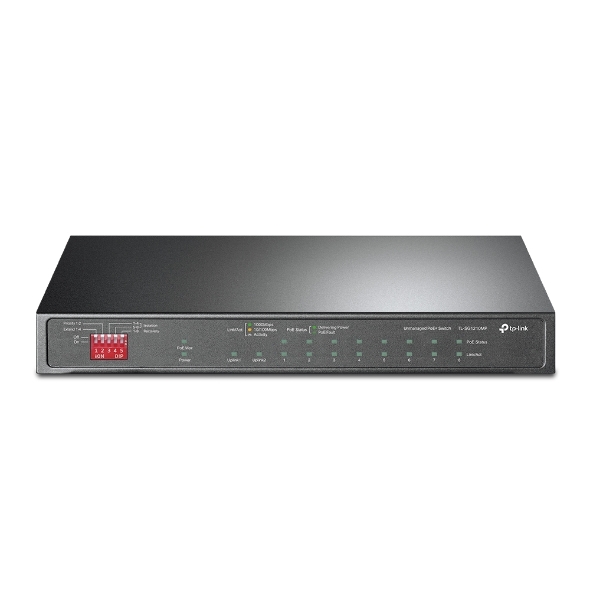

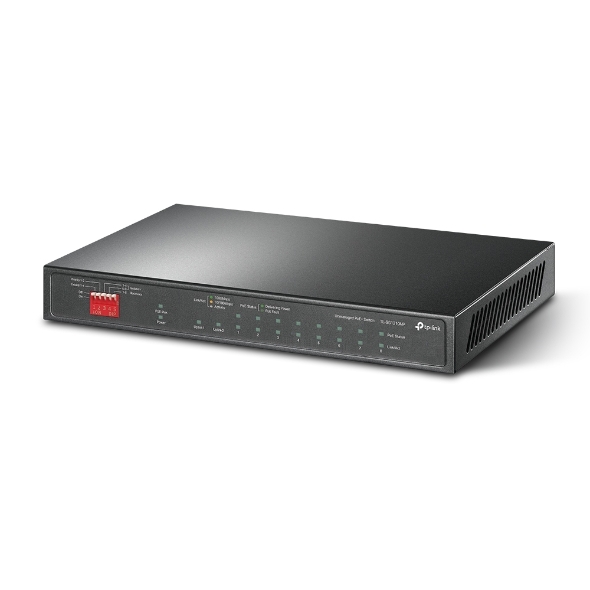

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

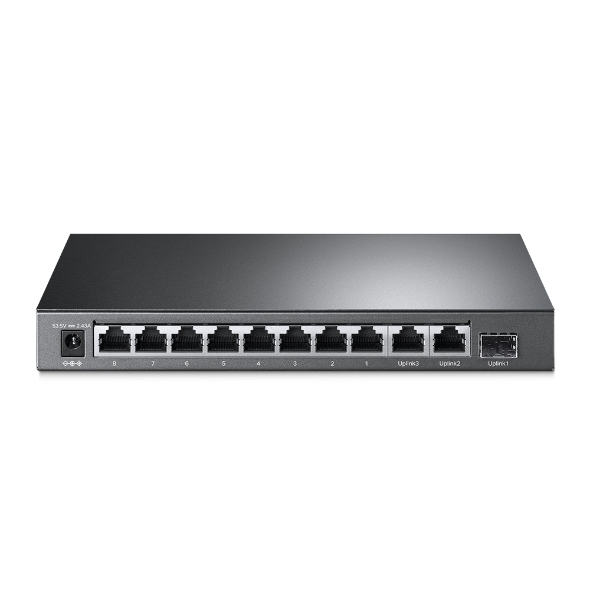

9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1“2 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location
HARDWARE FEATURES
Interface 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1“8
Power Supply: 123 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption 7.93 W (220V / 50Hz with no PD connected)
141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation 27.04 BTU/h (220V / 50Hz with no PD connected)
482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1“4, Up to 250 m PoE power supply and data tra
SKU | NWTL-SG1210MP |
Barcode # | 6935364052683 |
Brand | TP-LINK |
Shipping weight | 2.2000kg |
Shipping width | 0.342m |
Shipping height | 0.172m |
Shipping length | 0.416m |
Assembled length | 3.160m |
Assembled height | 0.720m |
Assembled width | 2.420m |
TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoEPORT: 8 Gigabit PoE Ports 2x Gigabit Non-PoE Ports 1 Combo Gigabit SFP SlotS
or 4 payments of $46.40 with Learn more
Product Information
SKU:
NWTL-SG1210MP
Brand:
TP-LINK
Barcode #:
6935364052683
Shipping Weigth:
2.2000kg
