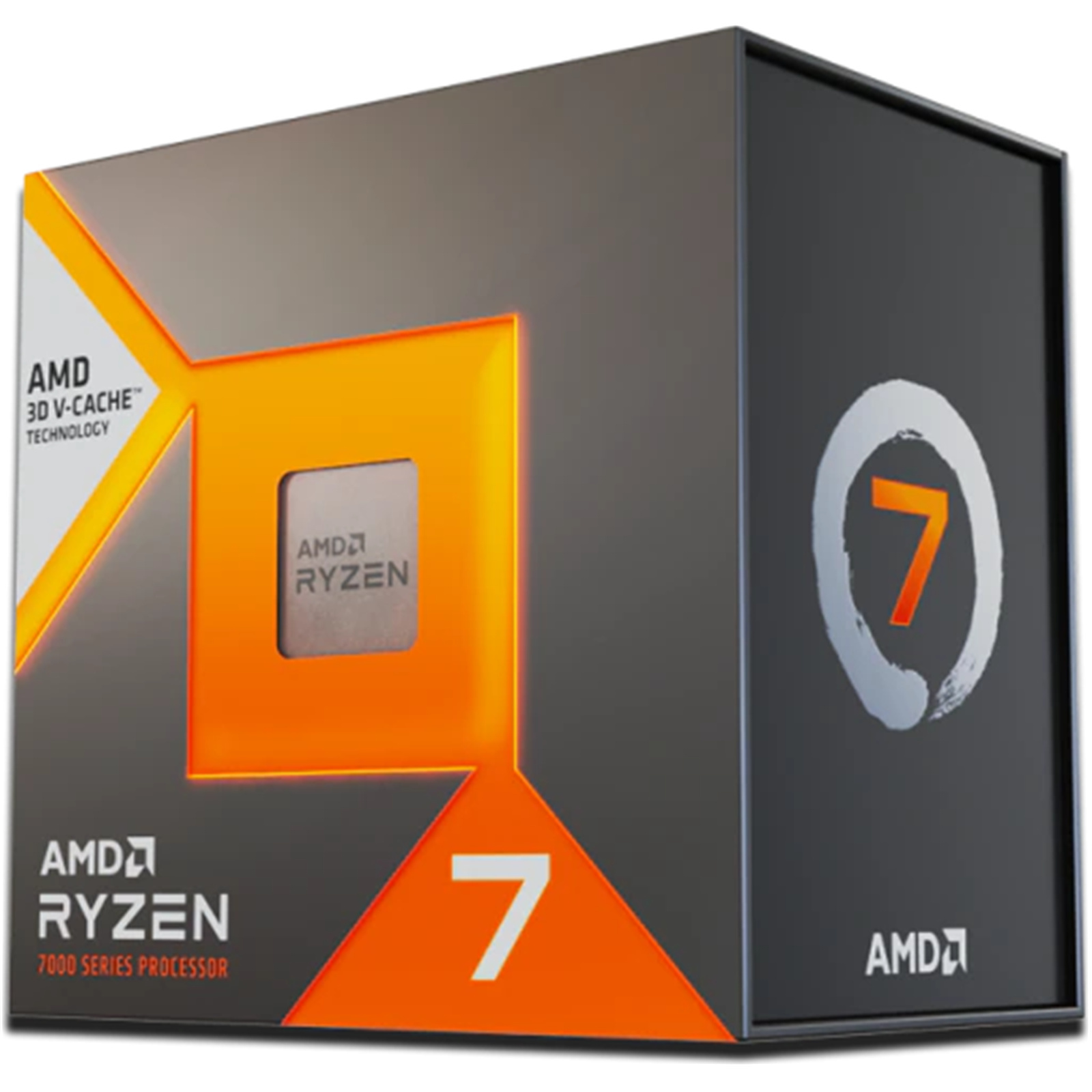

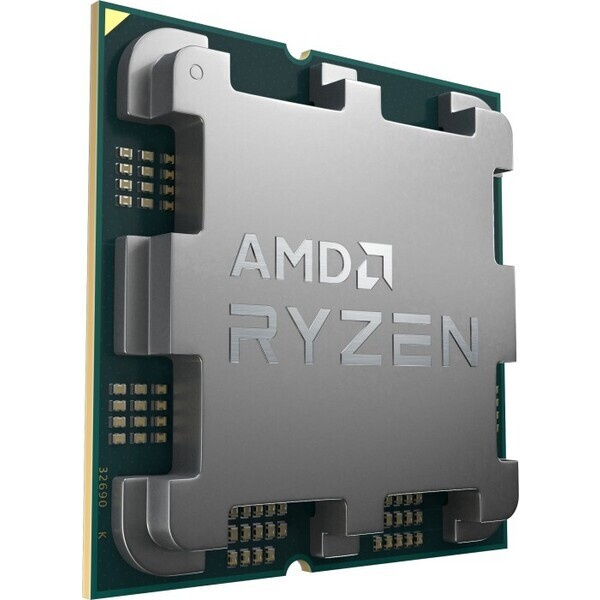

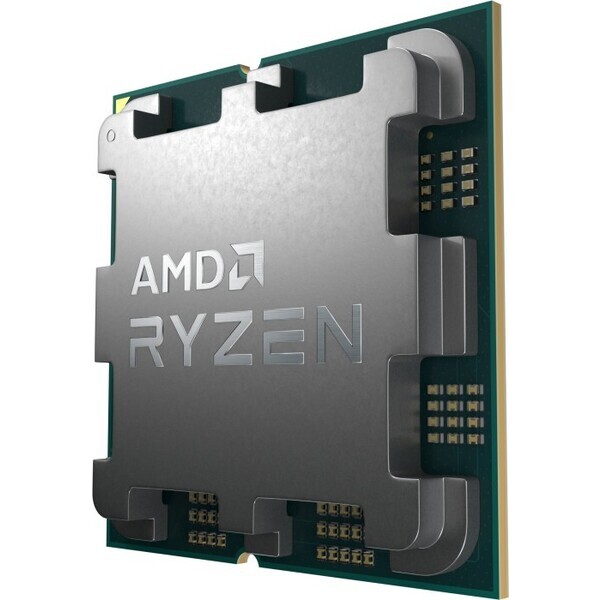

AMD Ryzen 7 7800X 3D, without cooler (AM5) (Ryzen7000) (AMDCPU)

FEATURES:

Supported Technologies

AMD EXPO„ Technology

AMD Ryzen„ Technologies

SPECIFICATIONS:

Platform Desktop

Market Segment Enthusiast Desktop

Product Family AMD Ryzen„ Processors

Product Line AMD Ryzen„ 7 Processors

AMD PRO Technologies No

Consumer Use Yes

Regional Availability Global

Former Codename 'Raphael AM5'

Architecture 'Zen 4'

# of CPU Cores 8

Multithreading (SMT) Yes

# of Threads 16

Max. Boost Clock Up to 5.0GHz

Base Clock 4.2GHz

L1 Cache 512KB

L2 Cache 8MB

L3 Cache 96MB

Default TD 120W

Processor Technology for CPU Cores TSMC 5nm FinFET

Processor Technology for I/O Die TSMC 6nm FinFET

CPU Compute Die (CCD) Size 71mm²

I/O Die (IOD) Size 122mm²

Package Die Count 2

AMD EXPO„ Memory Overclocking Technology Yes

Precision Boost Overdrive Yes

Curve Optimizer Voltage Offsets Yes

AMD Ryzen„ Master Support Yes

CPU Socket AM5

Supporting Chipsets X670E X670 B650E B650

CPU Boost Technology

Precision Boost 2

Instruction Set x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

Not included

Max. Operating Temperature (Tjmax)

89°C

Launch Date

4/6/2023

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

1

Native SATA Ports

0

PCI Express Version

PCIe 5.0

Native PCIe Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

128GB

System Memory Subtype

UDIM
