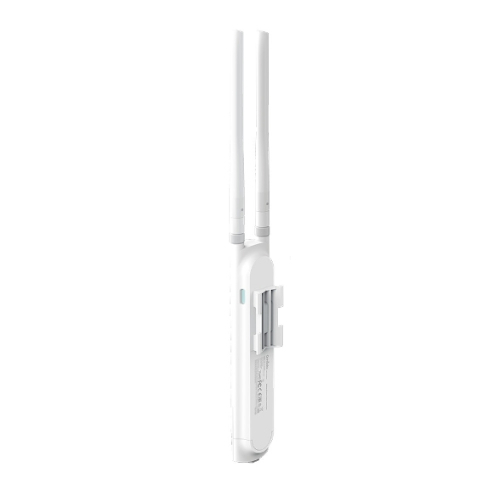

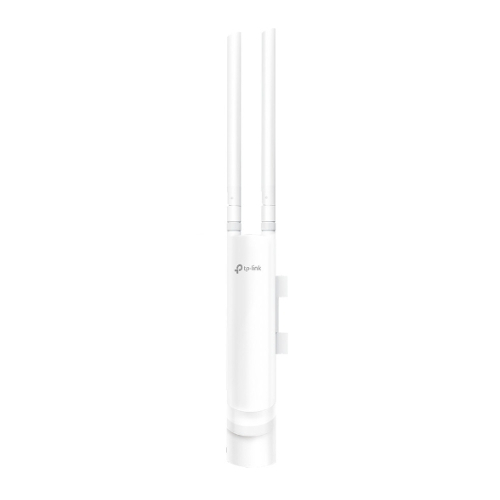

TP-Link EAP110 Outdoor 300Mbps Wireless N Outdoor Access Point 1xRJ45 Passive PoE 2*5dBi External Omni waterproof Antenna Pole/Wall Mounting


Built for outdoor Wi-Fi applications

Up to 300Mbps Wi-Fi with 2x2 MIMO technology

High transmission power and high gain antennas provide a long-range coverage area

Durable, weatherproof enclosure to withstand fair and foul weather

Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation

Free Auranet Controller Software lets administrators easily manage hundreds of EAPs

Captive portal provides a convenient method for guest authentication


HARDWARE FEATURES

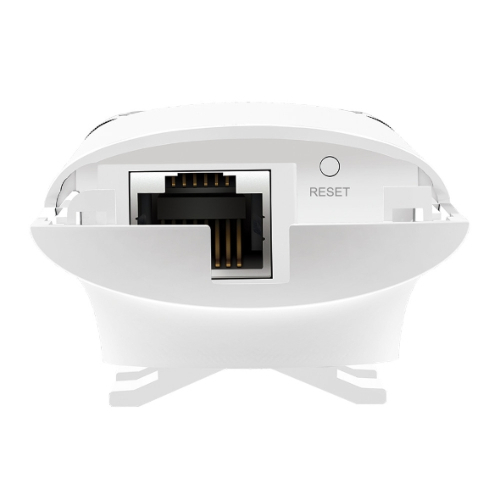

Interface Fast Ethernet (RJ-45) Port *1(Support Passive PoE)

Button Reset

Power Supply 24VDC / 0.6A Passive PoE Supply

Power Consumption 6.3 W

Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)

Antenna Type 2*5dBi External Omni waterproof

Mounting Pole / Wall Mounting (Kits included)

Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11n/g/b

Frequency 2.4GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Transmit Power CE:

<20dBm

FCC:

<27dBm

Wireless Functions Multiple SSIDs(Up to 8 SSIDs)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

Specifications
SKU NWTL-EAP110-OUTDOOR
Barcode # 6935364097752
Brand TP-LINK
Shipping weight 1.1600kg
Shipping width 0.242m
Shipping height 0.200m
Shipping length 0.372m
Assembled length 2.720m
Assembled height 1.000m
Assembled width 1.420m
