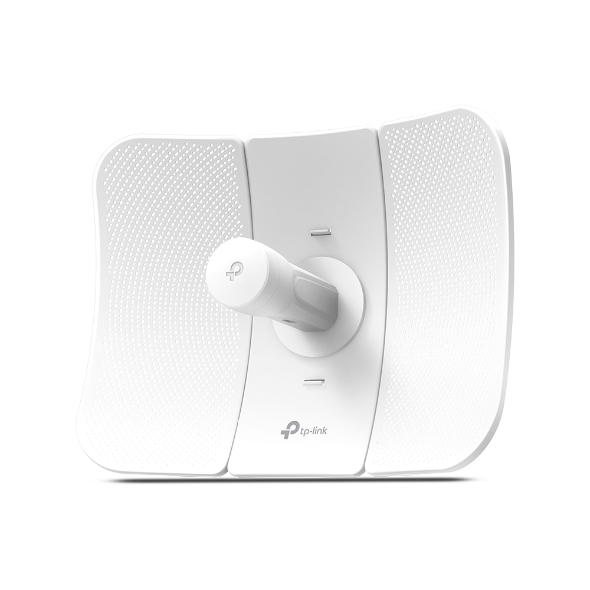

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
802.11ac for up to 867Mbps on 5GHz wireless data rate
23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation

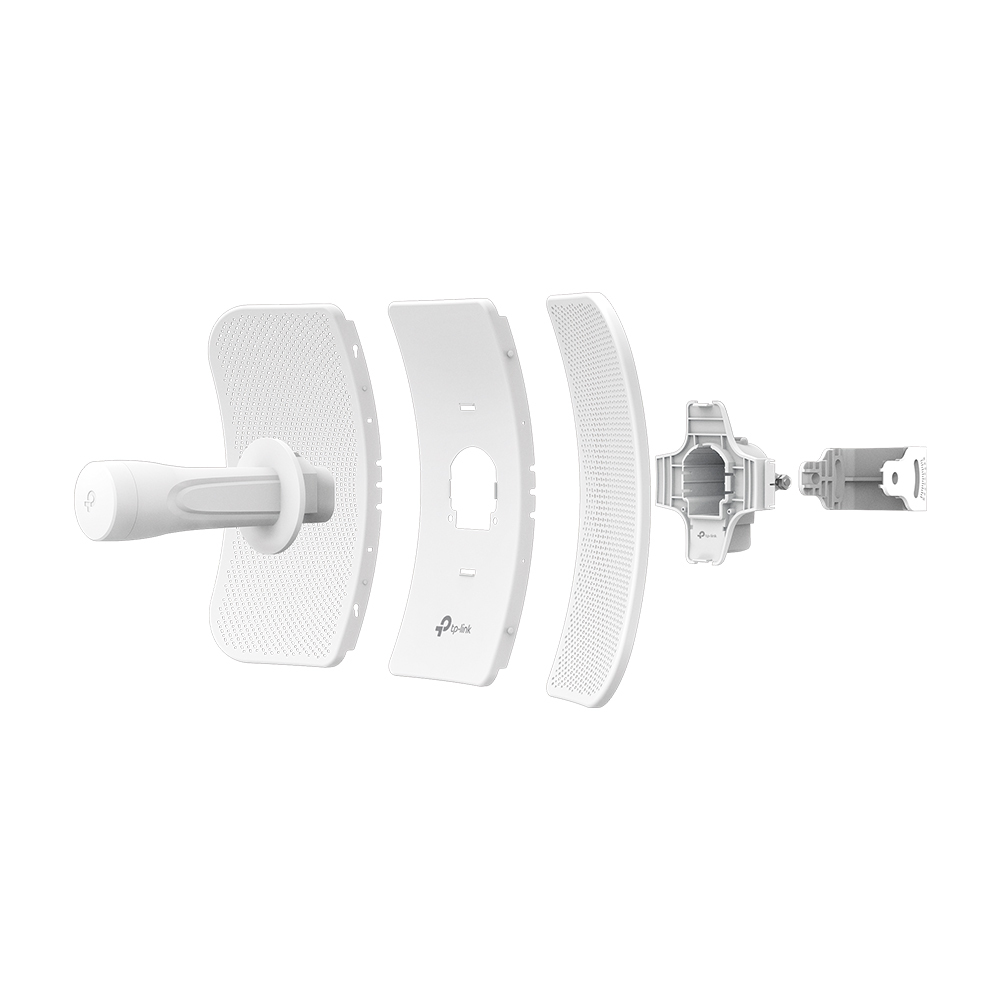

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15~5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×29.7 mm
SKU | NWTL-CPE710 |
Barcode # | 6935364089702 |
Brand | TP-LINK |
Shipping weight | 2.3000kg |
Shipping width | 0.258m |
Shipping height | 0.236m |
Shipping length | 0.430m |
Assembled length | 3.300m |
Assembled height | 1.360m |
Assembled width | 1.580m |
TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE IP65 Weather Proof Lightning Protection Passive POE Centralised Management
or 4 payments of $40.60 with Learn more
Product Information
SKU:
NWTL-CPE710
Brand:
TP-LINK
Barcode #:
6935364089702
Shipping Weigth:
2.3000kg
Warranty:
36
