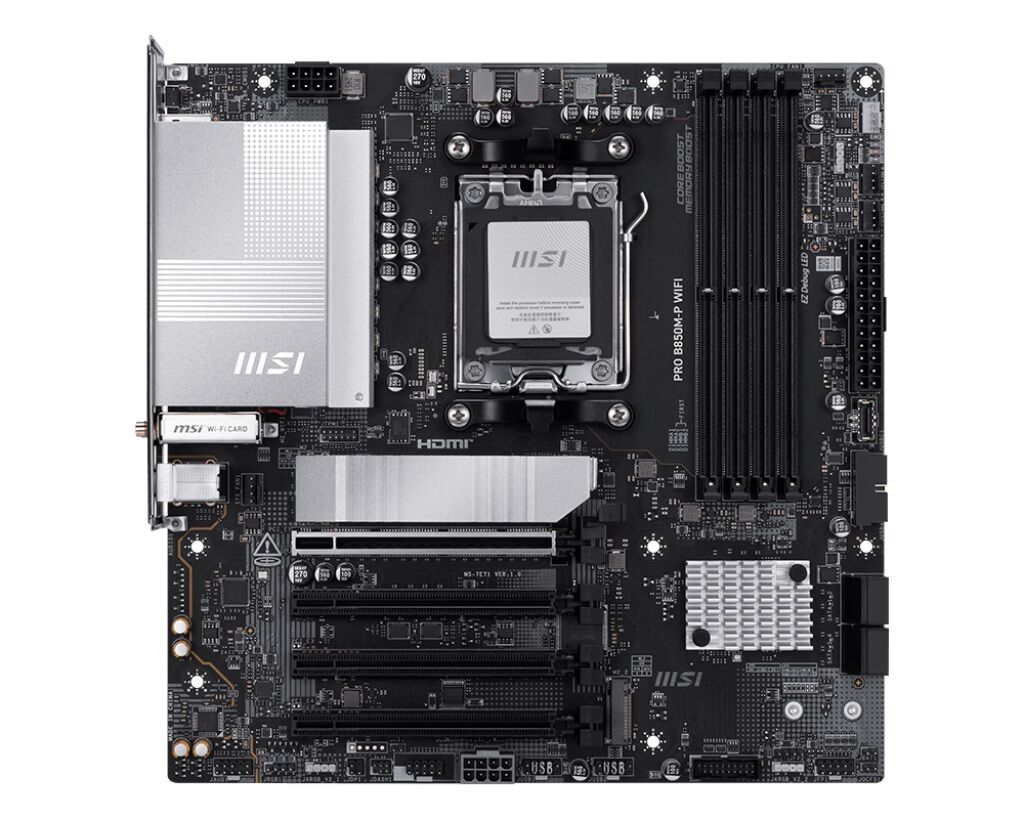

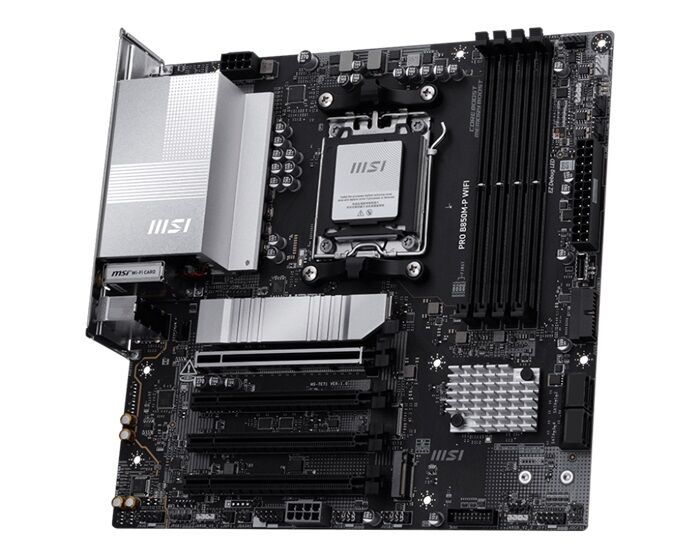

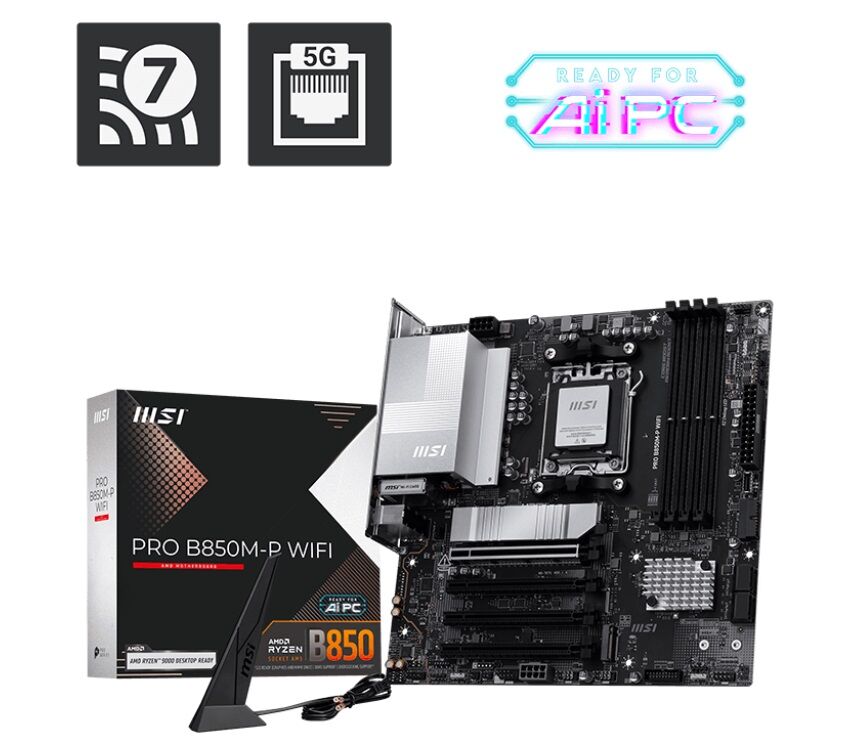

MSI MAG B850M-P WIFI, AM5, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16 slot, 3x M.2,4x USB2.0, 3x USB C, Wi-Fi 7

SPECIFICATIONS

Model Name

PRO B850M-P WIFI

CPU Support

Supports AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

CPU

Socket Socket AM5

Chipset

AMD B850 Chipset

Expansion Slots

1 x PCIe 5.0 x16 slot

3 x PCIe 3.0 x1 slots

Display Interface

Support 4K 60Hz as specified in HDMI„ 2.1,

DisplayPort 1.4 “ Requires Processor Graphics

Memory Support

4 DIMMs, Dual Channel DDR5 “ 8200 MT s (OC)

Storage

1 x M.2 Gen5 x4 128Gbps slot,

1 x M.2 Gen4 x4 64Gbps slot,

1 x M.2 Gen4 x2 32Gbps slot,

4 x SATA 6Gbps ports

USB ports

3 x USB 10Gbps (1 Type-A 2 Type-C),

6 x USB 5Gbps (6 Type-A)

8 x USB 2.0

LAN

Realtek 8126 5G LAN

WiFi BT

Wi-Fi 7 Solution, Bluetooth 5.4

Audio

8-Channel (7.1) HD Audio with Audio Boost

FEATURES

Wi-Fi 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap

forward with multiple improvements to meet the traffic demand

brought and the growing number of wireless devices.

5G Network Solution

Featuring premium 5G LAN to deliver better network experience.

EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2

SSD and Shield Frozr much easier

Triple M.2 Connectors

Onboard 3x M.2 connectors with PCIe 4.0 solution, strengthened

by M.2 Shield Frozr.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest

DDR5 memory and MSI Memory Boost technology.

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB s bandwidth for

maximum transfer speed.

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures

even high-end processors to run in full speed.

Pre-installed I O Shielding

Better EMI protection and more convenience for installation

Frozr AI Cooling

Detect CPU GPU temperatures and automatically adjust system

fan duty to a proper value.
