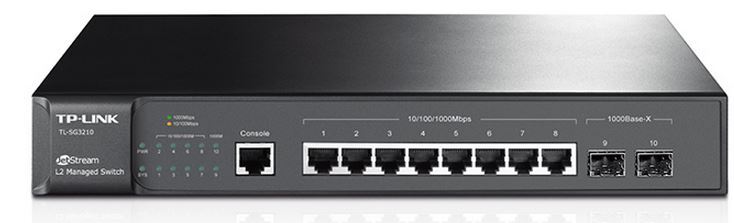

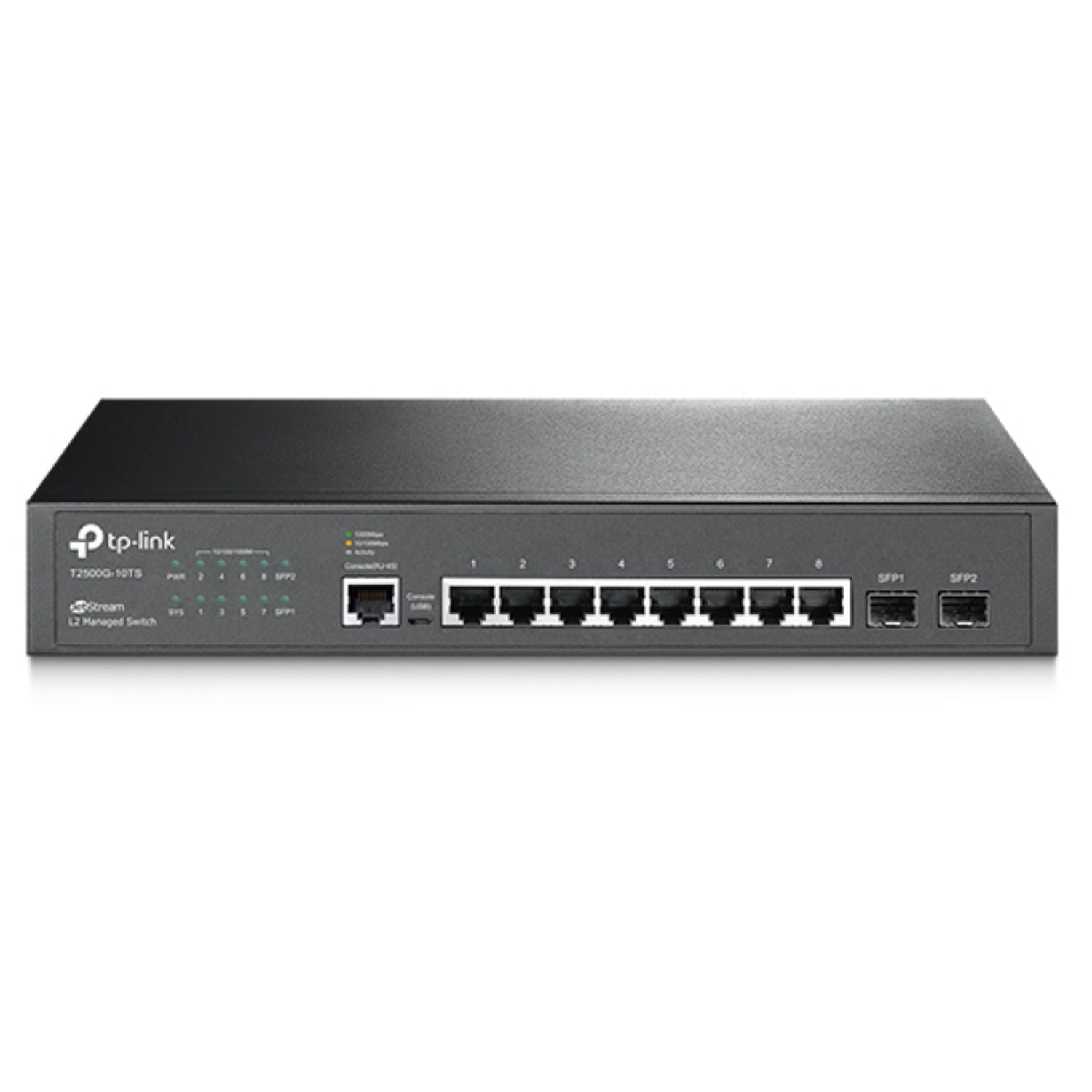

TP-Link SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots


IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies

L2/L3/L4 QoS and IGMP snooping optimize voice and video application

WEB/CLI managed modes, SNMP, RMON bring abundant management features


HARDWARE FEATURES

Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,

IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,

IEEE 802.1x,IEEE 802.1p

Interface 8 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

2 1000Mbps SFP Slots

1 Console Port

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity Fanless

Power Supply 100~240VAC, 50/60Hz

Power Consumption Maximum: 10.7W (220V/50Hz)

Dimensions ( W x D x H ) 11.6*7.9*1.7in. (294*200*44 mm)

PERFORMANCE

Bandwidth/Backplane 20Gbps

Packet Forwarding Rate 14.9Mpps

MAC Address Table 8k

Packet Buffer Memory 4Mb

Jumbo Frame 10240 Bytes

SOFTWARE FEATURES

Quality of Service Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 Features IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

Port isolation

BPDU filtering/guard

TC/Root protect

Loop back detection

802.3x Flow Control

VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port/ MAC/Protocol-based VLAN

GARP/GVRP

Management VLAN configuration

Access Control List L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;

Time Range Based

Security IP-MAC-Port-VID Binding

IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP

Specifications
SKU NWTL-SG3210
Barcode # 6935364006396
Brand TP-LINK
Shipping weight 2.6000kg
Shipping width 0.184m
Shipping height 0.350m
Shipping length 0.506m
Assembled length 4.060m
Assembled height 2.500m
Assembled width 0.840m
