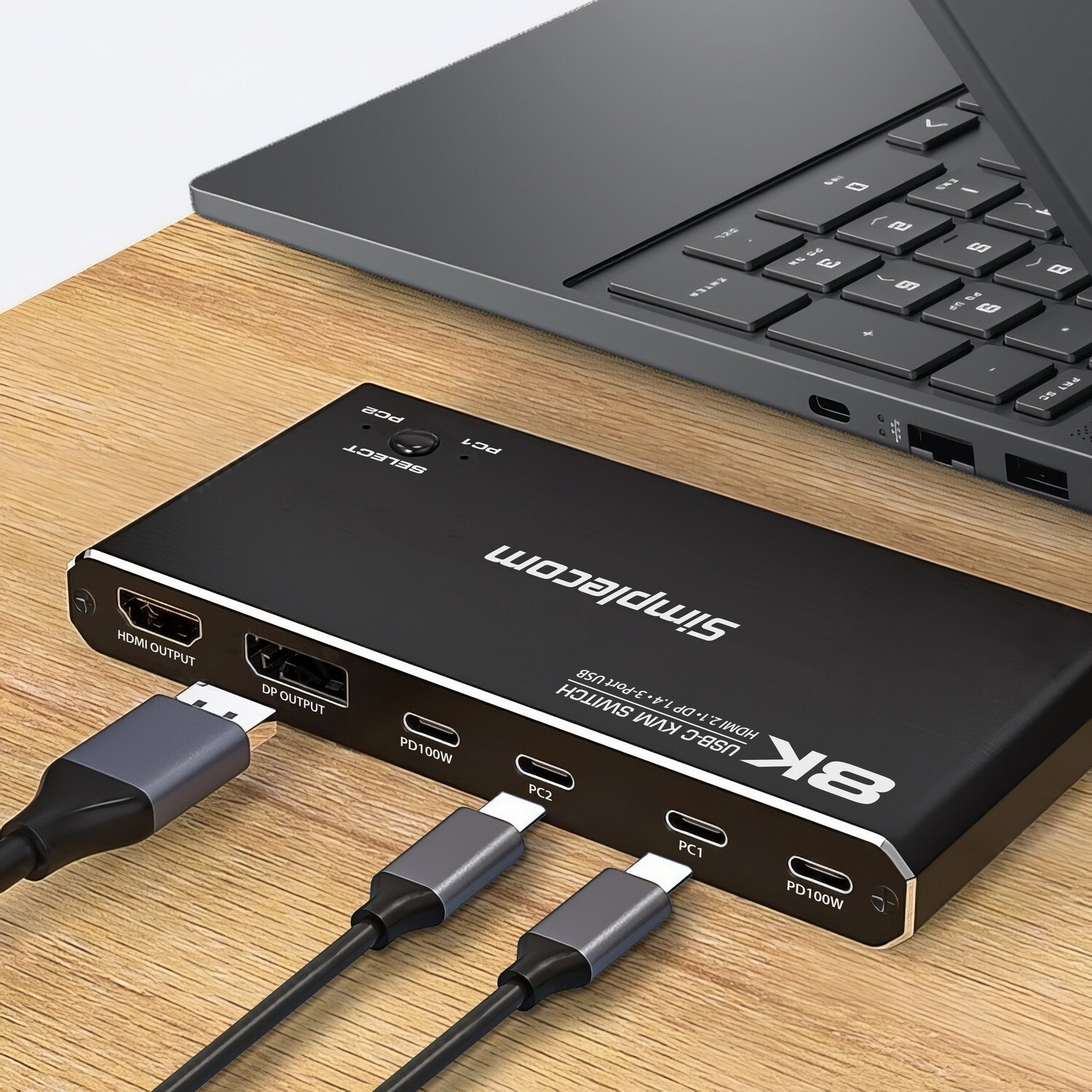

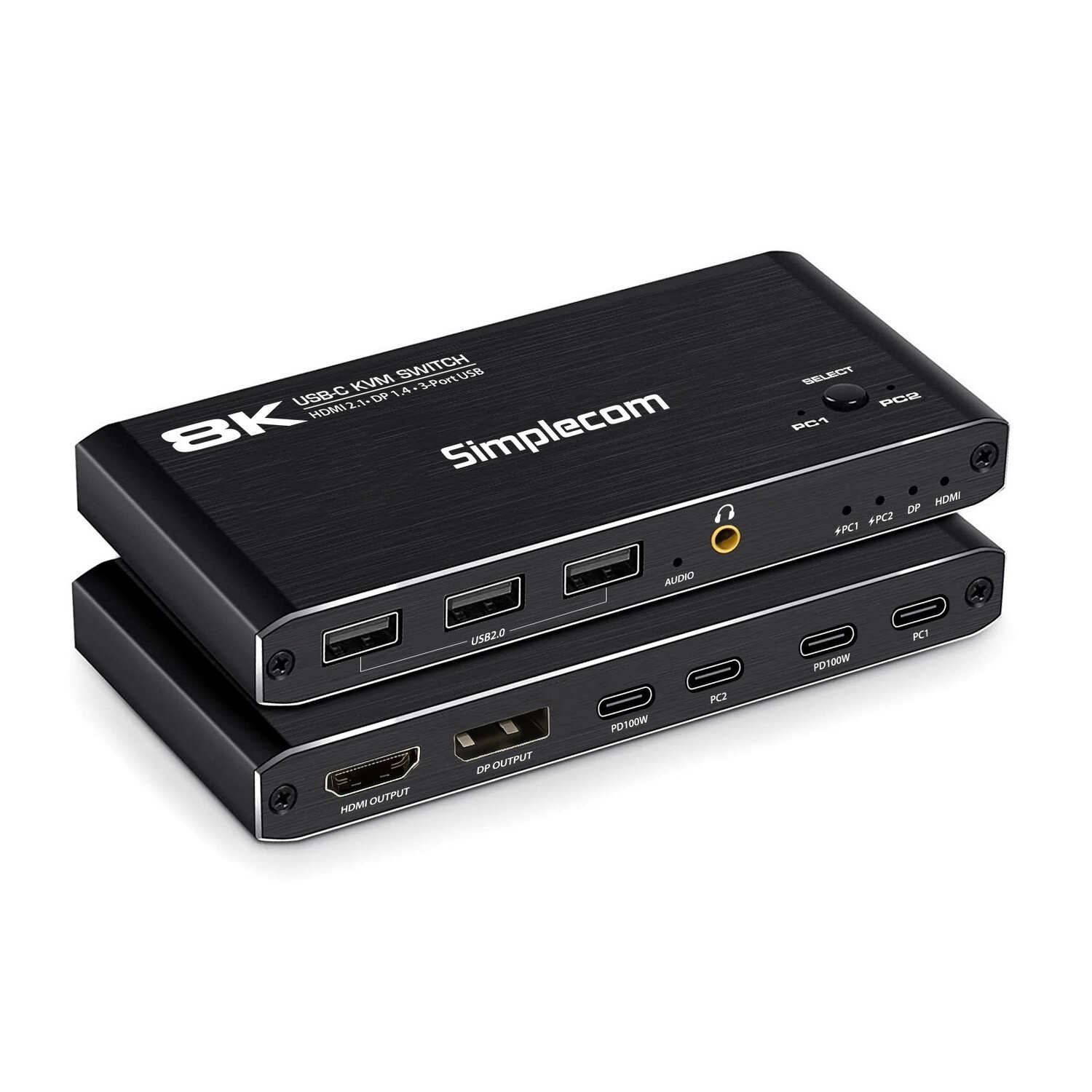

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet

Features

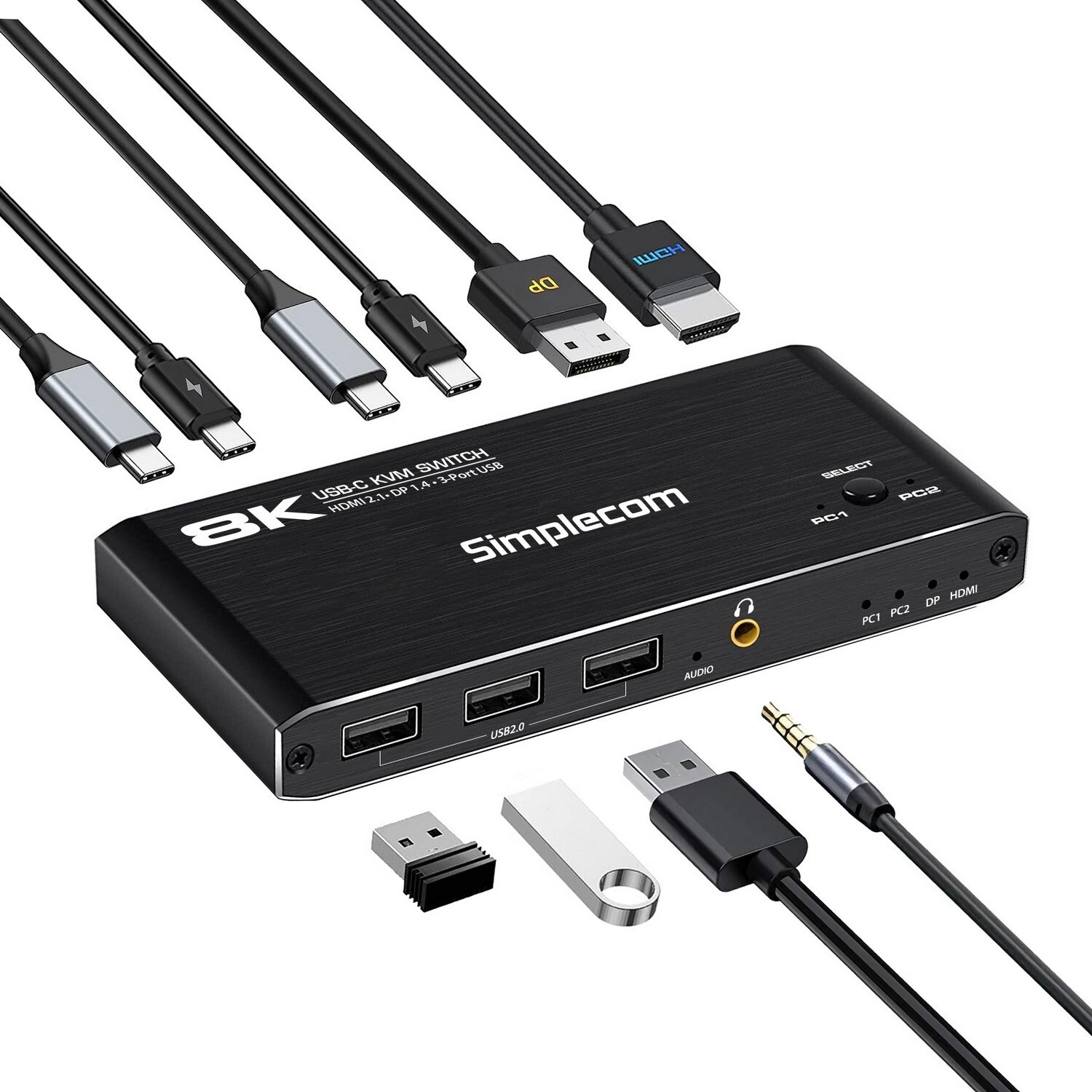

USB-C KVM switch allows two laptops to share external display and USB devices

Intergraded USB-C docking station, single USB-C cable for Video, Data and PD charging

With both DisplayPort and HDMI output ports for TV or monitors

3-Port USB 2.0 hub for connecting mouse, keyboard, printer and more

3.5mm audio jack for connecting headphones or speakers

Two PD charging ports allow charging for both laptops simultaneously

HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K

Backward compatible with HDMI 2.0 and HDMI 1.4

Easy to use by pressing the toggle button on the KVM switch

Self-powered via connected laptop, no external power required

Plug and play and hot swappable

Durable aluminium alloy casing, also efficiently dissipate heat

LED light indicating the active computer and PD charging

Specifications

Model: KM470

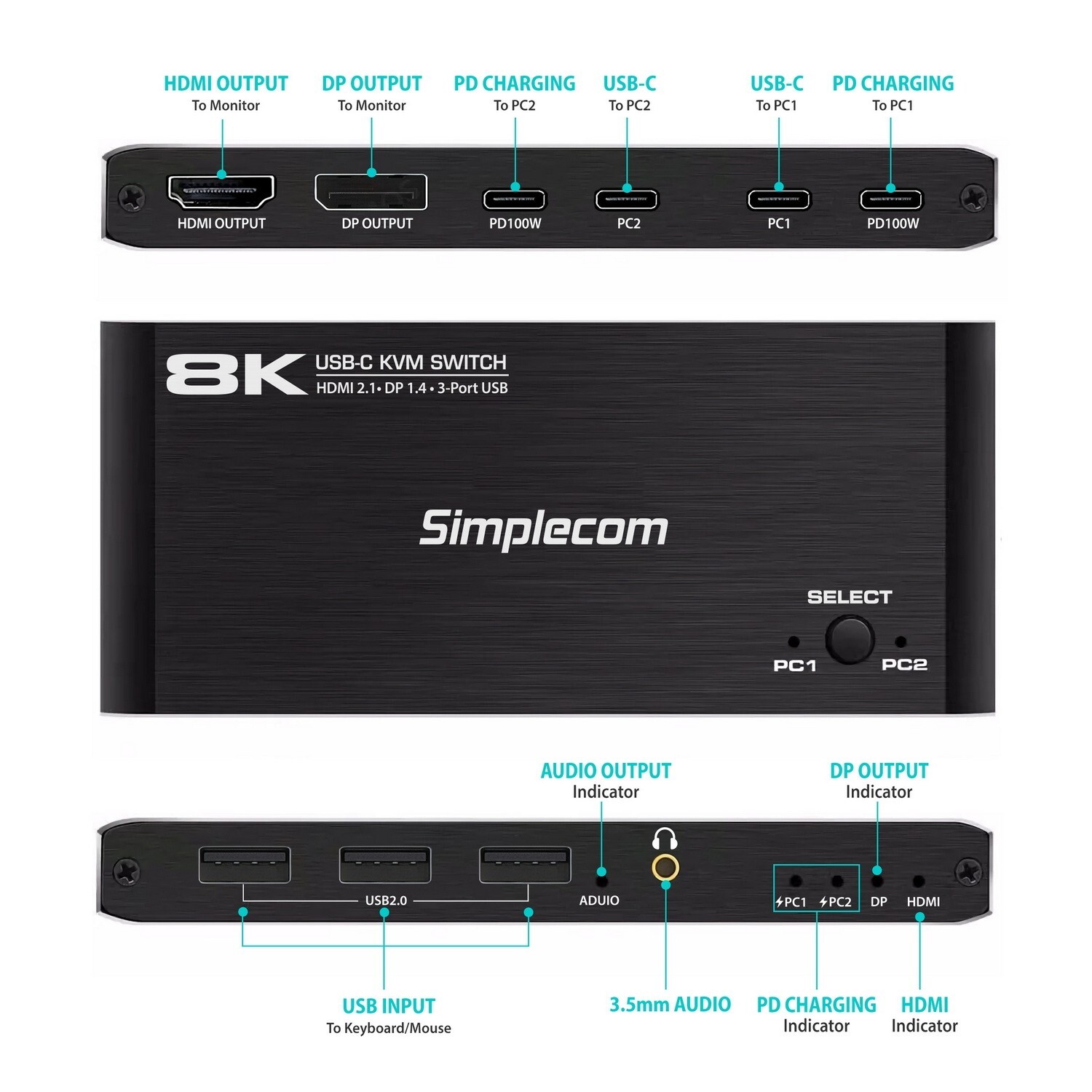

USB Upstream Ports: USB-C x2 (Connect to PC1 and PC2)

USB Downstream Ports: USB 2.0 x3 (Connect USB peripherals)

PD Charing Port: USB-C x2 (up to 100W on each port)

Video Output: HDMI 2.1 x1, DP 1.4 x1

USB Max Bandwidth: HighSpeed 480Mbps

HDMI Max Bandwidth: 48Gbps

DP Max Bandwidth: 32.4Gbps

Video Resolution: 1080p@60/120/165Hz, 4K@60/120/144Hz (DSC), 8K@30/60Hz(DSC)

Audio Output: 3.5mm audio jack (sound output only)

Operating Temperature: 0 to 50°C

Dimension (L x W x H): 13 x 6.3 x 1.6mm

Weight: 109g

Operating System Support: Windows, MacOS, Chrome OS

Package Contents

1x USB-C KVM Switch

2x USB-C to USB-C Cables

System Requirements

Laptop or mobile device with full functional USB-C port that supports DP Alt Mode (DisplayPort Alternate Mode)

Laptop with Thunderbolt 3, Thunderbolt 4, USB4 port

Important Note
