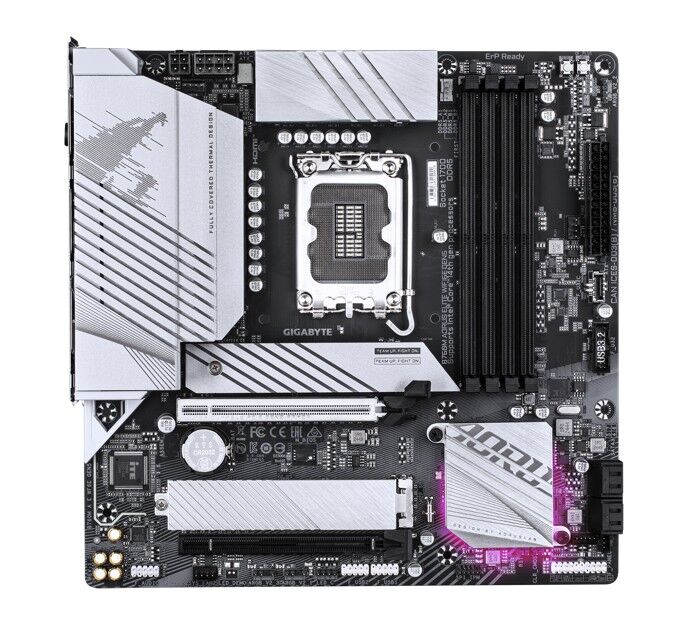

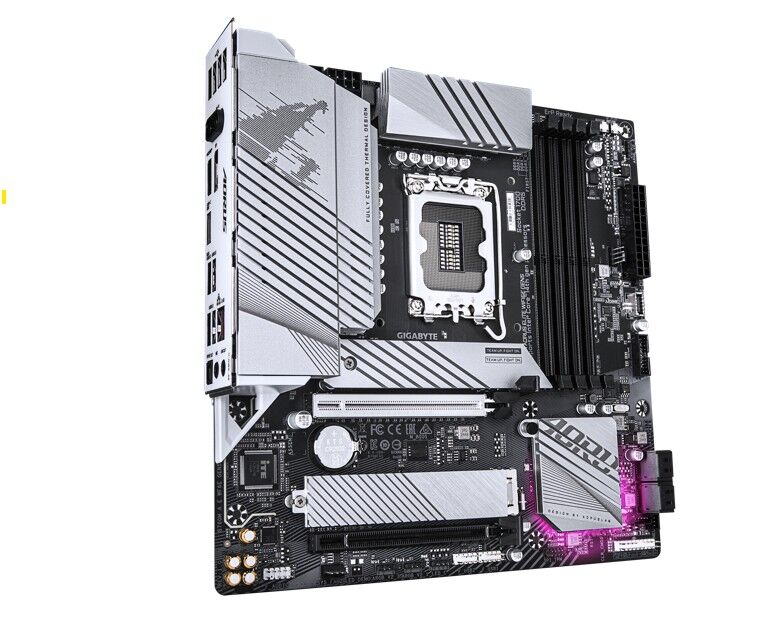

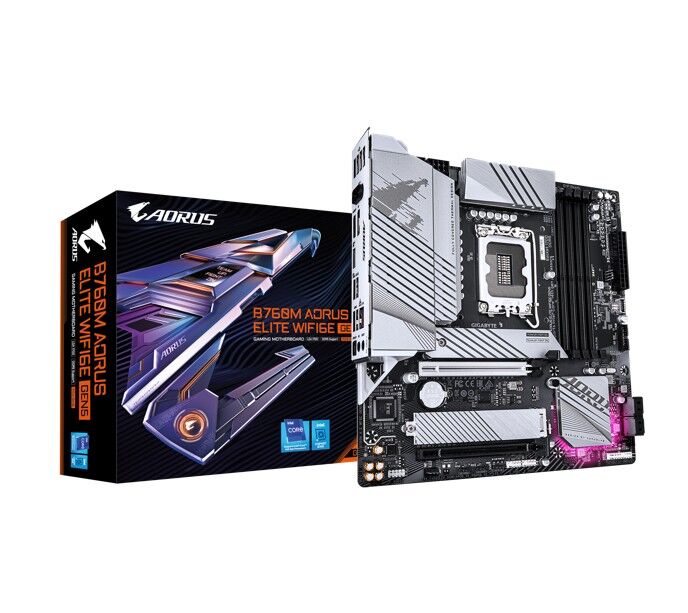

Gigabyte B760M AORUS ELITE WIFI6E GE Intel LGA 1700 mATX Motherboard, 4x DDR5 ~256GB, 2x PCI-E x16, 2x M.2, 4x SATA, 8x USB 3.2, 8x USB 2.0

FEATURES:

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel Core„ 14th 13th 12th processors

Efficient Thermal : VRM Thermal Armor Advanced M.2 Thermal Guard

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal

EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

EZ-Latch Plus : M.2 Connectors with Quick Release Screwless Design

PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Twin 1211 Phases Hybrid VRM Solution

Dual Channel DDR5 : 4DIMMs with XMP Memory Module Support

Fast Networks : 2.5GbE LAN Wi-Fi 6E 802.11ax

Extended Connectivity : Rear USB-C 20Gb s, Front USB-C 10Gb s, DP, HDMI

Next Generation Storage : 2PCIe 4.0 x4 M.2 Connectors

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

High-Res Audio : ALC1220 High-End Audio Capacitors

SPECIFICATIONS:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core„,Pentium Gold and Celeron Processors

L3 cache varies with CPU

Memory

14th and 13th Generation Intel Core„ i9 i7 Pocessors:

- Support for DDR5 5600 5200 4800 4400 MT s memory modulesjk

13th Generation Intel Core„ i5 i3 and 12th Generation Intel Core„, Pentium Gold and Celeron Processors:

- Support for DDR5 4800 4400 MT s memory modulesjk

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryjk

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz

Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4 x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

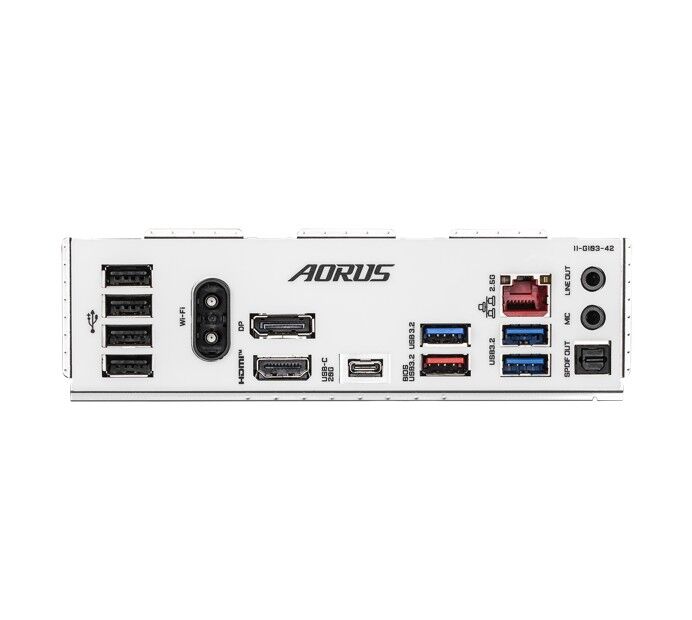

Back Panel Connectors

2 x antenna connectors (2T2R)

1 x USB Type-C port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0 1.1 ports

1 x HDMI port (Note)

1 x DisplayPort (Note)

1 x RJ-45 port

1 x optical S PDIF Out connector

2 x audio jacks

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor 24.4cm x 24.4cm
