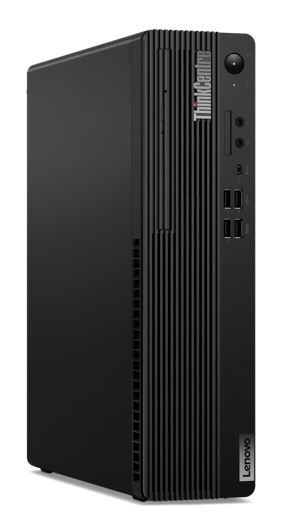

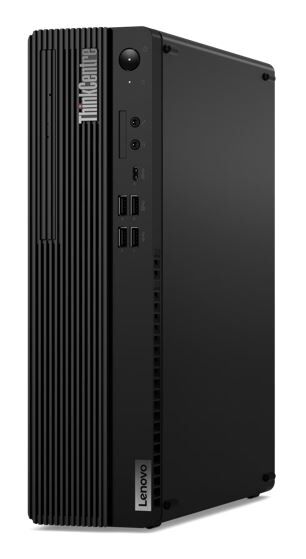

LENOVO ThinkCentre M70s G5 SFF Desktop PC i7-14700 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Ethernet RJ-45 LAN UHD Graphics Keyboard Mouse

PERFORMANCE

Processor Intel Core„ i7-14700, 20C (8P 12E) 28T, Max Turbo up to 5.4GHz, P-core 2.1 5.3GHz, E-core 1.5 4.2GHz, 33MB

Graphics Integrated Intel UHD Graphics 770

Chipset Intel Q670 Chipset

Memory 2x 8GB UDIMM DDR5-5600

Memory Slots Two DDR5 UDIMM slots, dual-channel capable

Max Memory Up to 64GB DDR5

Storage 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

Storage Support Up to three drives, 1x 3.5 ft HDD 1x 2.5 ft HDD 1x M.2 SSD 3.5 ft HDD up to 2TB 2.5 ft HDD bay is only for customer self upgrade M.2 SSD up to 2TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC623-CG codec

Speakers 1Wx1

Power Supply 260W 90pct

DESIGN

Keyboard USB Traditional Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Optional Bay None

Expansion Slots One PCIe 3.0 x16, low-profile, length ‰¤ 155mm, height ‰¤ 70mm

One PCIe 3.0 x1, low-profile, length ‰¤ 155mm, height ‰¤ 70mm

Two M.2 slots (one for WLAN, one for SSD)

Case Color Black

Stand None

Dust Filter None

Pen Pen Not Supported

Form Factor SFF (8.2L)

Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)

Weight Around 5.3 kg (11.7 lbs)

CONNECTIVITY

Ethernet Integrated 100 1000M

WLAN Bluetooth Intel Wi-Fi 6 AX201, 802.11ax 2x2 BT5.2

WWAN Non-WWAN

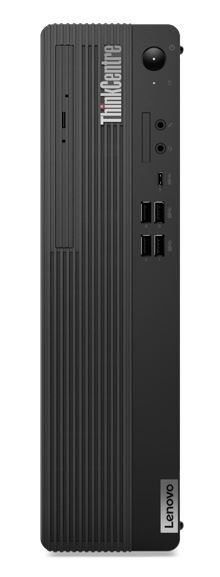

Front Ports 1x USB-C (USB 5Gbps USB 3.2 Gen 1), with 15W charging

4x USB-A (USB 5Gbps USB 3.2 Gen 1)

1x headphone microphone combo jack (3.5mm)

1x microphone (3.5mm)

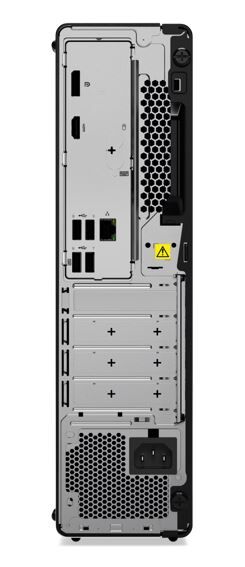

Rear Ports 4x USB-A (Hi-Speed USB USB 2.0)

1x HDMI 2.1 TMDS

1x DisplayPort„ 1.4a (HBR2, DSC)

1x Ethernet (RJ-45)

Optional Rear Ports (configured) None

SECURITY PRIVACY

Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader No fingerprint reader

Physical Locks Kensington Security Slot„, 3 x 7 mm

Padlock Loop

Smart Cable Clip None

Chassis E-Lock None

Chassis Intrusion Switch None

MANAGEABILITY

System Management Non-vPro

SERVICE

Base Warranty 3-year,

Included Upgrade None

CERTIFICATIONS

Green Certifications ENERGY STAR 8.0

EPEAT„ Gold Registered

ErP Lot 3

GREENGUARD

RoHS compliant

TCO Certified 9.0

Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
