Description

Output

Output power capacity: 500 Watts / 750 VA

Max Configurable Power (Watts): 500 Watts / 750 VA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages: 220, 240

Topology: Line Interactive

Waveform type: Sine wave

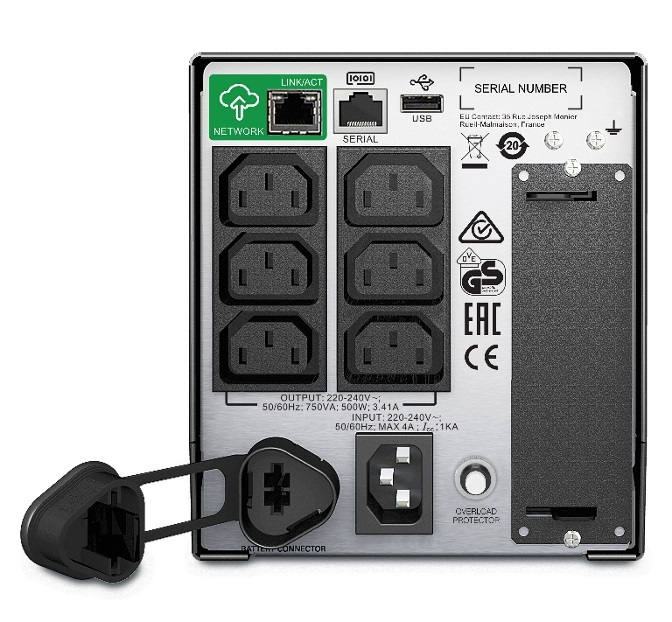

Output Connections: (6) IEC 320 C13 (Battery Backup)

Transfer Time: 4ms typical: 8ms maximum


Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Cord Length: 1.83 meters

Input voltage range for main operations: 160 - 280 V

Input voltage adjustable range for mains operation: 151 - 302 V

Number of Power Cords: 1

Other Input Voltages: 220, 240


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: RBC48

RBC Quantity: 1

Battery Volt-Amp-Hour Capacity: 146

Runtime: View Runtime Graph View Runtime Chart

Efficiency: View Efficiency Graph


Communications & Management

Interface Port(s): SmartSlot, USB

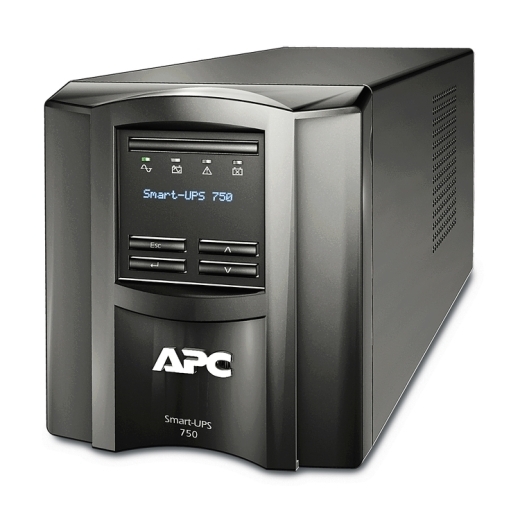

Control panel: Multi-function LCD status and control console

Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays

Emergency Power Off (EPO): Optional

Available SmartSlot„ Interface Quantity: 1


Surge Protection and Filtering

Surge energy rating: 540 Joules

Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPC-SMT750IC
Barcode # 731304340317
Brand APC
Shipping weight 14.2000kg
Shipping width 0.382m
Shipping height 0.400m
Shipping length 0.602m
Assembled length 5.020m
Assembled height 3.000m
Assembled width 2.820m

APC Smart-UPS 750VA 500W Line Interactive UPS Tower 230V 10A Input 6x IEC C13 Outlets Lead Acid Battery SmartConnect Port Slot LCD

$756.32
RRP $966.90 save 22%

or 4 payments of $189.08 with Learn more

In Stock

Product Information

SKU:

UPAPC-SMT750IC

Brand:

APC

Barcode #:

731304340317

Shipping Weigth:

14.2000kg

Warranty:

36
