Output

Output power capacity

2.7kWatts / 3.0kVA

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

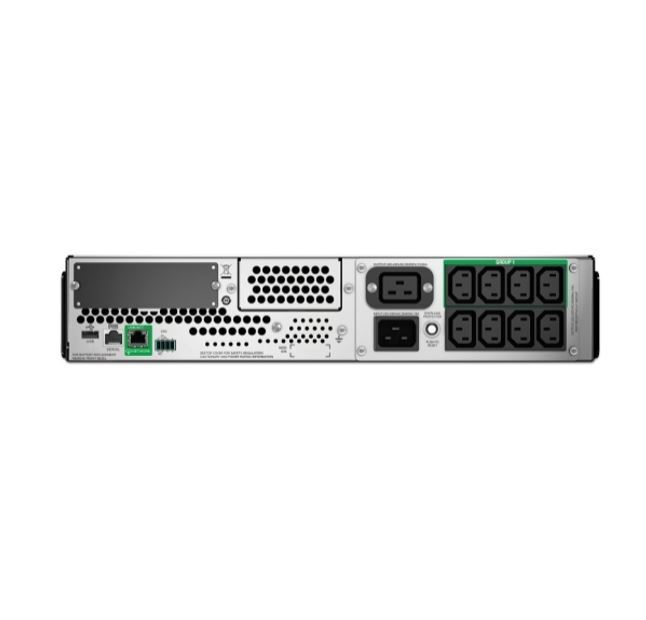

Output Connections

(3) IEC Jumpers (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(1) IEC 320 C19 (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length

1,83meters

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

RBC43

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Available SmartSlot„ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

320Joules

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

480MM, 48.0CM

Maximum Depth

683MM, 68.3CM

Rack Height

2U

Net Weight

44.28KG

Shipping weight

51.7KG

Shipping Height

254MM, 25.4CM

Shipping Width

600MM, 60.0CM

Shipping Depth

980MM, 98.0CM

Units per Pallet

8.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity
