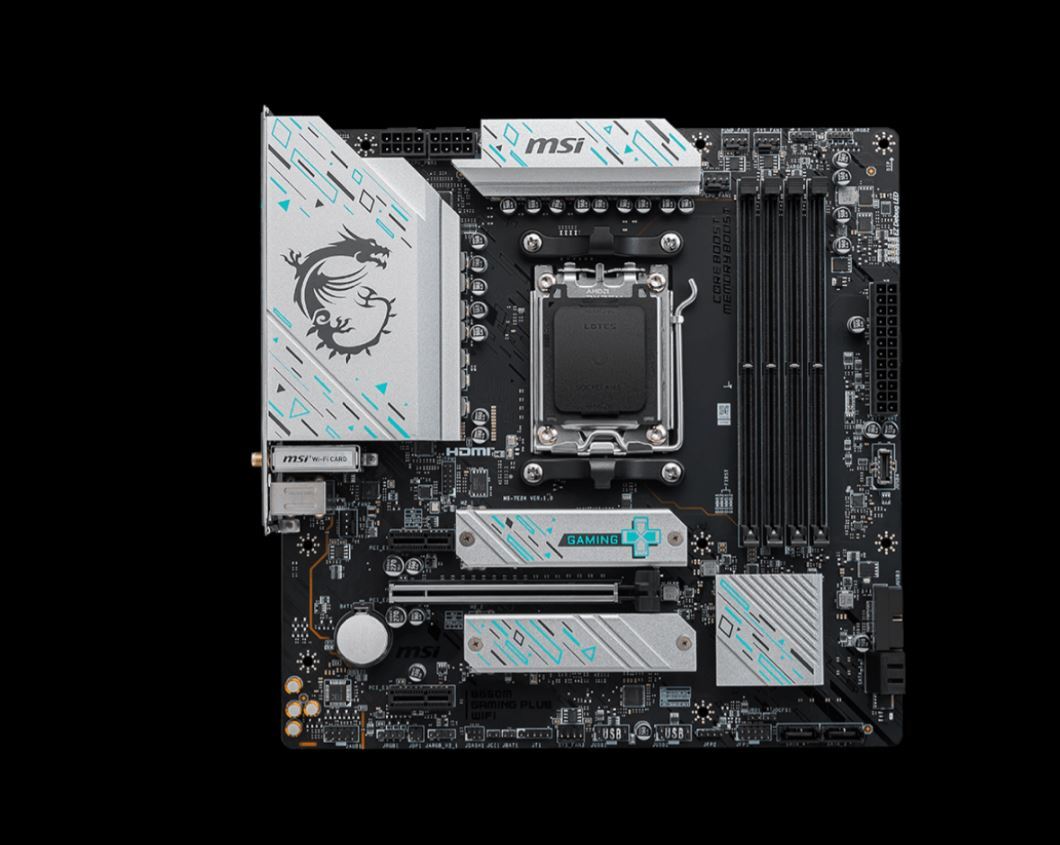

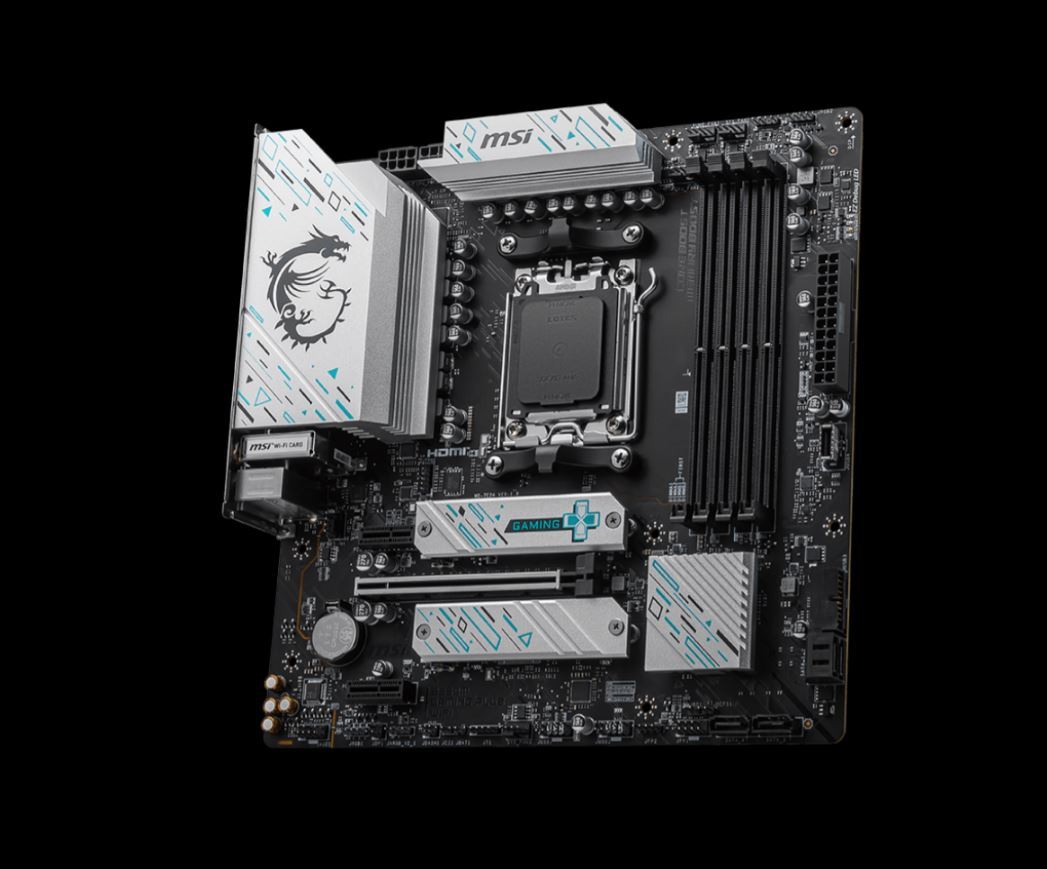

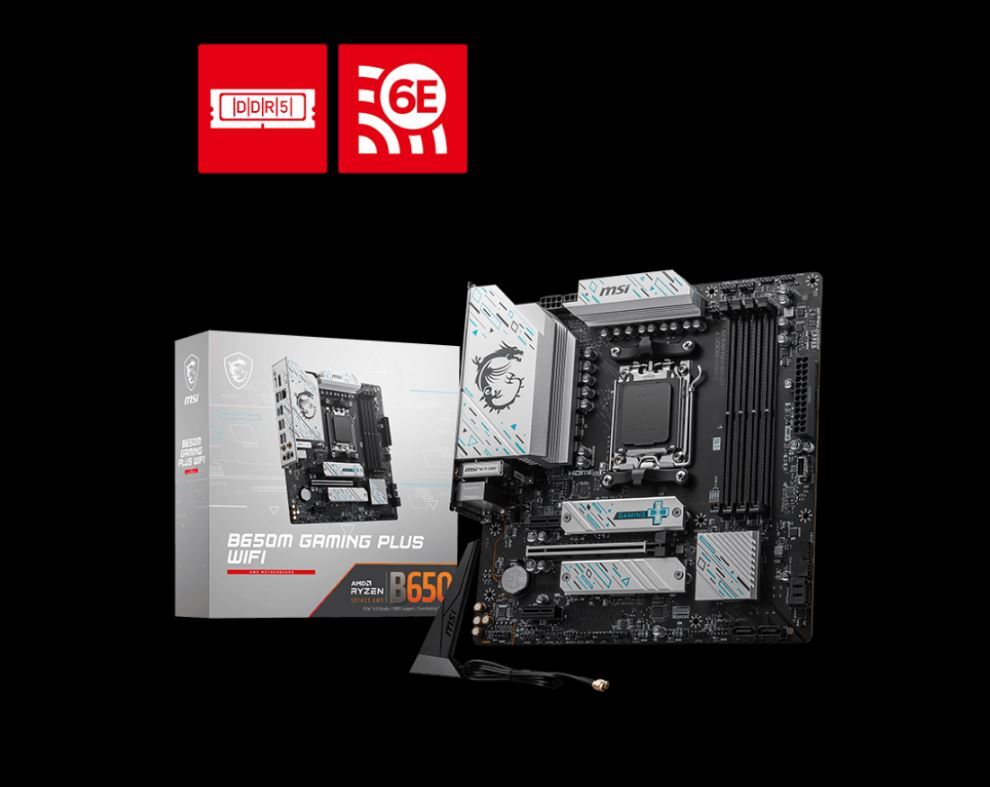

pMSI B650M GAMING PLUS WIF AMD AM5 mATX Motherboard 4x DDR5 1x PCI-E x16 2x PCI-E x1 2x M.2 4x SATA 2x USB 3.2 4x USB 2.0 1xUSB Type C
pp
ppCHIPSET AMD B650
pp
ppCPU Supports AMD Ryzen„ 8000 7000 Series Desktop Processors Socket AM5
pp
ppMEMORY 4x DDR5 UDIMM Maximum Memory Capacity 256GB
ppMemory Support DDR5 7200(OC) 7000(OC) 6800(OC) 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5800(OC) 5600(OC) 5400(OC) 5200(OC) 5000(OC) 4800(JEDEC) MHz
pp
ppONBOARD GRAPHICS
pp1x HDMI„
ppSupport HDMI„ 2.1 maximum resolution of 4K 60Hz
pp1x DisplayPort
ppSupport DP 1.4 maximum resolution of 4K 60Hz
pp
ppSLOT
pp1x PCI-E x16 slot
pp Supports x16 (For Ryzen„ 7000 Series processors)
pp Supports x8 (For Ryzen„ 7 8700G and Ryzen„ 5 8600G processors)
pp Supports x4 (For Ryzen„ 5 8500G processor)
pp2x PCI-E x1 slot
ppPCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
ppPCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
ppPCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
pp
ppSTORAGE
pp2x M.2
ppM.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280 2260 devices
ppM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280 2260 devices
pp4x SATA 6G
pp M2_2 supports PCIe 4.0 x2 speed when Ryzen„ 5 8500G is installed
pp
ppRAID
ppSupports RAID 0 RAID 1 and RAID 10 for SATA storage devices
ppSupports RAID 0 RAID 1 for M.2 NVMe storage devices
pp

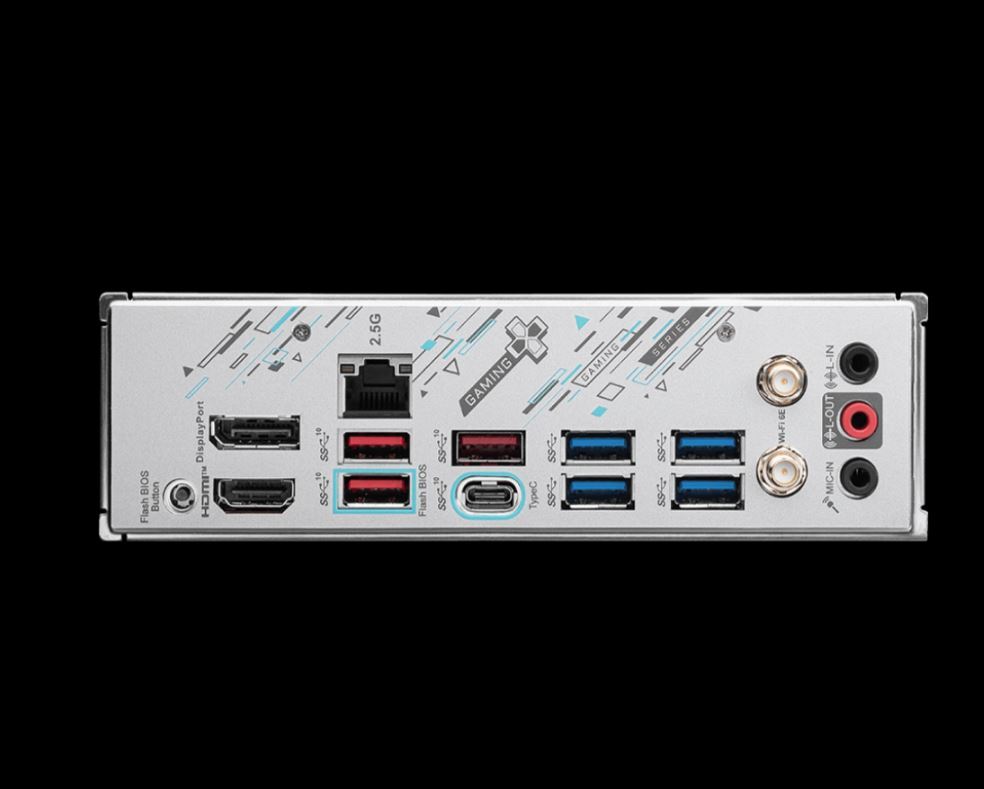

ppUSB
pp4x USB 2.0 (Front)
pp4x USB 3.2 Gen1 Type A (Rear)
pp2x USB 3.2 Gen1 Type A (Front)
pp3x USB 3.2 Gen2 Type A (Rear)
pp1x USB 3.2 Gen2 Type C (Rear)
pp1x USB 3.2 Gen2 Type C (Front)
pp
ppLAN Realtek RTL8125BG 2.5Gbps LAN
pp
ppWIRELESS LAN BLUETOOTH
ppAMD Wi-Fi 6E
ppThe Wireless module is pre-installed in the M.2 (Key-E) slot
ppSupports MU-MIMO TX RX
ppSupports 20MHz 40MHz 80MHz160MHz bandwidth in 2.4GHz 5GHz or 6GHz bands
ppSupports 802.11 a b g n ac ax
ppSupports Bluetooth 5.3 p
