Description

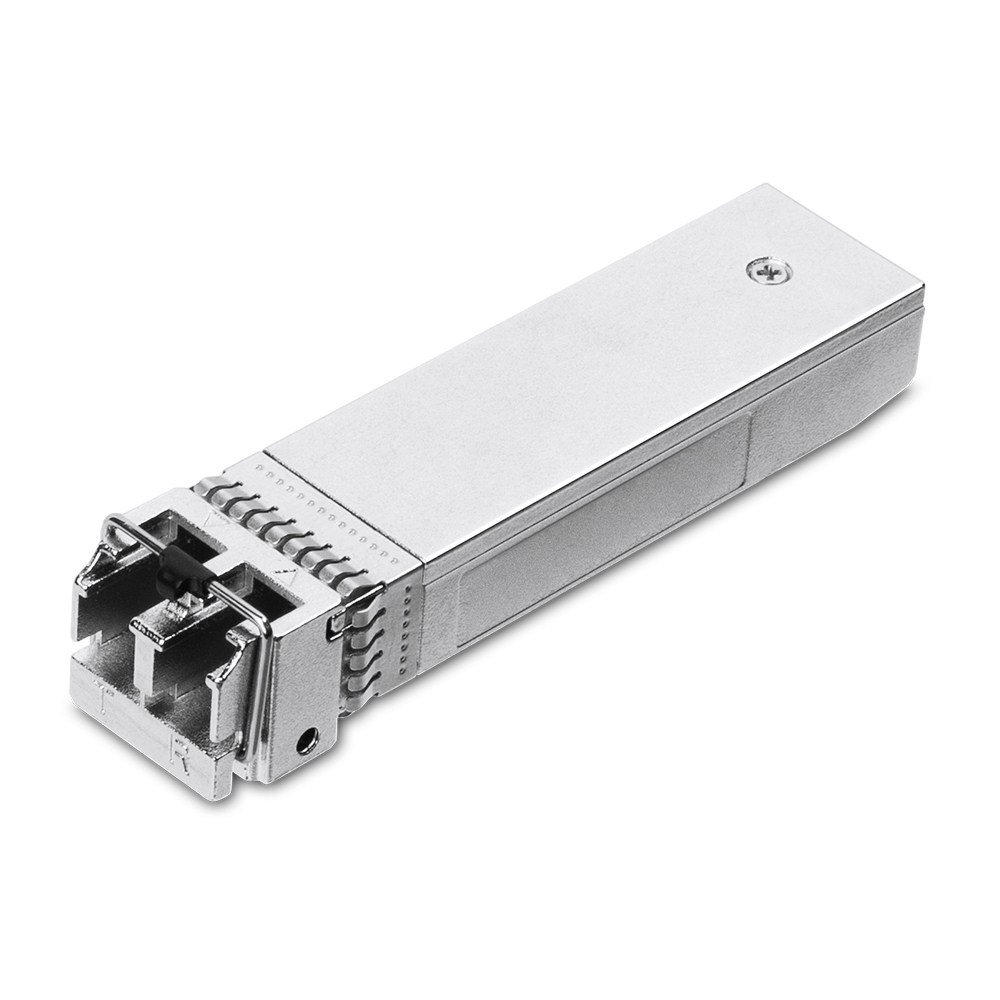

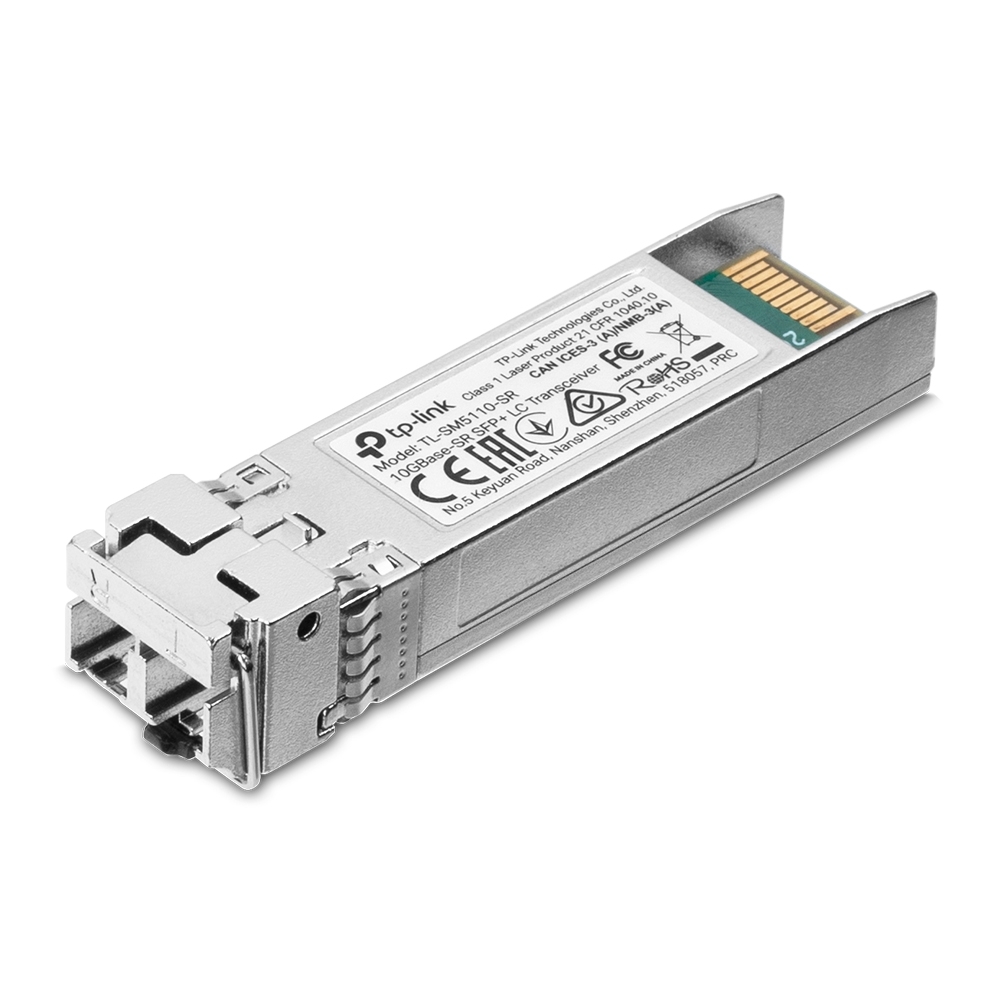

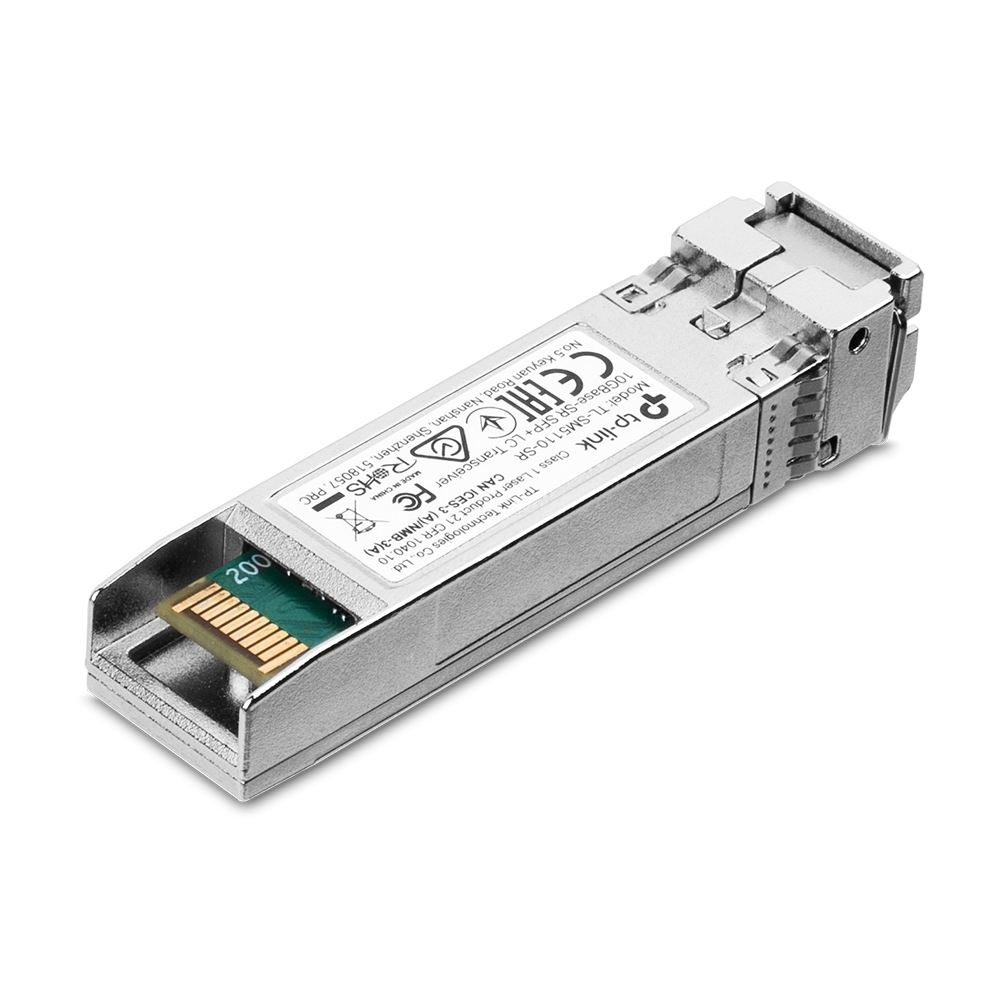

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible


Multi-mode SFP+ LC Transceiver

Hot-Pluggable with maximum flexibility

Supports Digital Diagnostic Monitoring (DDM)

Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.


What This Product Does

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.


HARDWARE FEATURES

DDM Yes

SFP-MSA Yes

Hot Swappable Yes

TRANSCEIVER

Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472

Wave Length 850nm

Power Supply 3.3V

Fiber Type 50/125um or 62.5/125um Multi-mode

Max. Cable Length 300m (OM3)

Data Rate 10Gbps

Port Type LC/UPC

Safety & Emission FCC, CE

Environment Operating Temperature: 0“70 „ƒ (32“158 „‰)

Storage Temperature: -40“80 „ƒ (-40“176 „‰)

Operating Humidity: 10“90% RH non-condensing

Storage Humidity: 5“90% RH non-condensing

Specifications
SKU NWTL-SM5110-SR
Barcode # 6935364006297
Brand TP-LINK
Shipping weight 0.6600kg
Shipping width 0.182m
Shipping height 0.142m
Shipping length 0.224m
Assembled length 1.240m
Assembled height 0.420m
Assembled width 0.820m

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP MSA Compatible

$37.12
RRP $49.00 save 24%

or 4 payments of $9.28 with Learn more

In Stock

Product Information

SKU:

NWTL-SM5110-SR

Brand:

TP-LINK

Barcode #:

6935364006297

Shipping Weigth:

0.6600kg

Warranty:

36
