Description

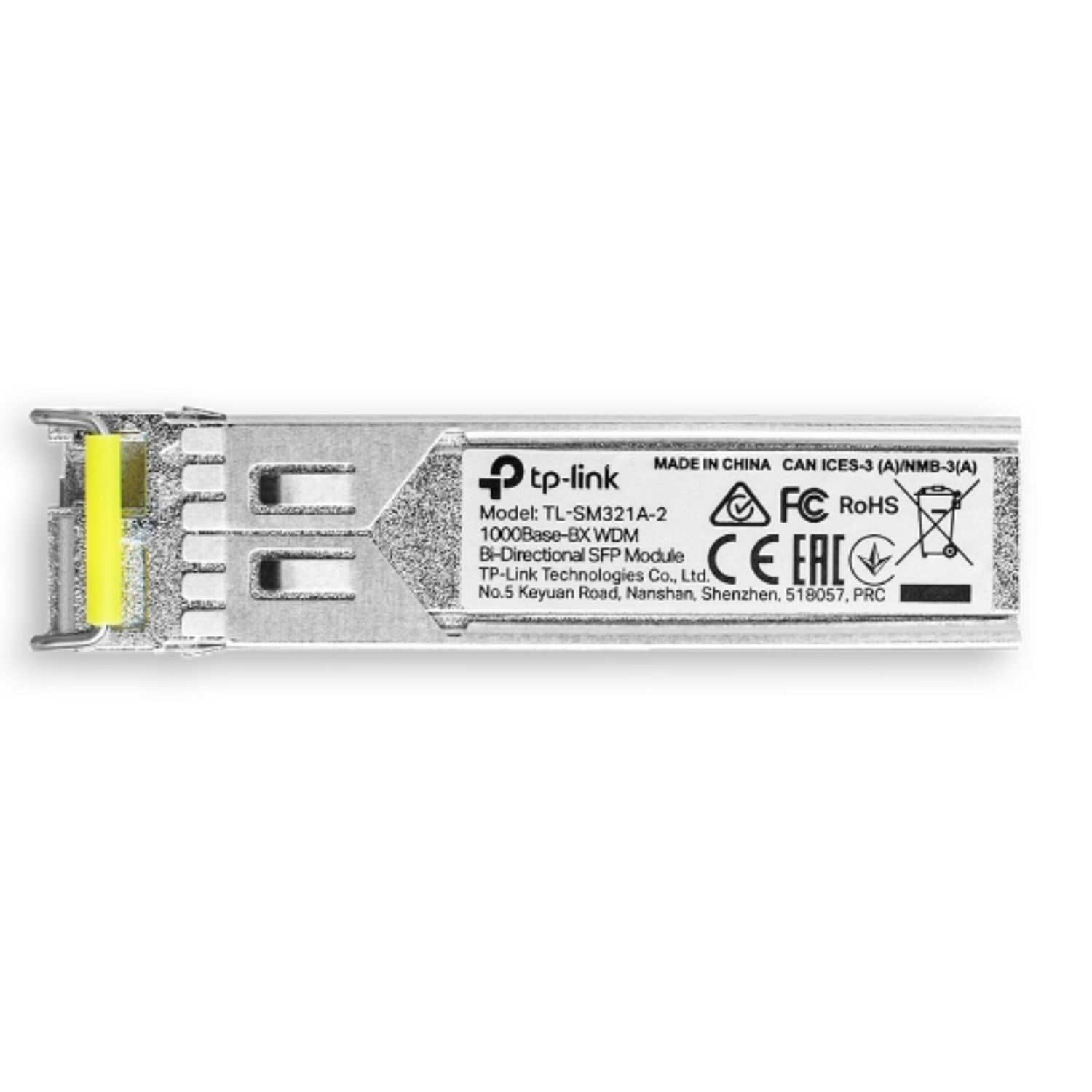

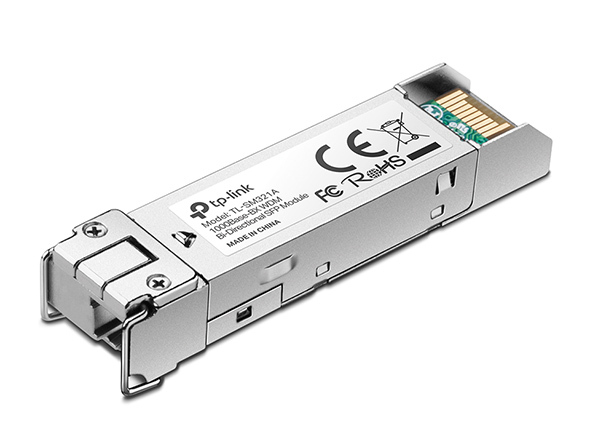

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)

Adopts the latest standard 1000Base-BX

Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

Supports Digital Diagnostic Monitoring (DDM)

Supports Hot Swappable


HARDWARE FEATURES

DDM Yes

SFP-MSA Yes

Hot Swappable Yes

MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3z, TCP/IP

Wave Length TX: 1550 nm

RX: 1310 nm

Power Supply 3.3 V

Safety & Emission FCC, CE

Cabel Single-Mode Fiber

Fiber Type 9/125 μm Single-Mode

Max. Cable Length 2 KM

Data Rate 1.25 Gbps

Port Type LC Simplex

Environment Operating Temperature: 0“70 °C (32“158 °F)

Storage Temperature: -40“85 °C ( -40“185 °F)

Operating Humidity: 10“90% RH, Non-Condensing

Storage Humidity: 5“90% RH, Non-Condensing

Specifications
SKU NWTL-SM321A-2
Barcode # 6935364072933
Brand TP-LINK
Shipping weight 0.6600kg
Shipping width 0.182m
Shipping height 0.142m
Shipping length 0.224m
Assembled length 1.240m
Assembled height 0.420m
Assembled width 0.820m

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550nm RX: 1310nm Up to 2KM Transmission Distance LC Simplex

$25.52
RRP $39.00 save 35%

or 4 payments of $6.38 with Learn more

In Stock

Product Information

SKU:

NWTL-SM321A-2

Brand:

TP-LINK

Barcode #:

6935364072933

Shipping Weigth:

0.6600kg

Warranty:

36
