Description

Shuttles latest XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5' hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference.


FORM FACTOR

Shuttle 0.85L Form Factor


PROCESSOR

Intel 12th Gen Celeron 7305 15W CPU i3-1215U, i5-1235U, i7-1255U (optional)


MEMORY

2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4, up to 3200Mhz


VIDEO OUTPUT

Intel Iris Xe Graphics


AUDIO

C-Media CM6542


ETHERNET

Built in Intel I219 support 10/100/1000Mbs


STORAGE INTERFACE

Support SATA 6.0Gb/s bandwidth

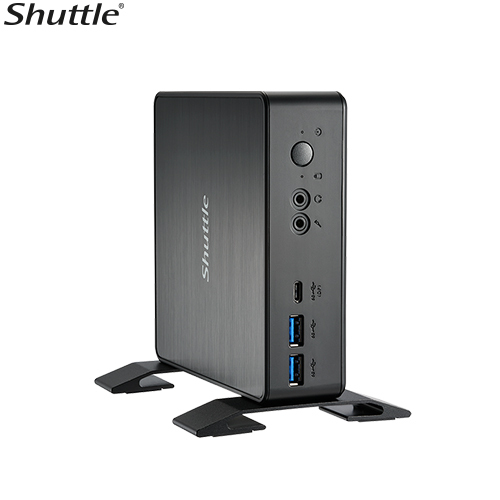

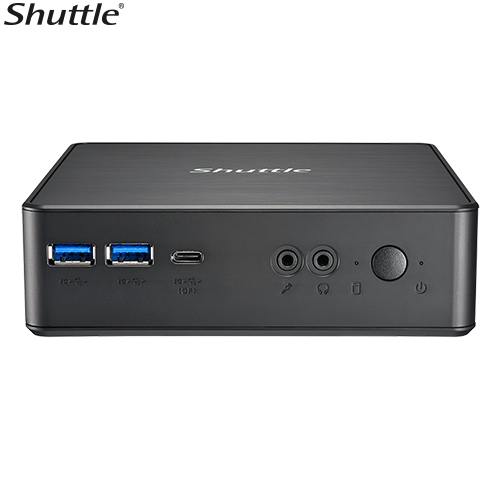

FRONT PANEL

(1) Power button

(1) Power LED

(1) HDD LED

(2) USB 3.2 Gen 1 Type A

(1)USB 3.2 Gen 1 Type C (w/DP)

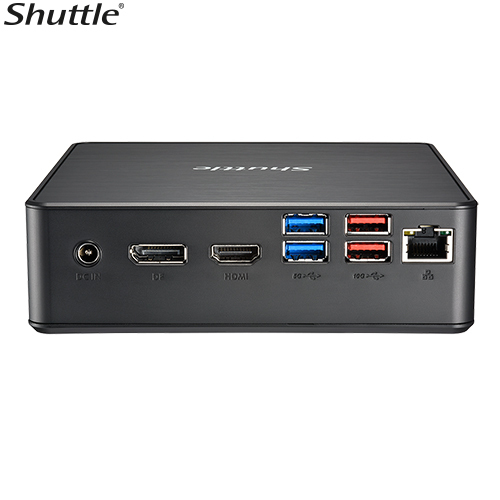

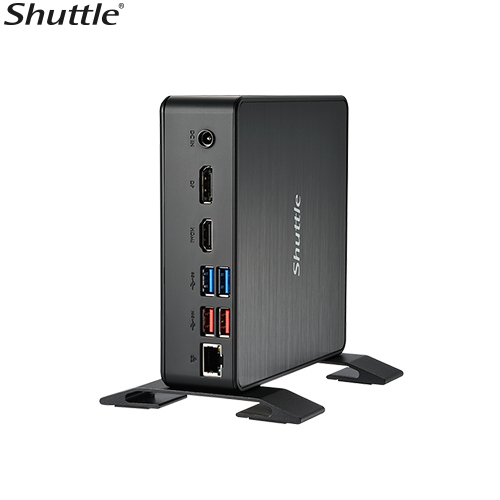

BACK PANEL

(1) HDMI

(1) DisplayPort

(2) USB 3.2 gen1

(2) USB 3.2 gen2

(1) RJ45

(1) DC-in Jack

(1) Kensington Lock


DRIVE BAYS

2.5' 15mm SATA HDD / SSD


DIMENSIONS

142(L) x 142(W) x 42(H) mm


POWER

65 Watts (19V/3.42A)


ACCESSORIES

Quick guide

DVD driver

VESA mount

Foot Stand

Adapter and power cord

screw pack


EXPANSION SLOT

M.2 2230 E key

M.2 2280 M key(w/PCIe Gen3 x 4, SATA 6 Gb/s)

M.2 2280 M key(w/PCIe Gen4 x 4)


OS SUPPORT

Windows 11

Linux


OPERATING TEMPERATURE

0„ƒ~50„ƒ

Specifications
SKU SYS-NC40U
Barcode # 887993005904
Brand Shuttle
Shipping weight 2.2600kg
Shipping width 0.242m
Shipping height 0.348m
Shipping length 0.358m
Assembled length 2.580m
Assembled height 2.480m
Assembled width 1.420m

Shuttle NC40U Slim Mini PC 1L Barebone - Celeron 7305 HDMI DP VGA RJ45 LAN 2xDDR4 2.5 inch HDD SSD VESA mount

$502.28
RRP $595.00 save 16%

or 4 payments of $125.57 with Learn more

Sold Out

Product Information

SKU:

SYS-NC40U

Brand:

Shuttle

Barcode #:

887993005904

Shipping Weigth:

2.2600kg
