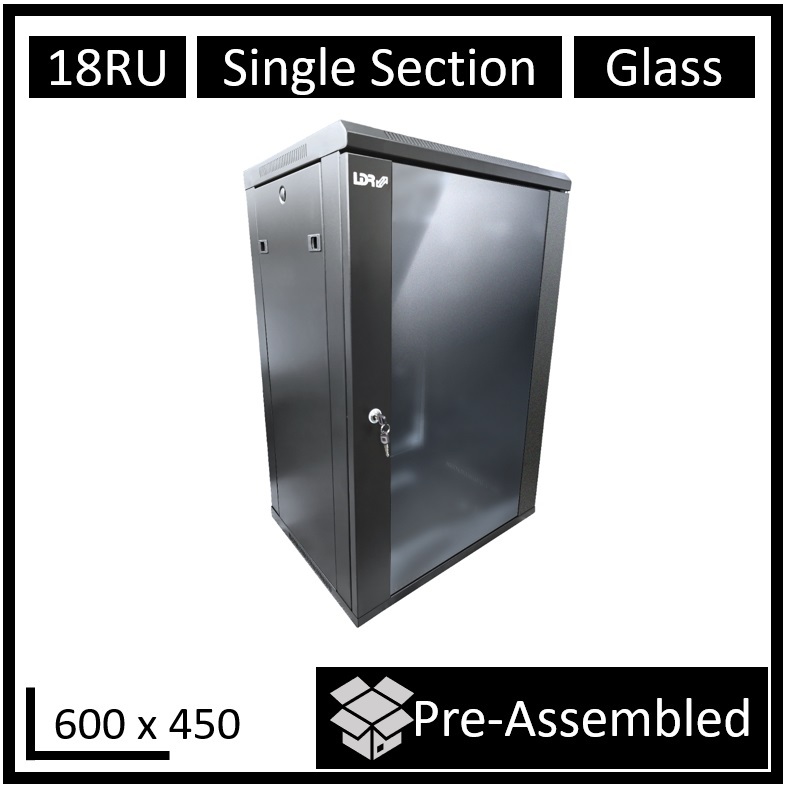

The LDR single section hanging cabinets of the mounting height 18U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

FEATURES

Side doors mounted on latches with a lock assembly option

A frame with a load capacity of 60kg

Protection class IP20

Front door - glass

SPECIFICATIONS

Nominal height 18U

Total outer height 900mm

Outer width 600mm

Outer depth 450mm

Mounting depth 400mm

Colour Black

Maximum load capacity 60kg

Protection class IP20

Front doors Glass with a lock

Back doors n/a

Side panels Full steel dismounted on latches with a lock assembly option

Packaging Dimensions 1x Carton, 170mm x 635mm x 935mm
