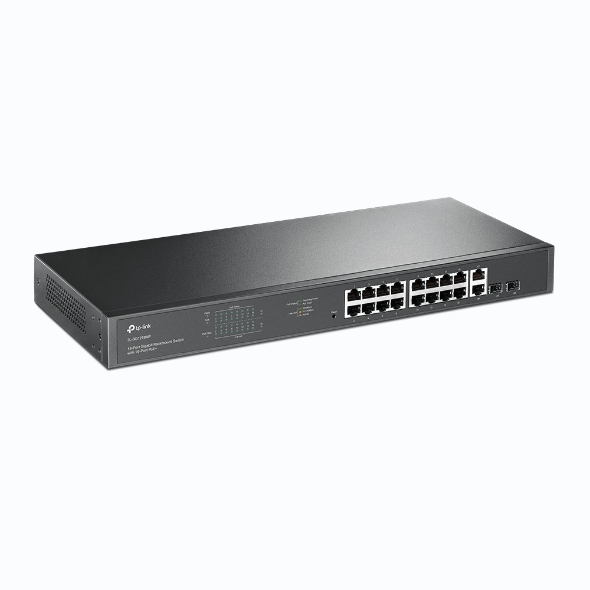

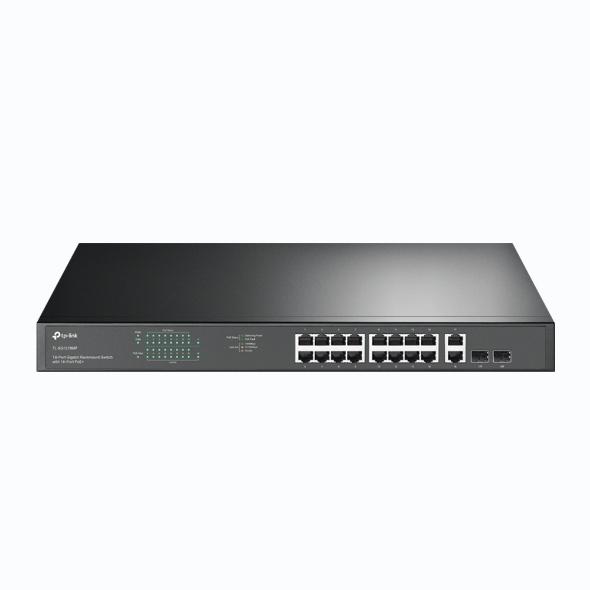

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

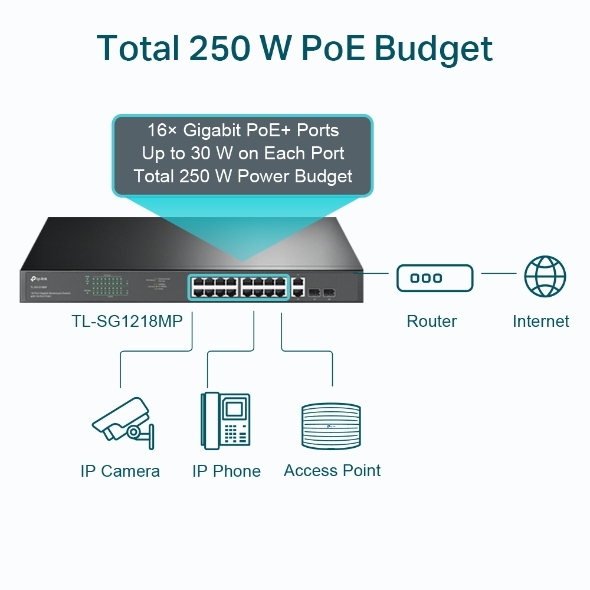

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

Working with IEEE 802.3af/at compliant PDs

Plug and play, with no configuration and installation needed

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0“50 „ƒ)

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface 16× PoE+ gigabit RJ45 ports

2× gigabit non-PoE RJ45 ports

2× combo gigabit SFP slots

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity 2

Physical Security Lock Yes

Power Supply 100“240 VAC, 50/60 Hz

PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant

PoE Ports: Ports 1“16

PoE Power Budget: 250 W

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 21.4 W (220/50 Hz. no PD connected)

286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation 72.97 BTU/h (no PD connected)

977.44 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity 36 Gbps

Packet Forwarding Rate 26.78 Mbps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs

802.1p/DHCP QoS

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame 10 KB
