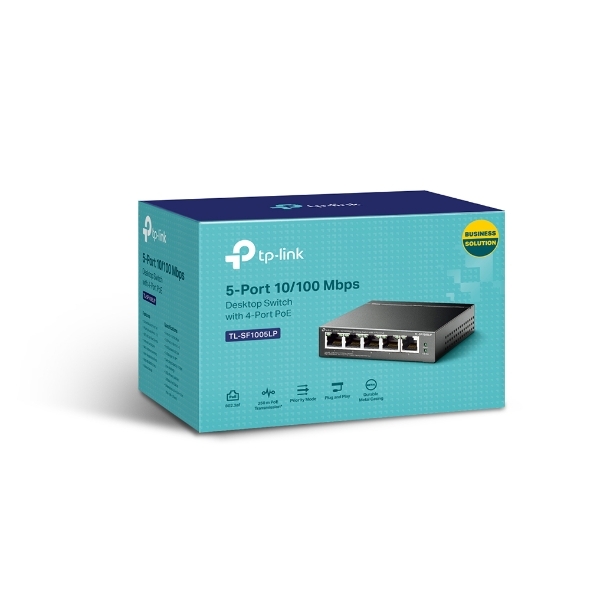

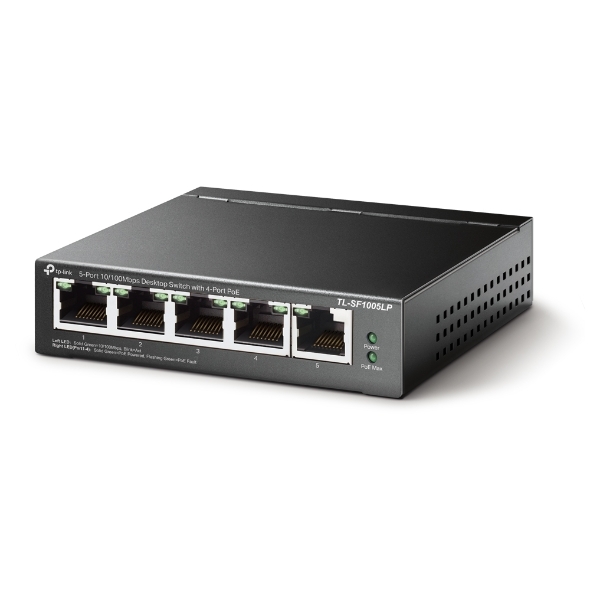

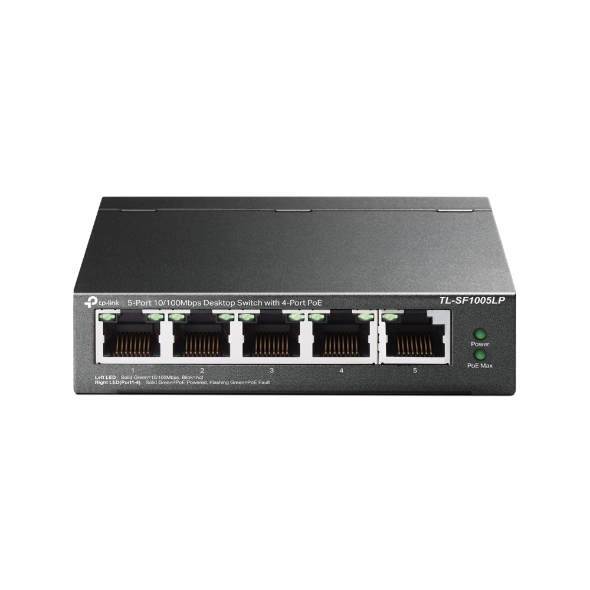

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
5× 10/100 Mbps RJ45 ports

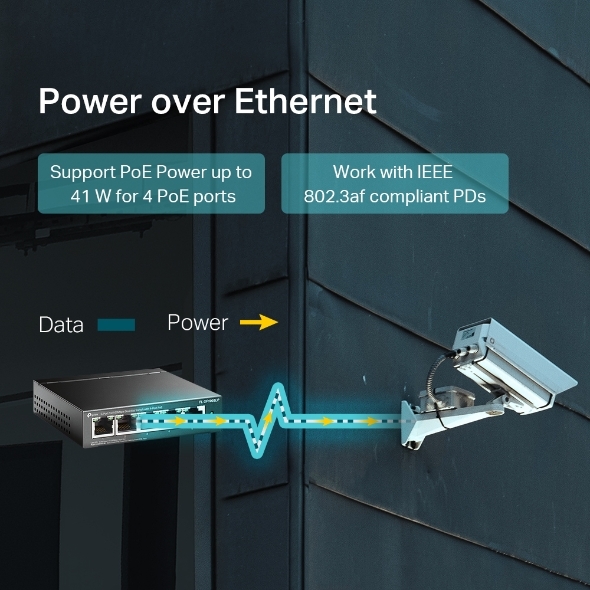

4× PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required
HARDWARE FEATURES
Interface 5× 10/100 Mbps RJ45 Ports (Ports 1“4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Ports 1“4
Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation 6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1“4)
Priority Mode Button (Ports 1“2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1005LP
Power Adapter
Installation Guide
Environment Operating Temperature: 0“40 „ƒ (32“104 „‰)
Storage Temperature: -40“70 „ƒ (-40“158 „‰)
Operating Humidity: 10“90% RH non-condensing
Storage Humidity: 5“90% RH
SKU | NWTL-SF1005LP |
Barcode # | 6935364052782 |
Brand | TP-LINK |
Shipping weight | 1.3400kg |
Shipping width | 0.222m |
Shipping height | 0.232m |
Shipping length | 0.298m |
Assembled length | 1.980m |
Assembled height | 1.320m |
Assembled width | 1.220m |
TP-Link TL-SF1005LP 5-Port 10 100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching
