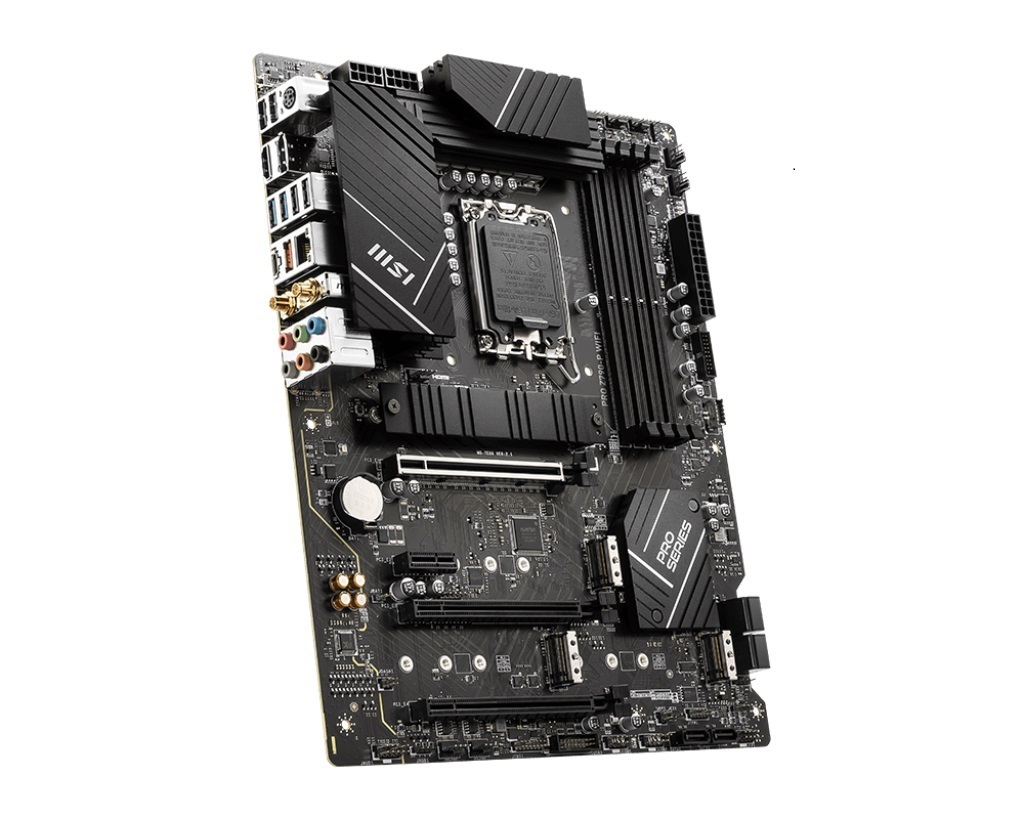

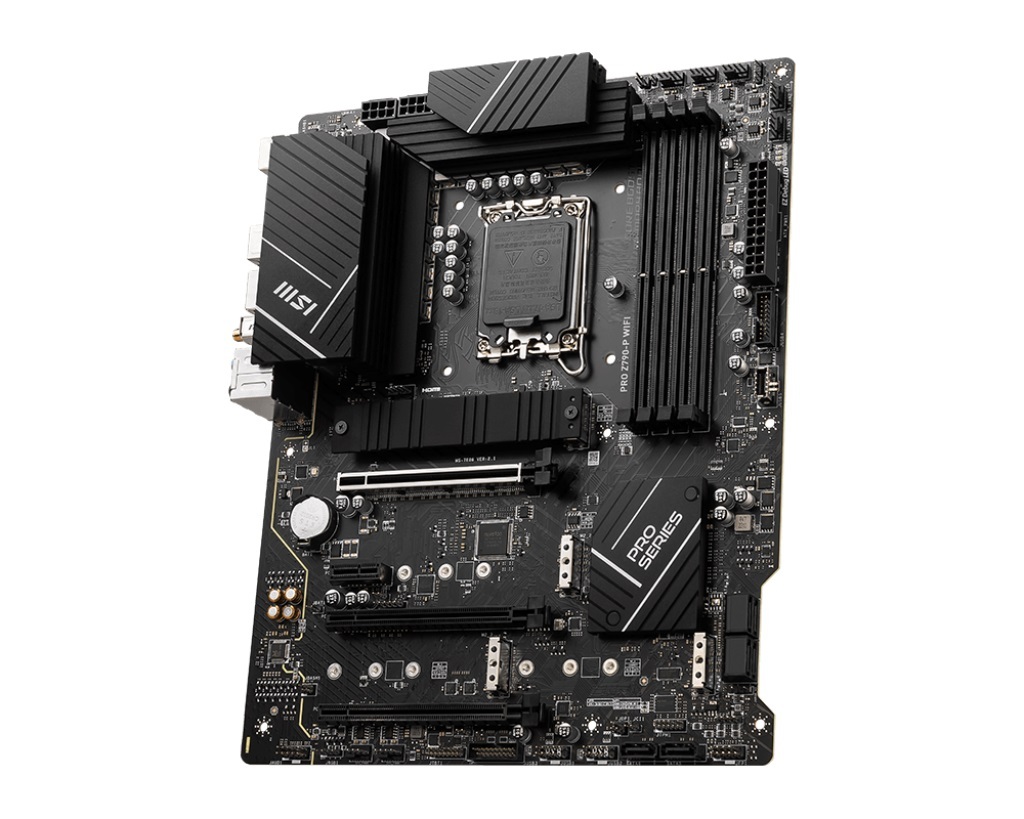

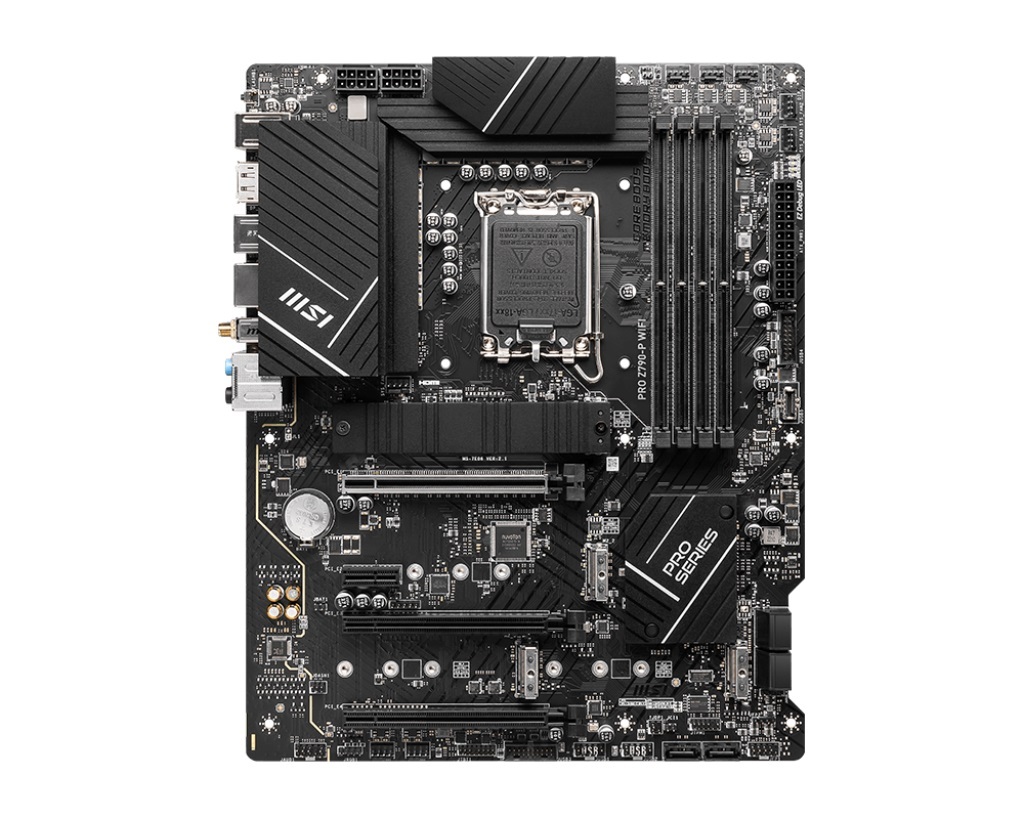

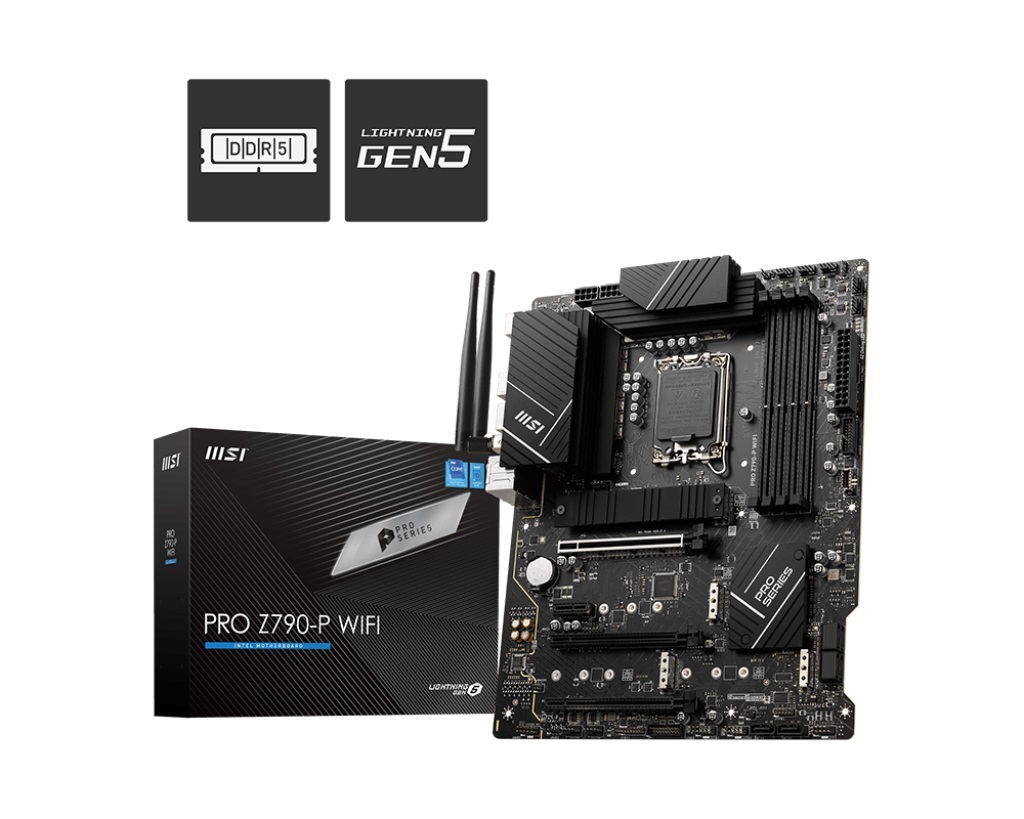

MSI PRO Z790-P WIFI Intel LGA 1700 MINI-ITX Motherboard, 4x DDR5 128GB, 1x PCI-E x 16, 1x PCI-E x 14, 4x M.2, 6x SATA, 4x USB 3.2, 4x USB2.0,
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel Core„ Processors, Pentium Gold and Celeron Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI„
1x DisplayPort
Support HDMI„ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
PCB DIMENSION ATX 243.84mmx304.8mm
SKU | MBM-PROZ790-PWIFI |
Barcode # | 4711377015738 |
Brand | MSI |
Shipping weight | 2.1200kg |
Shipping width | 0.372m |
Shipping height | 0.166m |
Shipping length | 0.448m |
Assembled length | 3.480m |
Assembled height | 0.660m |
Assembled width | 2.720m |
MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard 4x DDR5 128GB 1x PCI-E x 16 1x PCI-E x 14 4x M.2 6x SATA 4x USB 3.2 4x USB2.0
