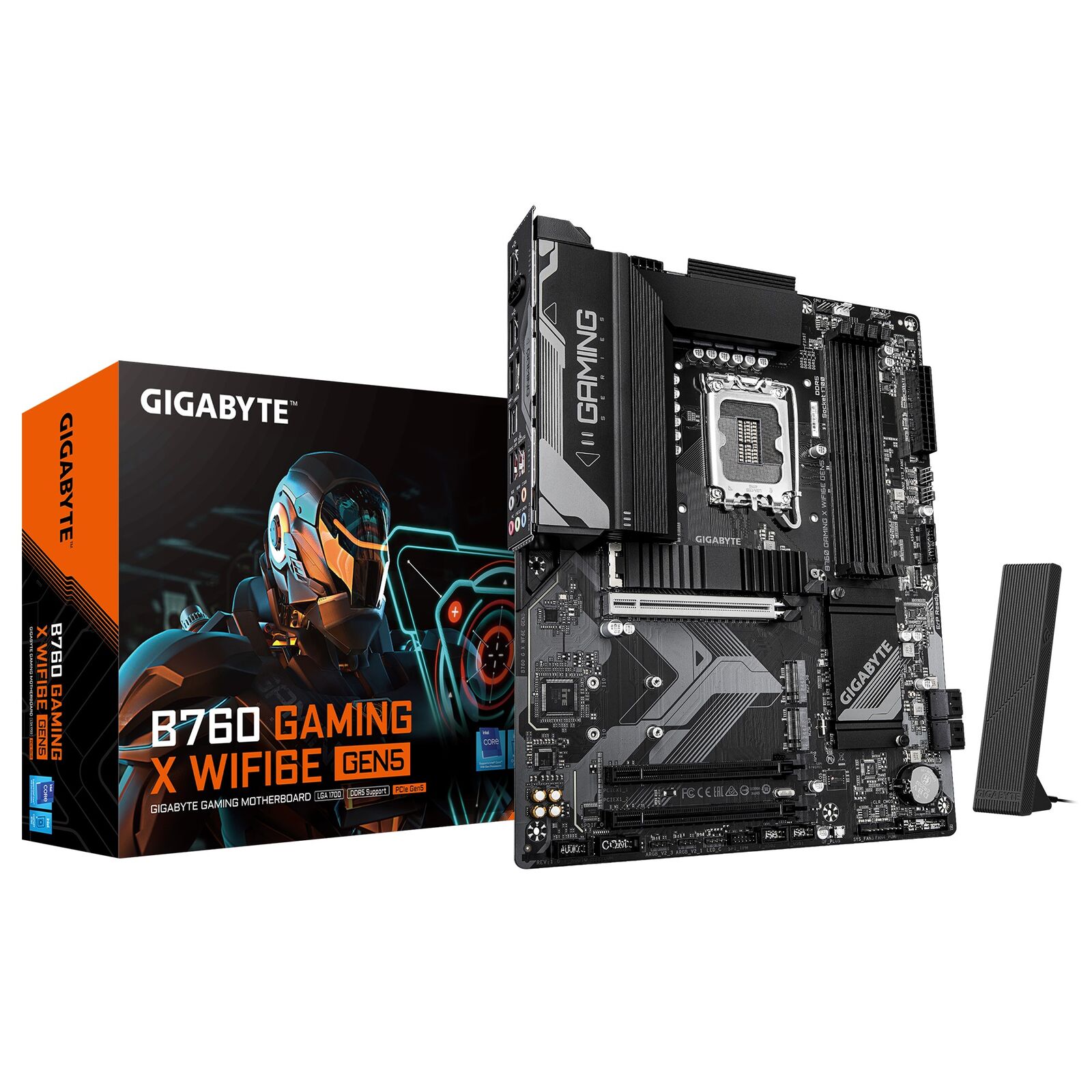

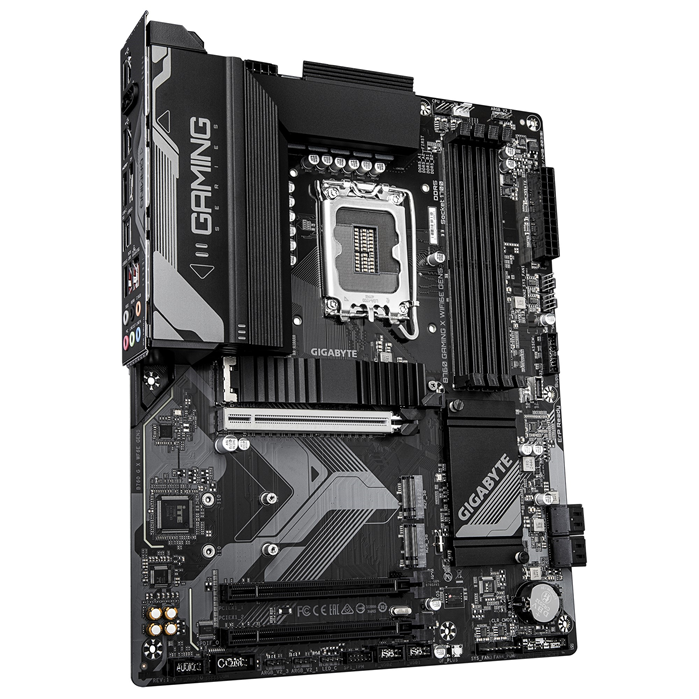

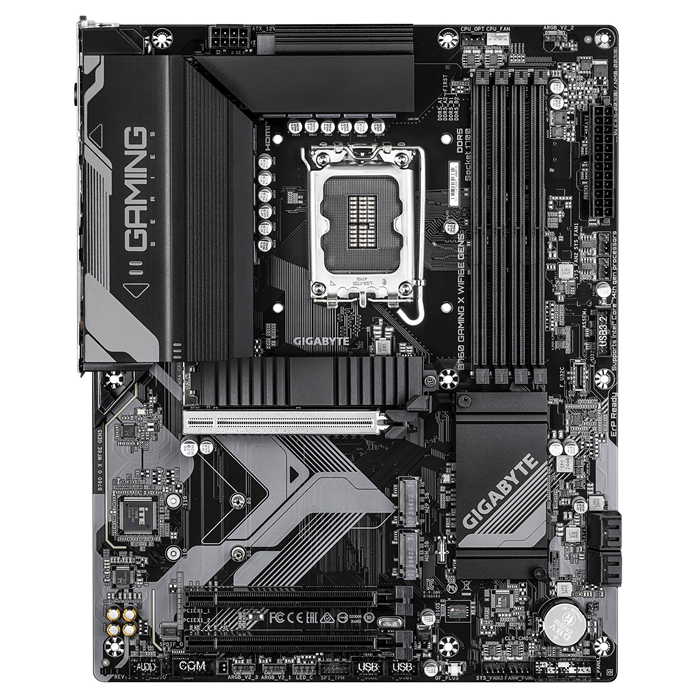

Gigabyte B760 GAMING X WIFI6E GEN5, Intel LGA 1700 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 3x M.2, 4x SATA, 3x USB 3.2, 1x USB-C, 8x USB 2.0

Specification:

CPU

LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core„, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Chipset

Intel B760 Express Chipset

Memory

14th and 13th Generation Intel Core„ i9 i7 Processors:

- Support for DDR5 5600 5200 4800 4400 MT s memory modules

13th Generation Intel Core„ i5 i3 and 12th Generation Intel Core„, Pentium Gold and Celeron Processors:

- Support for DDR5 4800 4400 MT s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz

Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 TMDS compatible ports.

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2A_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2P_SB, M2M_SB)

- 4 x SATA 6Gb s connectors

ŠRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

- 1 x USB 2.0 1.1 port on the back panel

Chipset2 USB 2.0 Hubs:

- 8 x USB 2.0 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Back Panel Connectors

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 port

5 x USB 2.0 1.1 ports

2 x antenna connectors (2T2R)

1 x DisplayPort (Note)

1 x HDMI port (Note)

1 x RJ-45 port

6 x audio jacks
