Description





Output

Output power capacity: 2.1 KWatts / 3.0 kVA

Max Configurable Power (Watts): 2.1 KWatts / 3.0 kVA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 5%

Output Frequency (sync to mains): 50 Hz

Topology: Line Interactive

Waveform type: Sine wave

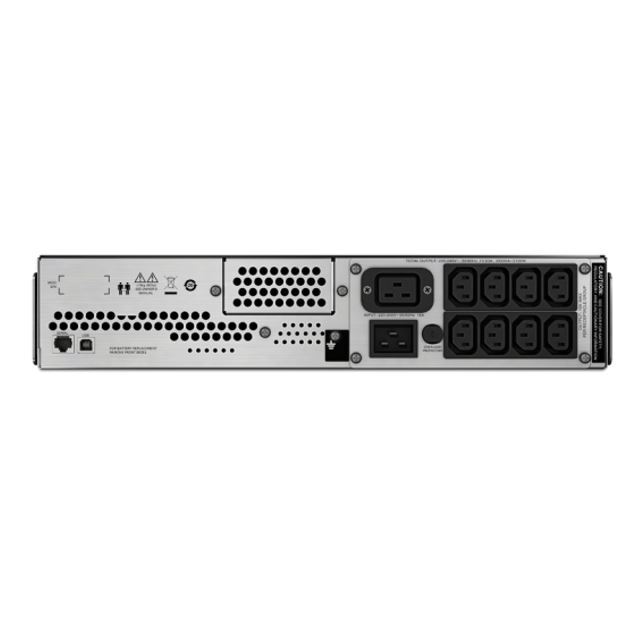

Output Connections: —¦ (8) IEC 320 C13 (Battery Backup)

—¦ (1) IEC 320 C19 (Battery Backup)


Transfer Time: 8ms typical: 10 ms maximum


Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C20

Input voltage range for main operations: 180 - 287 V

Number of Power Cords: 1


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time:3 hour(s)

Replacement Battery: APCRBC151

RBC Quantity: 1

Battery Volt-Amp-Hour Capacity: 490

Runtime: View Runtime Graph View Runtime Chart


Communications & Management

Interface Port(s): USB

Control panel: Multi-function LCD status and control console

Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays

Emergency Power Off (EPO): --


Surge Protection and Filtering

Surge energy rating: 300 Joules

Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449


Physical

Maximum Height: 89 mm, 8.9 cm

Maximum Width: 480 mm, 4.8 cm

Maximum Depth: 670 mm, 67.0 cm

Rack Height: 2 U

Net Weight: 41.0 kg

Shipping weight: 50.9 kg

Shipping Height: 254 mm, 25.4 cm

Shipping Width: 600 mm, 60.0cm

Shipping Depth: 980 mm, 98.0cm

Color: Black

Specifications
SKU UPAPCSMC3000RM2
Barcode # 731304310112
Brand APC
Shipping weight 51.5000kg
Shipping width 0.700m
Shipping height 0.354m
Shipping length 1.080m
Assembled length 9.800m
Assembled height 2.540m
Assembled width 6.000m

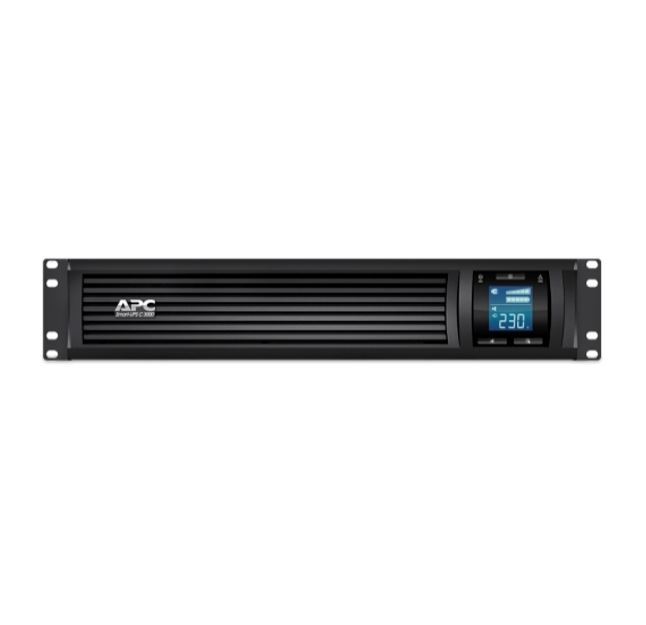

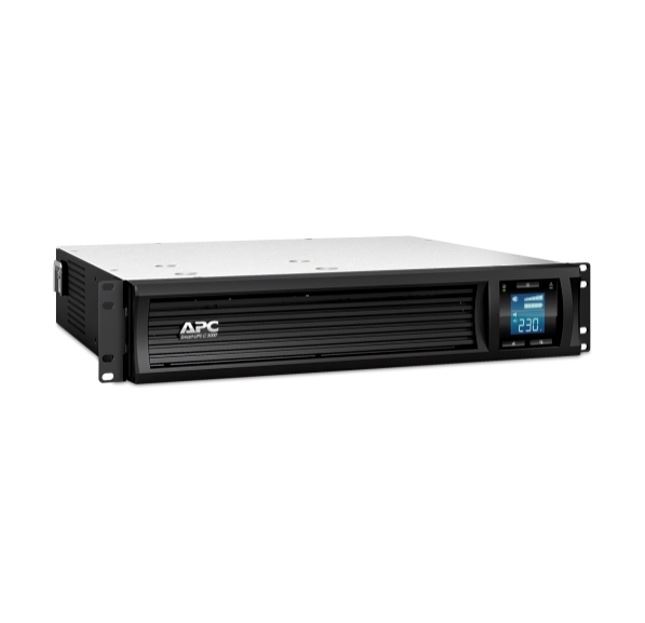

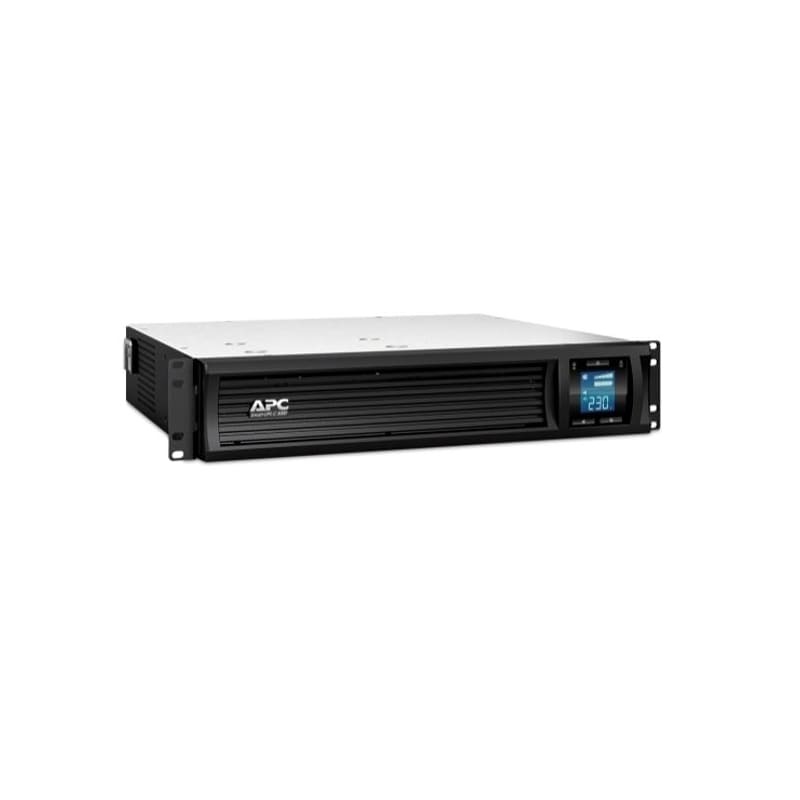

APC Smart-UPS C 3000VA 2100W Line Interactive UPS 2U RM 230V 16A Input 1x IEC C19 8x IEC C13 Outlets Lead Acid Battery

$2,801.40
RRP $3,327.50 save 16%
In Stock

Product Information

SKU:

UPAPCSMC3000RM2

Brand:

APC

Barcode #:

731304310112

Shipping Weigth:

51.5000kg

Warranty:

24
