Output

Output power capacity:900 Watts / 1.5 kVA

Max Configurable Power (Watts):900 Watts / 1.5 kVA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains): 57 - 63 Hz for 60 Hz nominal

Topology: Line Interactive

Waveform type: Sine wave

Output Connections: (8) IEC 320 C13 (Battery Backup)

Transfer Time: 2ms typical

Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Input voltage range for main operations: 180 - 287 V

Input voltage adjustable range for mains operation: 170 - 300 V

Number of Power Cords: 1

Other Input Voltages: 220, 240

Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: APCRBC132

RBC Quantity: 1

Battery Volt-Amp-Hour Capacity: 260

Runtime: View Runtime Graph View Runtime Chart

Communications & Management

Interface Port(s): USB

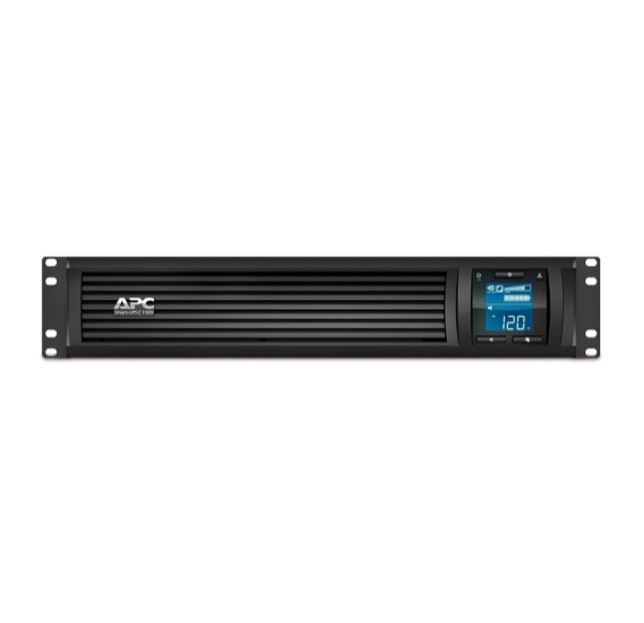

Control panel: Multi-function LCD status and control console

Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays

Emergency Power Off (EPO): --

Surge Protection and Filtering

Surge energy rating: 459 Joules

Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Physical

Maximum Height: 89, 8.9 cm

Maximum Width: 432, 43.2 cm

Maximum Depth: 457, 45.7 cm

Rack Height: 2 U

Net Weight: 28.64 kg

Shipping weight: 31.91 kg

Shipping Height: 251, 25.1 cm

Shipping Width: 594, 59.4 cm

Shipping Depth: 603, 60.3cm

Color: Black

Environmental

Operating Environment: 0 - 40 °C

Operating Relative Humidity: 0 - 95 %

Operating Elevation: 0-3000 meters

Storage Temperature: -15 - 45 °C

Storage Relative Humidity: 0 - 95 %

Storage Elevation: 0-15000 meters
