MSI nVidia GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS, Boost: 2482 MHz, CUDA 8960 Units, 8GB GDDR7, HDMI„ x 1 (embargo)

SPECIFICATION

Marketing Name GeForce RTX„ 5060 Ti 8G SHADOW 2X OC PLUS

Model Name G506T-8S2CP

Graphics Processing Unit NVIDIA GeForce RTX„ 5060 Ti

Interface PCI Express Gen 5 x16 (uses x8)

Core Clocks Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

CUDA CORES 4608 Units

Memory Speed 28 Gbps

Memory 8GB GDDR7

Memory Bus 128-bit

Output DisplayPort x 3 (v2.1b)

HDMI„ x 1 (As specified in HDMI„ 2.1b: up

to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support Y

Power consumption 180 W

Power connectors 8-pin x 1

Recommended PSU 600 W

Card Dimension (mm) 226 x 126 x 41 mm

Weight (Card Package) TBD

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320

FEATURES

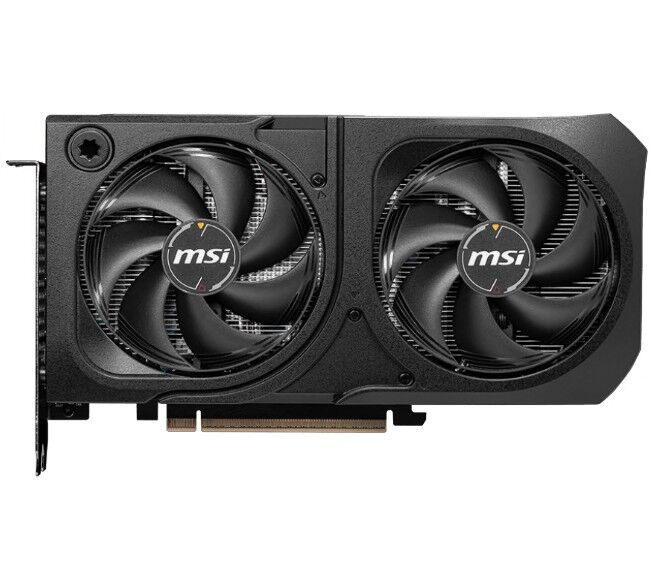

Dual Fan

Two fans and a huge heatsink ensure a cool and quiet experience

for you.

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed

for optimal airflow with minimal noise.

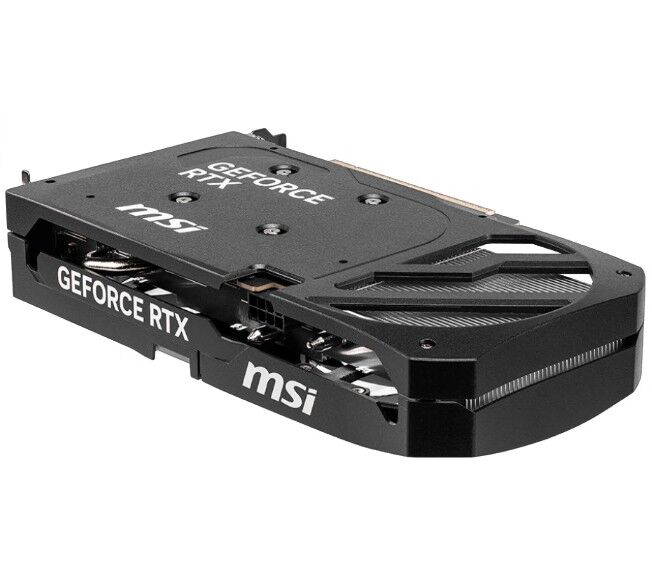

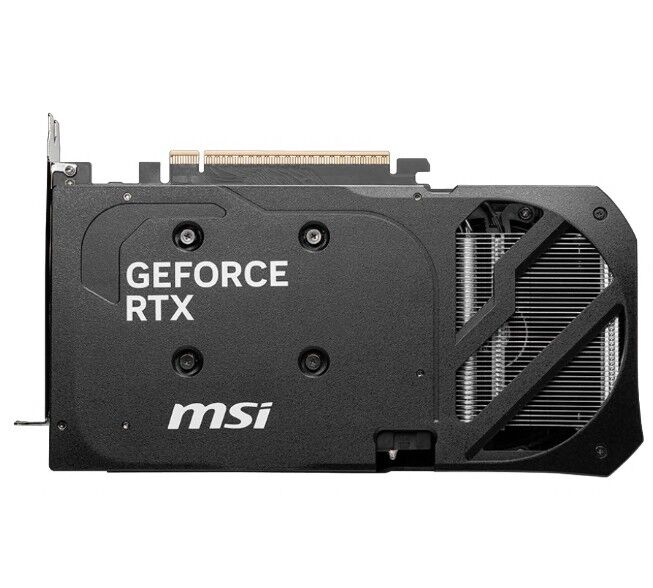

Reinforcing Backplate

The reinforcing backplate features a flow-through design that

provides additional ventilation.

Zero Frozr

The fans completely stop when temperatures are relatively low,

eliminating all noise.

DrMOS

DrMOS power stage solutions provide great efficiency with low

power loss and enhanced voltage controls.

Fuse

Additional fuses built into the custom PCB provide additional

safeguards against electrical damage.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and

optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used

graphics card overclocking software in the world.
