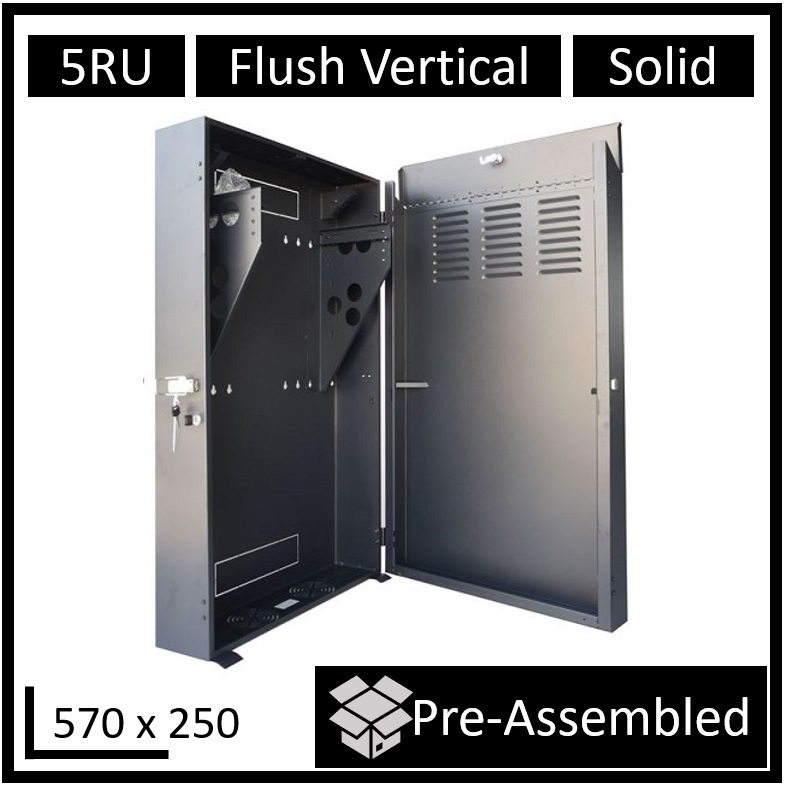

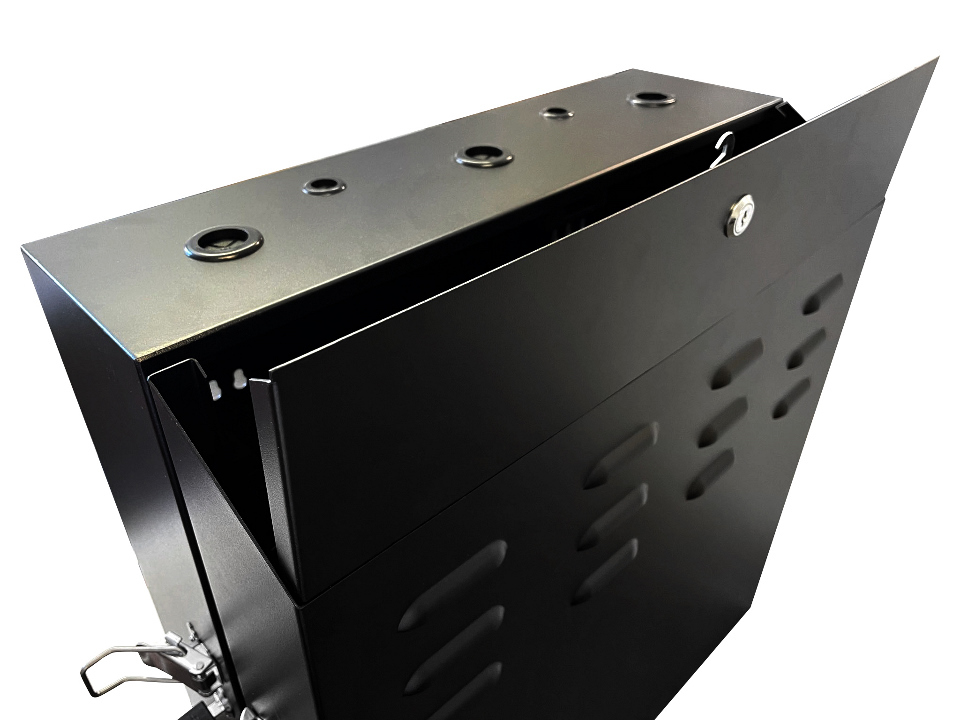

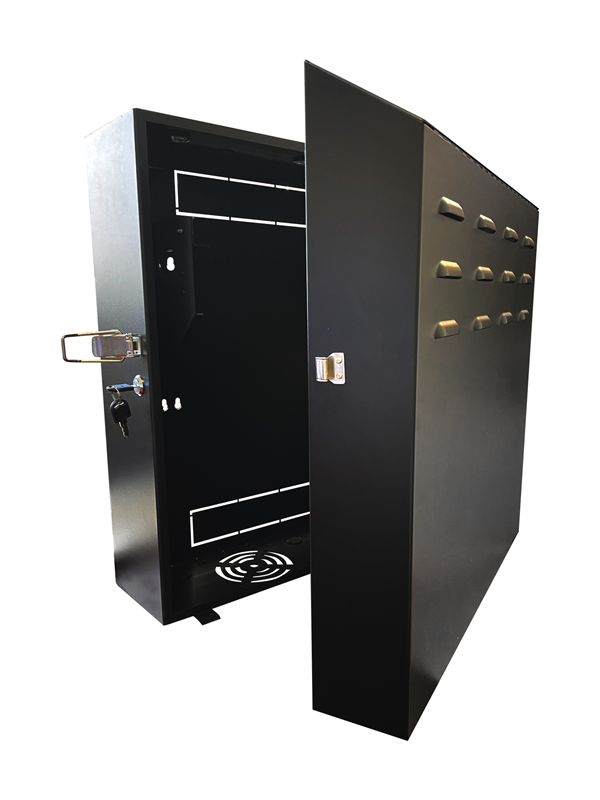

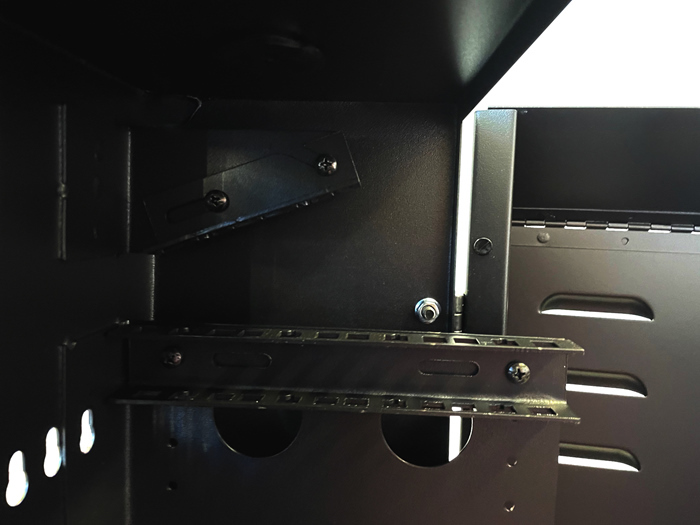

The LDR 5U Vertical Wall Mount Cabinet is designed to save you space. Perfect for small network equipment and limited space networking environments, the low-profile of the cabinet allows your equipment to be mounted vertically in anywhere from comms rooms to retail stores, classrooms and offices. Anywhere that requires a smaller footprint and security. The cabinet when mounted will house 19' networking equipment with a depth up to 400mm, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, there is also an adjustable 2U mounting bracket at the top of the cabinet for patch panels

FEATURES

Vertical Mounting Layout Allowing A More Compact Rack

A frame with a load capacity of 60kg

Protection class IP20

Front door - Solid Metal

SPECIFICATIONS

Nominal height 5U

Total outer height 570mm

Outer width 550mm

Outer depth 250mm

Mounting depth 400mm

Colour Black

Protection class IP20

Front doors Solid Metal

Back doors n/a

Packaging Dimensions 1x Carton, 270mm x 570mm x 590mm
