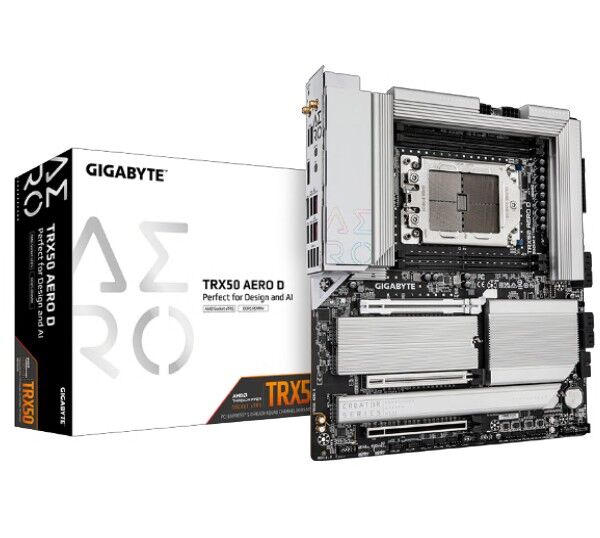

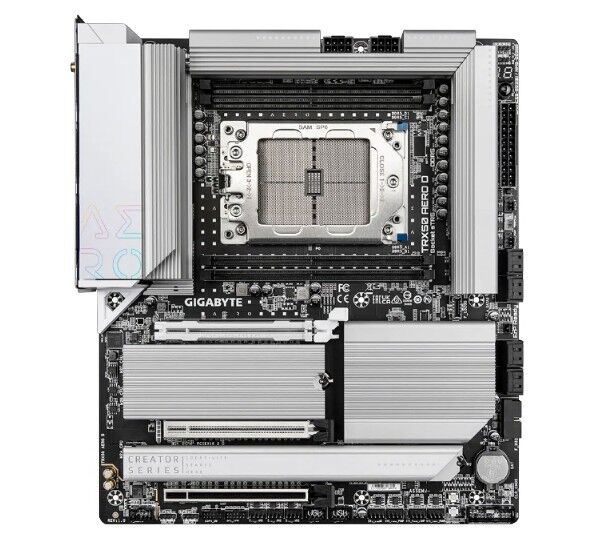

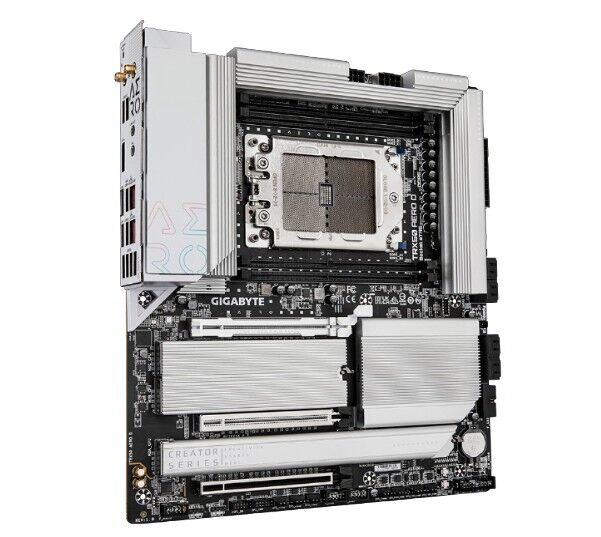

Gigabyte TRX50 AERO D AMD Ryzen Motherboard 4x DDR5~256GB,2x PCIe x16 slots, 4x M.2, 8x SATA 6Gb s connectors, 11x USB 3.2, 4x USB2.0, 2x

CPU

AMD Socket sTR5, support for:

AMD Ryzen„ Threadripper„ PRO 7000 processors AMD Ryzen„ Threadripper„ 7000 Series processors

Chipset

AMD TRX50

Memory

Support for DDR5 7800(O.C.) 7600(O.C.) 7200(O.C.) 7000(O.C) 6800(O.C.) 6400(O.C.) 6000(O.C.) 5600(O.C.) 5200 4800 4400 MT s ECC Registered memory modules (RDIMM RDIMM-3DS)

4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory

Quad channel memory architecture

Support for AMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory modules

Audio

Realtek ALC4080 CODEC (rear panel audio)

- Support for DTS:X Ultra

- High Definition Audio

- 2-channel

Realtek ALC897 CODEC (front panel audio)

LAN

Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps 5 Gbps 2.5 Gbps 1 Gbps 100 Mbps) (LAN1)

Realtek 2.5GbE LAN chip (2.5 Gbps 1 Gbps 100 Mbps) (LAN)

Wireless Communication module

Qualcomm Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4 5 6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

Note:

Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)

Wi-Fi 7 channels on 6GHz band availability depends on individual country fts regulations.

Expansion Slots

CPU:

- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1 PCIEX16_2)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110 2280 PCIe 5.0 x4 x2 SSD support) (M2C_CPU)

- 2 x M.2 connectors (Socket 3, M key, type 22110 2280 PCIe 5.0 x4 x2 SSD support) (M2A_CPU M2B_CPU)

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4 x2 SSD support) (M2D_CPU)

CPUChipset:

- 8 x SATA 6Gb s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

ChipsetIntel JHL8540 USB4 controller:

- 2 x USB4 USB Type-C ports on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

CPUUSB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

ChipsetUSB 2.0 Hub:

- 4 x USB 2.0 1.1 ports available through the internal USB headers

Internal I O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan water cooling pump header

4 x system fan headers

4 x system fan water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

8 x SATA 6Gb s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0 1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x power button

1 x Clear CMOS button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

Back Panel Connectors

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort In port

1 x USB4 USB
