ppSupports Intel Core 14th 13th 12th processors
ppUnparalleled Performance:Twin 1211 Phases Digital VRM Solution
ppDual Channel DDR5:4DIMMs with XMP 3.0 Memory Module Support
ppNext Generation Storage:3PCIe 4.0 x4 M.2 Connectors
ppAdvanced Thermal Design M.2 Thermal Guard: To Ensure VRM Power Stability M.2 SSD Performance
ppEZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
ppFast Networks:2.5GbE LAN Wi-Fi 6E 802.11ax
ppExtended Connectivity:DP HDMI Rear USB-C 10Gb s
ppSmart Fan 6:Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP
ppQ-Flash Plus:Update BIOS Without Installing the CPU Memory and Graphics Card
pp 66 phases parallel power design
pp
ppCPU
ppLGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core Pentium Gold and Celeron Processors
ppL3 cache varies with CPU
pp
ppChipset
ppIntel Z790 Express Chipset
pp
ppMemory
pp14th and 13th Generation Intel Core i9 i7 Pocessors:
pp- Support for DDR5 7600(O.C.) 7400(O.C.) 7200(O.C.) 7000(O.C.) 6800(O.C.) 6600(O.C.) 6400(O.C.) 6200(O.C.) 6000(O.C.) 5800(O.C.) 5600 5400 5200 4800 4400 MT s memory modules
pp13th Generation Intel Core i5 i3 and 12th Generation Intel Core Pentium Gold and Celeron Processors:
pp- Support for DDR5 4800 4400 MT s memory modules
pp4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
pp
ppWireless Communication module
ppIntel Wi-Fi 6E AX211 (PCB rev. 1.0)
pp

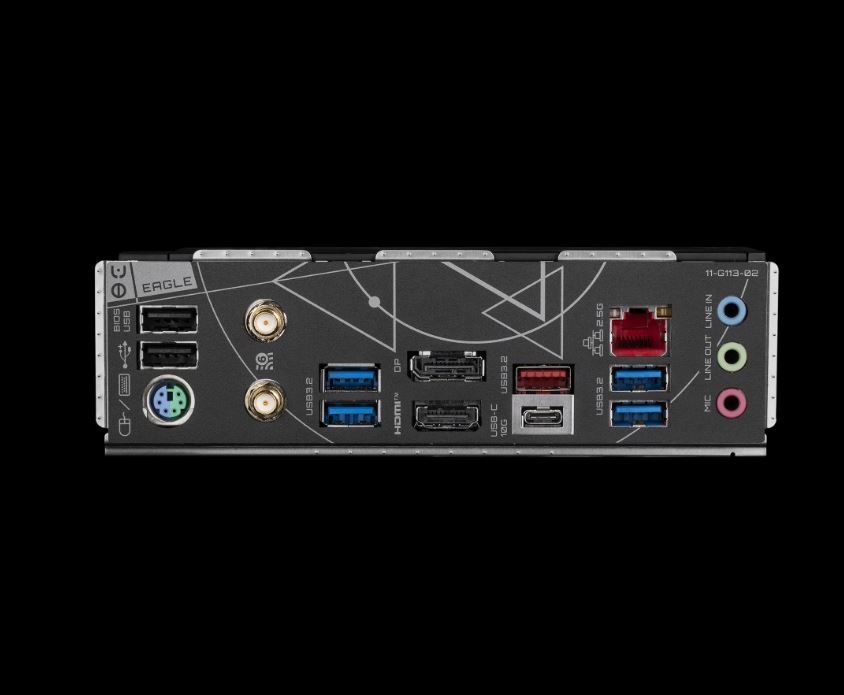

ppBack Panel Connectors
pp1 x PS 2 keyboard mouse port
pp1 x USB Type-C port with USB 3.2 Gen 2 support
pp1 x USB 3.2 Gen 2 Type-A port (red)
pp4 x USB 3.2 Gen 1 ports
pp2 x USB 2.0 1.1 ports
pp2 x SMA antenna connectors (1T1R)
pp1 x HDMI port
pp1 x DisplayPort
pp1 x RJ-45 port
pp3 x audio jacks
pp
ppForm Factor
ppATX Form Factor 30.5cm x 24.4cm
pp
ppOperating System
ppWindows 11 64-bit Windows 10 64-bit p
SKU | MBM-Z790EAGLEAX |
Barcode # | 4719331860998 |
Brand | Gigabyte |
Shipping weight | 2.0000kg |
Shipping width | 0.300m |
Shipping height | 0.200m |
Shipping length | 0.400m |

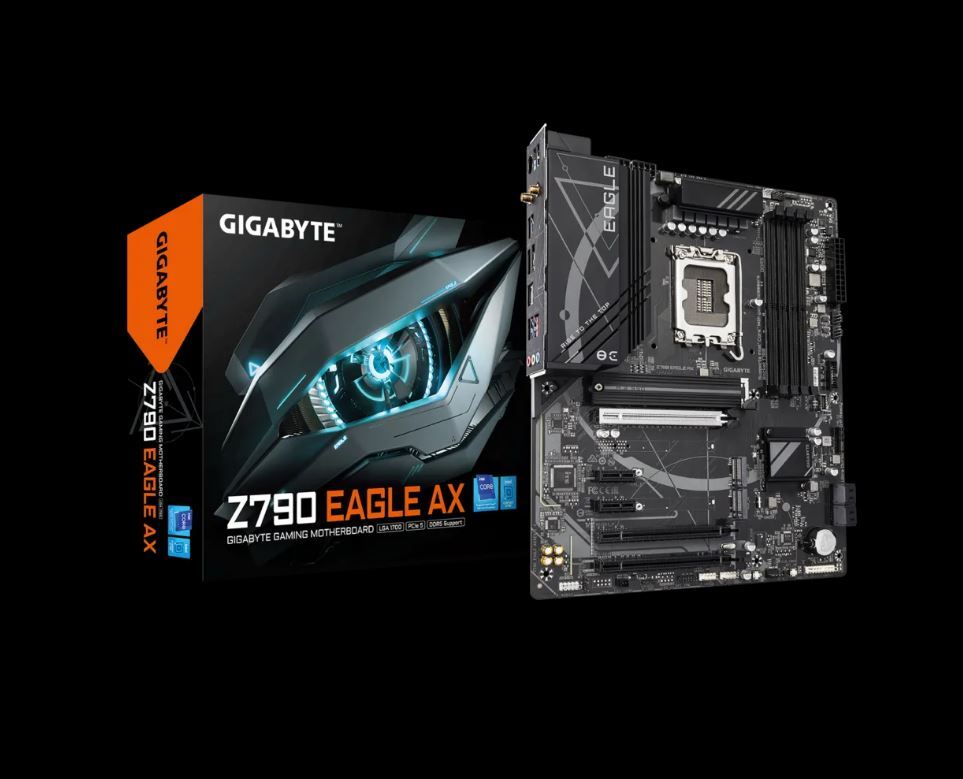

Gigabyte Z790 EAGLE AX Intel LGA 1700 ATX Motherboard 4x DDR5 ~192GB 3x PCI-E x16 3x M.2 4x SATA 5x USB 3.2 1x USB-C 2x USB 2.0
