Description

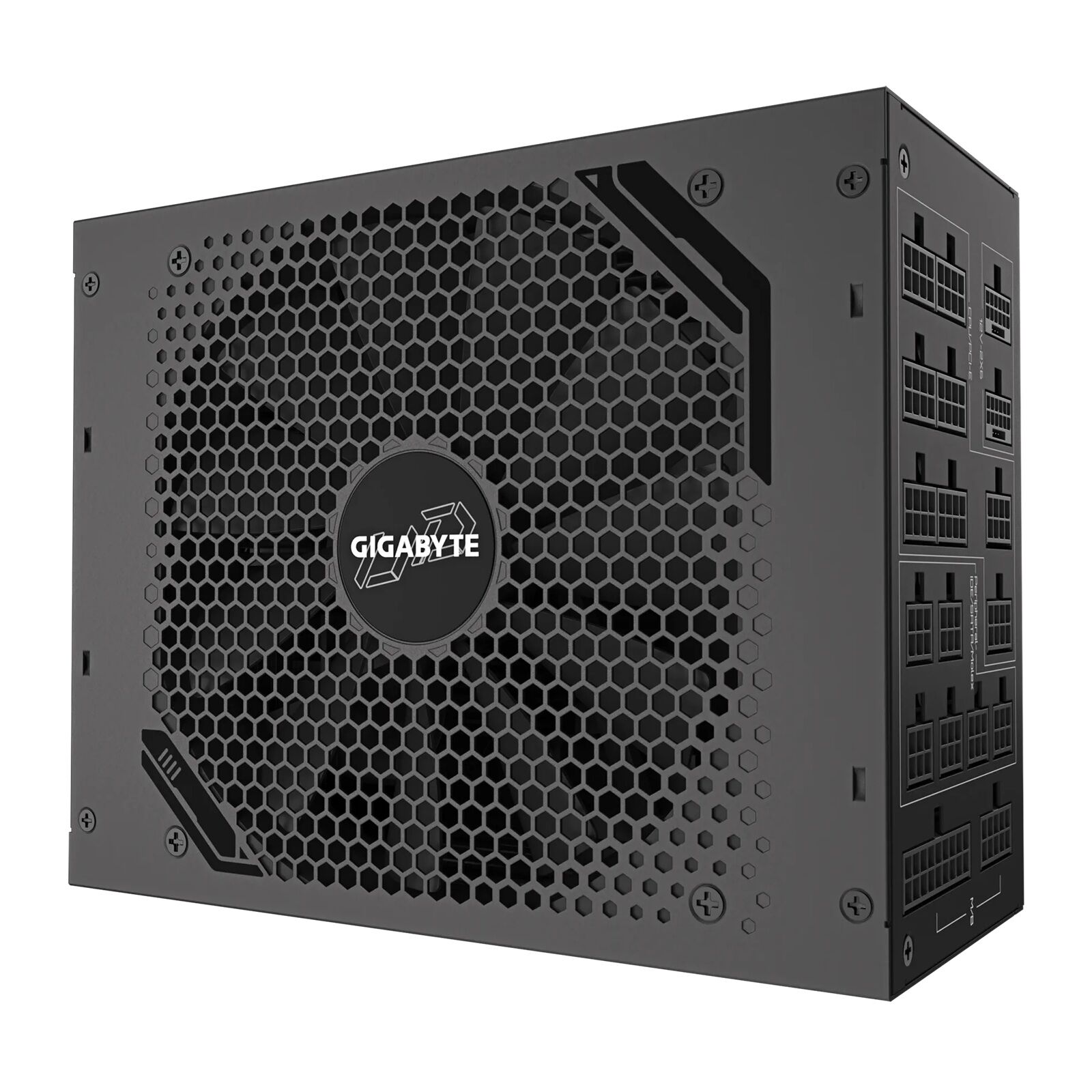

Gigabyte GP-UD1600PM PG5 AI TOP Power Supply, 1600W, ATX12V, 80 PLUS Platinum Fan, Type 140mm Double Ball Bearing fan 100,000 hours, 3 years warranty


SPECIFICATION

Model GP-UD1600PM PG5

Type Intel Form Factor ATX 12V v3.1

PFC Active PFC (0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 15-7.5A

Input Frequency 60-50 Hz

Output Capacity 1600W

Dimension 150 x 190 x 86mm

Fan Type 140mm Double Ball Bearing fan

80 PLUS Platinum

Efficiency 92pct at typical load

MTBF 100,000 hours

Protection OVP OPP SCP UVP OCP OTP

Power Good Signal 100-150ms

Hold Up Time 16ms

Cable Type Flat, All black

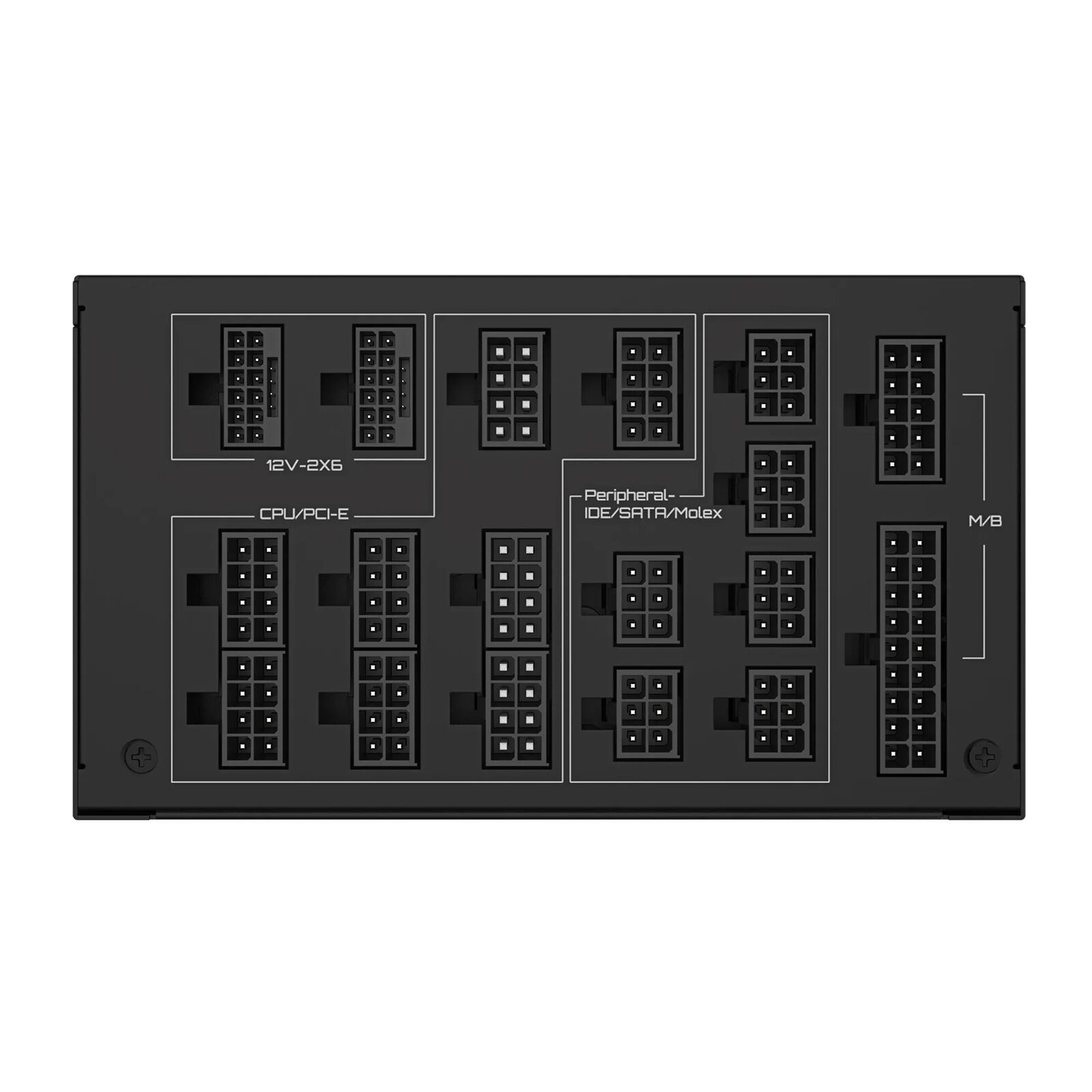

Connectors

ATX MB 204 Pin x 1 : 610mm1

CPU EPS 44 Pin x 2 : 650mm2

PCI-E 16 Pin x 2 : 700mm2

PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm2

PCI-E 62 Pin x 8 : 650mm150mm4

SATA x 16 : 650mm150mm150mm150mm4

4 Pin Peripheral x 6 4 Pin floppy x 2 : 600mm150mm150mm150mm2

Specifications
SKU PSG-UD1600PMPG5
Barcode # 4719331555085
Brand Gigabyte
Shipping weight 2.7200kg
Shipping width 0.314m
Shipping height 0.218m
Shipping length 0.356m

Gigabyte GP-UD1600PM PG5 AI TOP Power Supply, 1600W, ATX12V, 80 PLUS Platinum Fan, Type 140mm Double Ball Bearing fan 100,000 hours, 3 years

$483.00
RRP $599.00 save 19%

or 4 payments of $120.75 with Learn more

In Stock
