Description

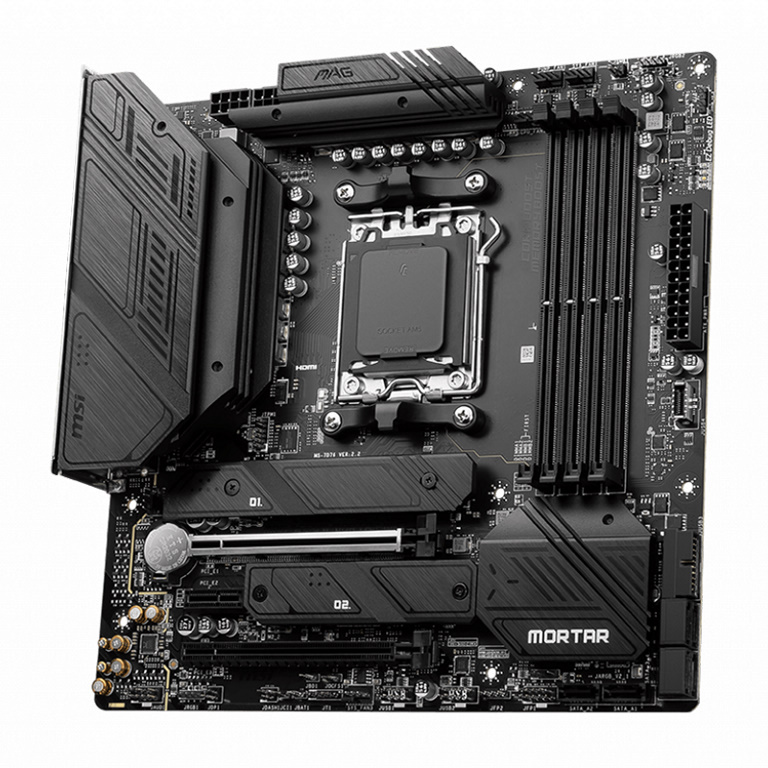

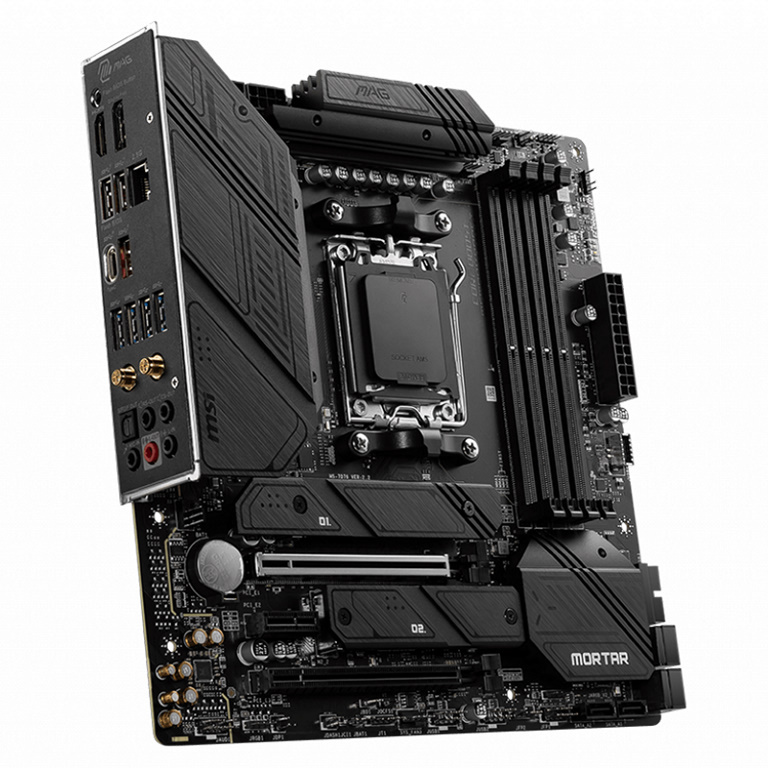

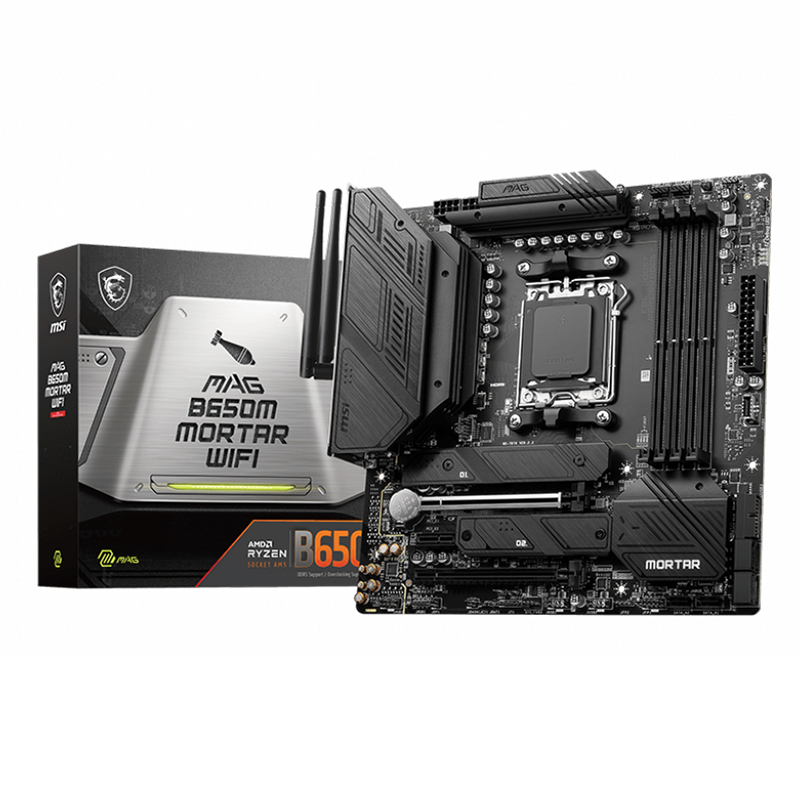

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 6x SATA, 8x USB 3.2, 1x USB Type C


CHIPSET AMD B650


CPU SUPPORT Supports AMD Ryzen„ 7000 Series Desktop Processors

Socket AM5


MEMORY 4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz


ONBOARD GRAPHICS 1x HDMI„

1x DisplayPort

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


EXPANSION SLOT 2x PCI-E x16 slot

Support x16/ x4


1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)


STORAGE 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G port

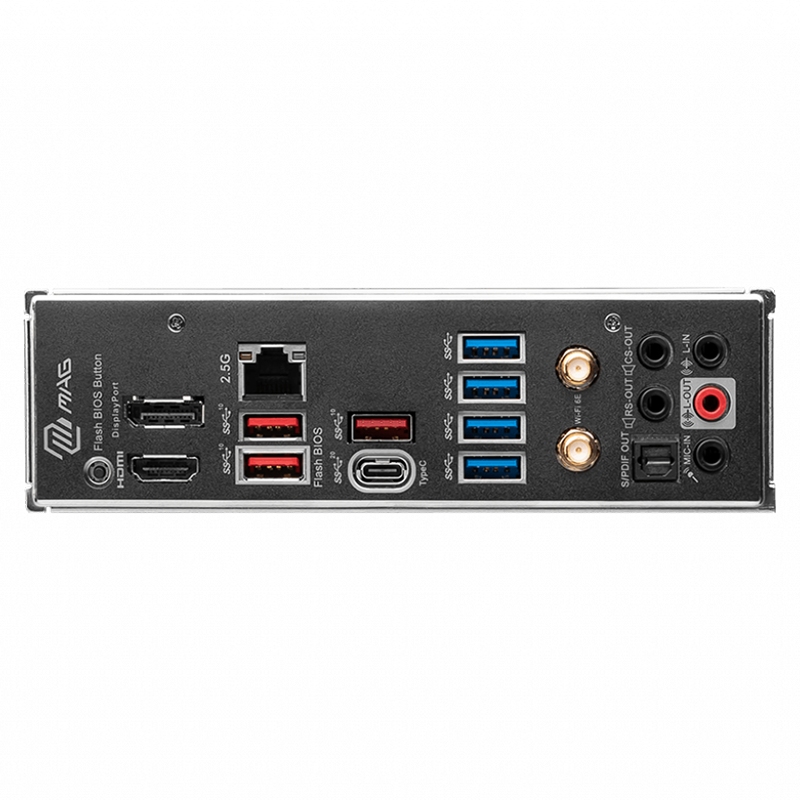

USB 4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)


PCB DIMENSION mATX

243.84mmx243.84mm

Specifications
SKU MBM-B650MMORTARWIFI
Barcode # 4711377010207
Brand MSI
Shipping weight 2.2200kg
Shipping width 0.380m
Shipping height 0.174m
Shipping length 0.382m
Assembled length 2.820m
Assembled height 0.740m
Assembled width 2.800m

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Motherboard 4x DDR5 ~128GB 1x PCI-E x16 2x M.2 6x SATA 8x USB 3.2 1x USB Type C

$382.80
RRP $415.80 save 8%

or 4 payments of $95.70 with Learn more

Sold Out

Product Information

SKU:

MBM-B650MMORTARWIFI

Brand:

MSI

Barcode #:

4711377010207

Shipping Weigth:

2.2200kg
