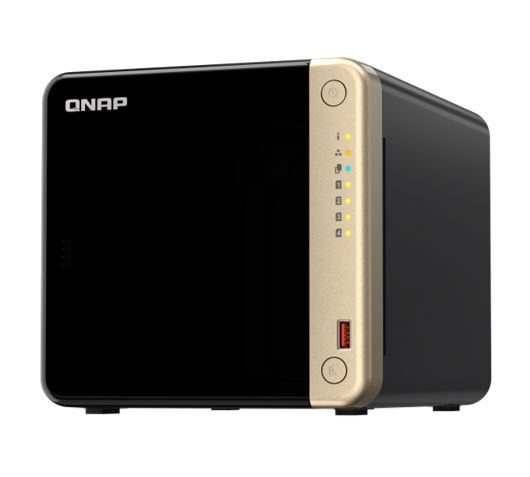

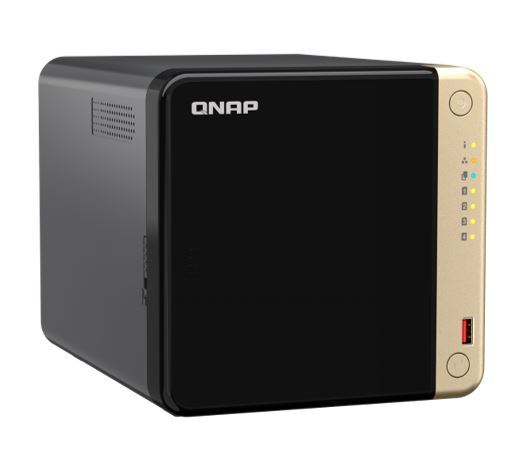

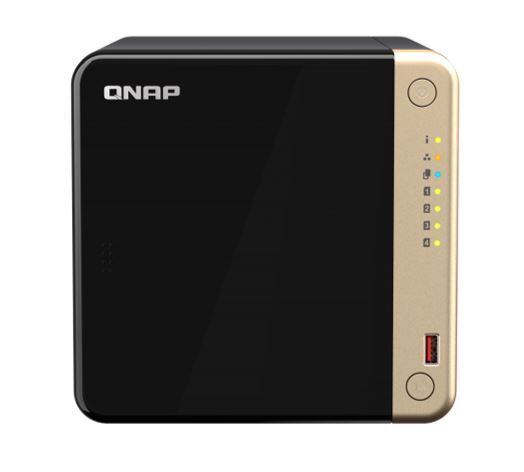

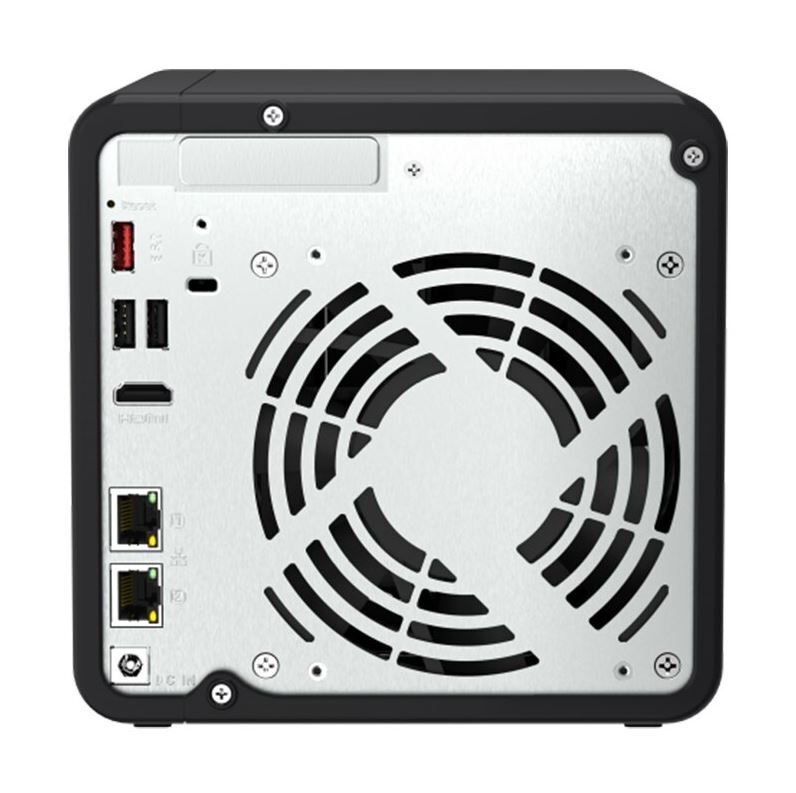

QNAP TS-464-8G 4 Bay NAS Intel Celeron N5095 Quad core 8GB DDR4 2xM.2 2280 PCle 2x2.5GbE 1xSlot PCle Gen3x2 2xUSB3.2 1XHDMI2.0 3YR WTY

CPU Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture 64-bit x86

Graphic Processors Intel UHD Graphics

Floating Point Unit

Encryption Engine (AES-NI)

Hardware-accelerated Transcoding

System Memory 8 GB on board (non-expandable)

Maximum Memory 8 GB

Flash Memory 4GB (Dual boot OS protection)

Drive Bay 4 x 3.5-inch SATA 6Gb/s

The system is shipped without HDD.

For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility 3.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Hot-swappable

M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1

SSD Cache Acceleration Support

2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card

10 Gigabit Ethernet Port Optional via PCIe expansion card

Wake on LAN (WOL)

Jumbo Frame

PCIe Slot 1

Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.

USB 2.0 port 2

USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A

IR Sensor (Optional QNAP RM-IR004 remote control)

HDMI Output 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz)

Form Factor Tower

LED Indicators Power/Status, LAN, USB, HDD1-4

Buttons Power, USB copy, Reset

Dimensions (HxWxD) 168 × 170 × 226 mm

Weight (Net) 2.26 kg

Weight (Gross) 3.6 kg

Operating Temperature 0 - 40 °C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit 90W adapter, 100-240V

Power Consumption: HDD Sleep Mode 21.618 W

Power Consumption: Operating Mode, Typical 40.536 W

Tested with drives fully populated.

Fan 1 x 120mm, 12VDC

System Warning Buzzer

Kensington Security Slot

Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
