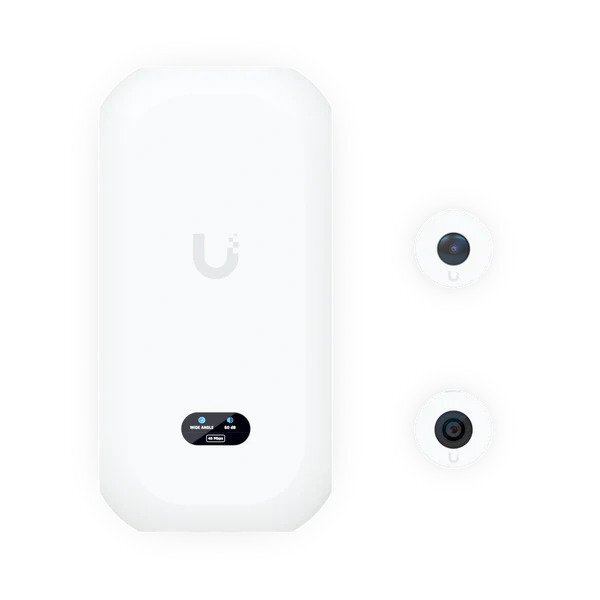

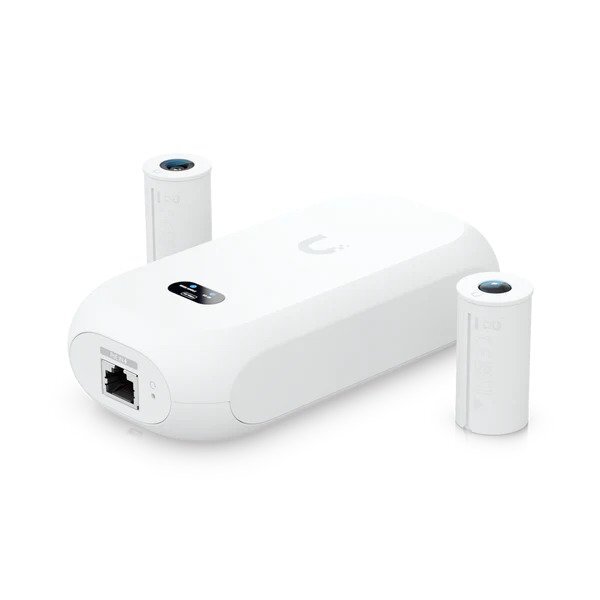

The worlds first security camera system designed for interior design professionals.

Features:

8 MP wide angle lens 97.5˚(H) for wall mounted application (included)

12 MP fisheye 360° lens for ceiling mounted applications (included)

Two-way audio (UVC-AI-Theta-Audio sold separately)

Advanced AI processing engine for long-range smart detections

Color LCM display for device status monitoring

Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)

Mechanical

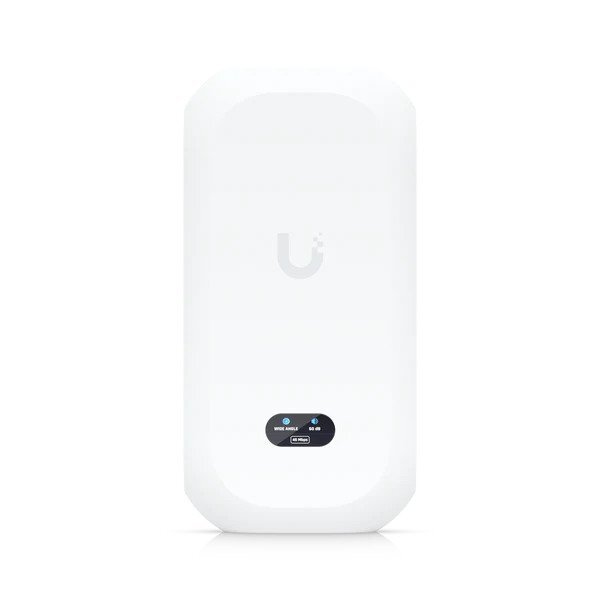

Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5')

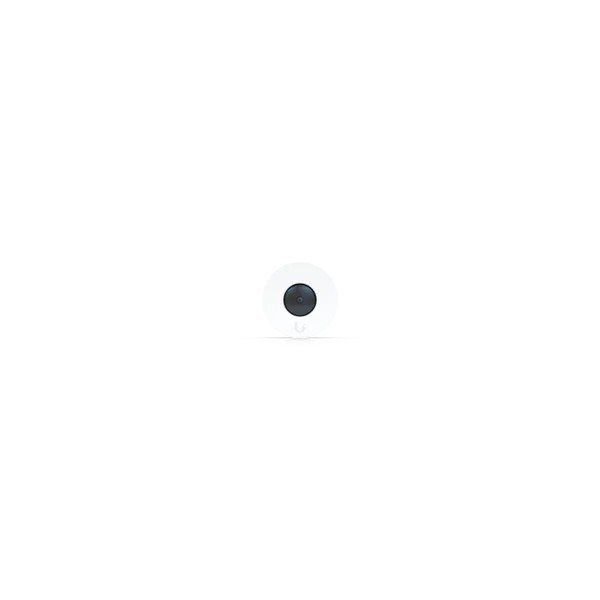

UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7')

Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)

UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)

UVC-AI-Theta-Lens/360: 15 g (0.5 oz)

UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)

Enclosure materials UVC-AI-Theta-Hub: aluminum alloy

UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

Mount materials UVC-AI-Theta-Hub: aluminum alloy

UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3')

Cable jacket enclosure material PVC

Cable length 1 m (3.3 ft)

Cable diameter 3.7 mm (0.15')

Cable jacket material Woven fabric

Cable weight 18 g (0.63 oz)

Cable connector type Theta proprietary

Optics

Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor

UVC-AI-Theta-Lens-360: 12MP CMOS sensor

Lens Fixed focal length

View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°

UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°

Video

Video compression H.264, MJPEG

Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)

UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)

Max. frame rate UVC-AI-Theta-Lens: 24 FPS

UVC-AI-Theta-Lens-360: 20 FPS

Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
