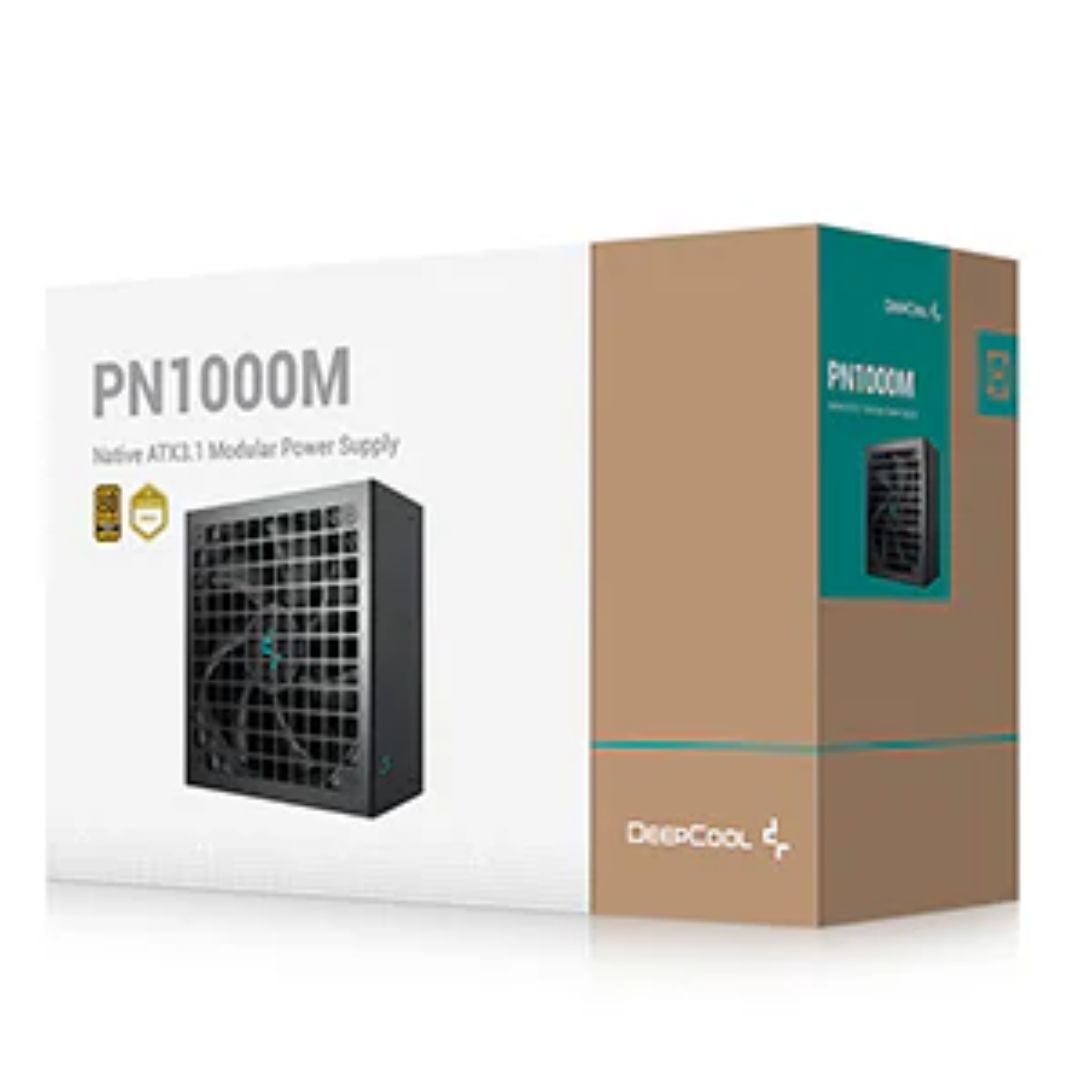

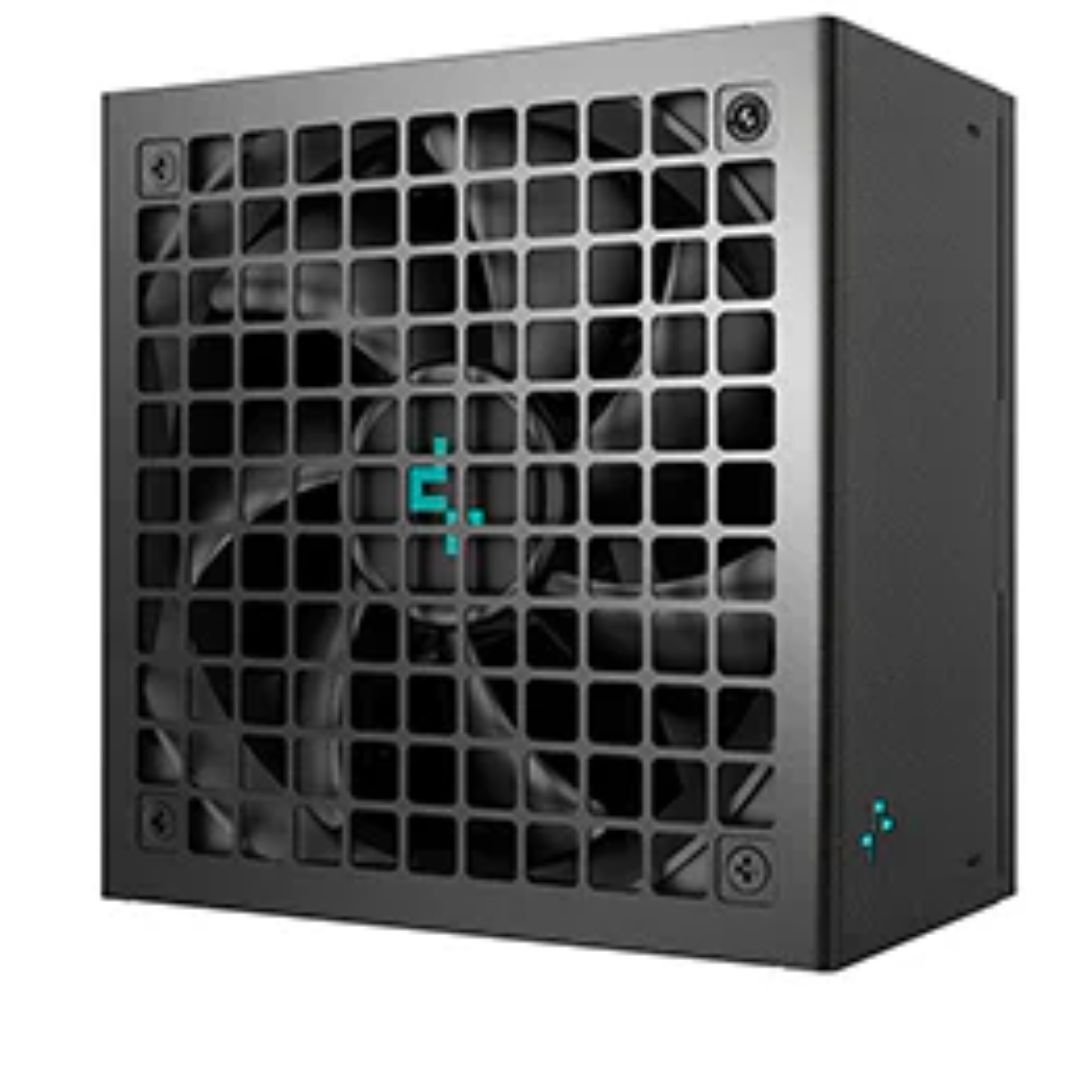

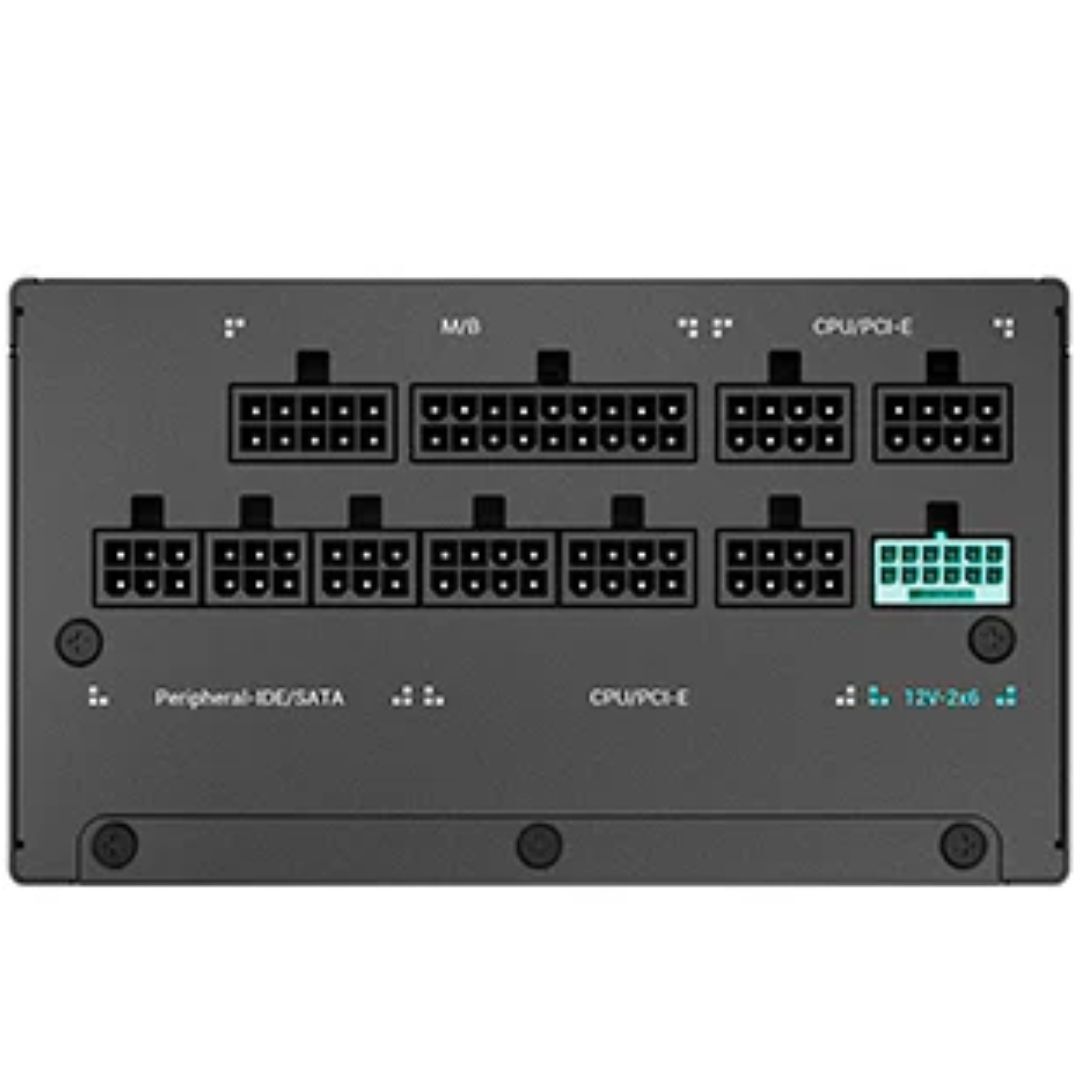

PN1000MThe DeepCool PN1000M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS PCIe ports, the PN1000M provides stable power for a wide range of modern high-power components.


FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.


POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to ‰¥ 16 ms under a high load of 80pct


PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2x6 cable, the PN1000M provides up to 600W for modern GPUs.


Type ATX12V V3.1

Product Dimensions 150—150—86mm (W x L x H)

Efficiency certification 80Plus Gold

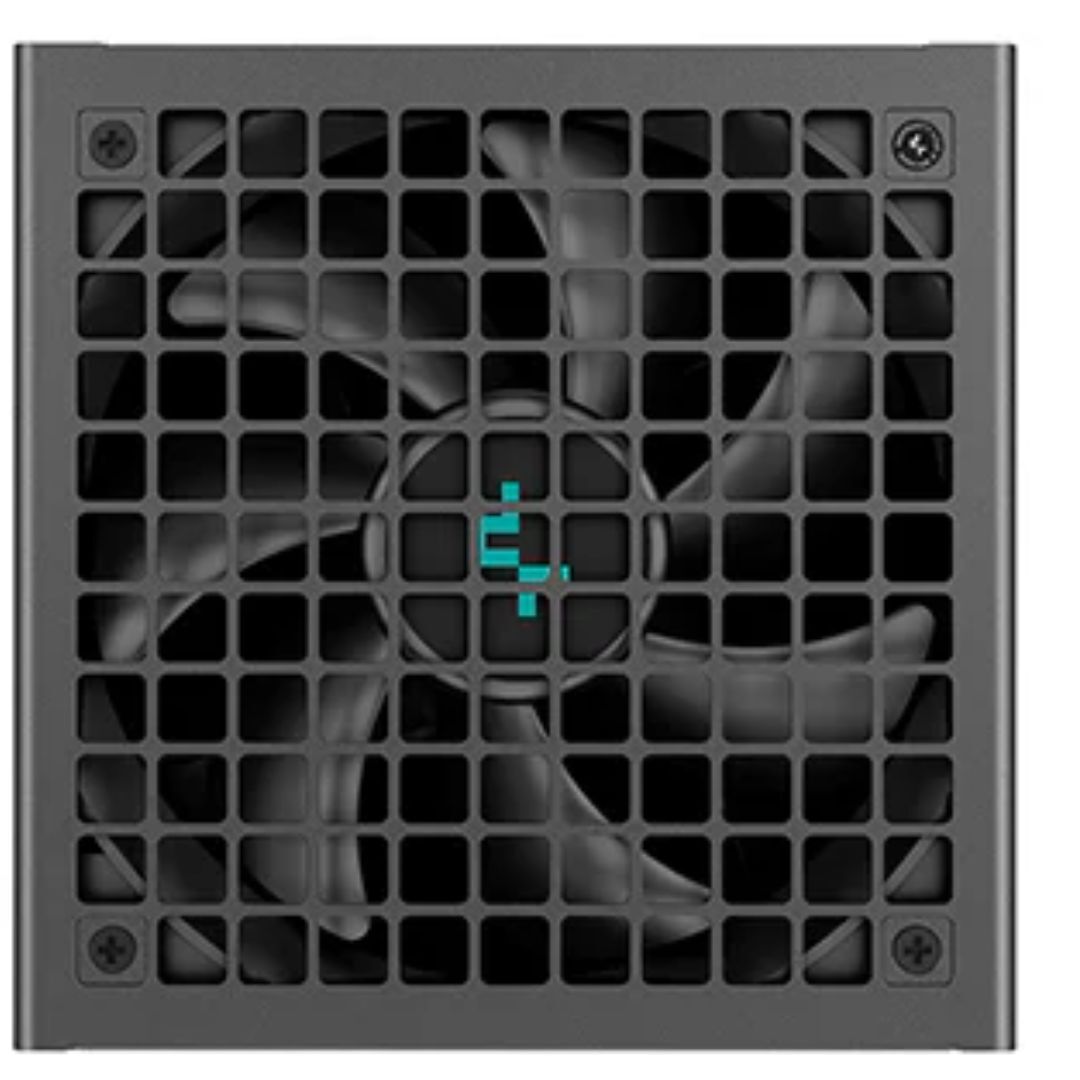

Fan Size 135mmFan Bearing FDB (Fluid Dynamic Bearing)

Topology Active PFC Half Bridge SRC LLC DC to DC

Capacitors Japanese Bulk Capacitor

Power Good Signal 100-150ms

Hold Up Time ‰¥16ms(80pct Load)

Efficiency ‰¥90pct Under Typical Load(50pct Loading)

Protection OPP OVP SCP OTP OCP UVP SIP NLO

Operation Temperature 0 - 40„ƒ

Regulatory CE FCC CCC TUV-RH cTUVus RCM EAC BIS

Erp Regulation ErP 2014

Environment Protection WEEE 中国 RoHS Triman P65

MTBF 100,000 Hours

Specifications
SKU PSD-PN1000M
Barcode # 6933412741220
Brand DEEPCOOL
Shipping weight 1.0000kg
Shipping width 0.200m
Shipping height 0.200m
Shipping length 0.200m

DeepCool PN1000M Black Power Supply Unit, 135mm Fan, Japanese Bulk Capacitor, Active PFC Half Bridge SRC LLC DC to DC, ATX12V V3.1
