Description

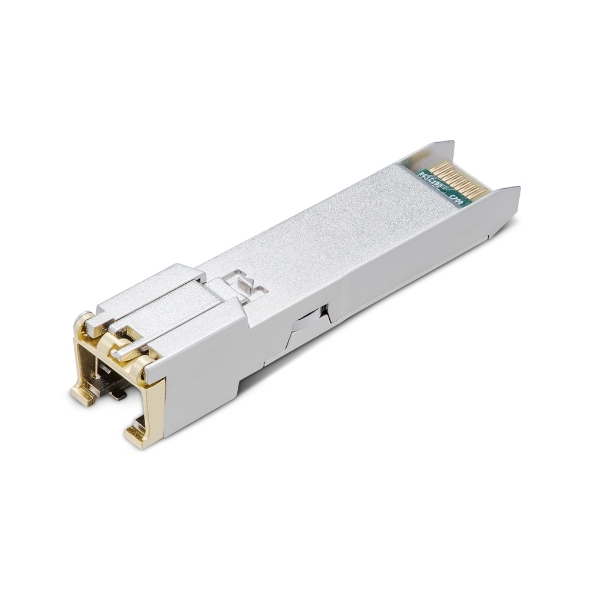

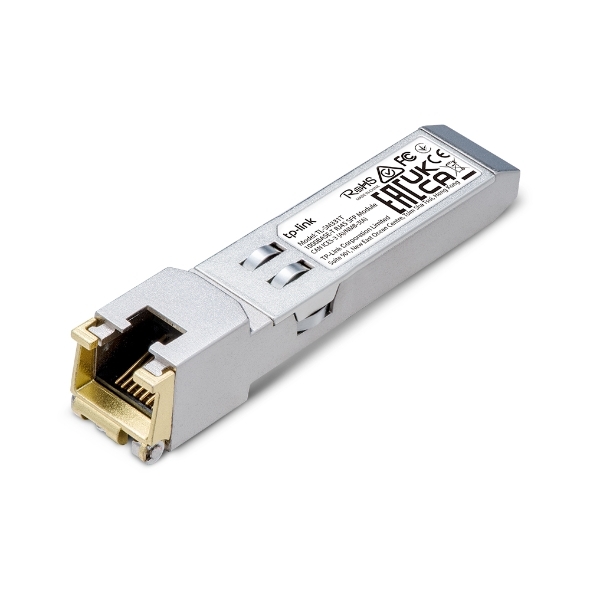

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module • Support 1000BASE-T Operation in Host Systems • Support TX Disable function • For 100m Reach Over UTP Cat 5e or above Cable • Hot-Pluggable SFP Footprint Features • Commercial Product Operating Temperature Range: 0-70°C • Compliant with IEEE Std 802.3-2002 • Fully Metallic Enclosure for Low EMI • Low Power Dissipation (0.5 W Typical, 0.8 W Max) PACKAGE CONTENTS Package Contents • 1000BASE-T RJ45 SFP Module TL-SM331T • Installation Guide HARDWARE FEATURES Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE 802.3-2002 Power Supply 3.3V Max. Cable Length 100m (Cat 5e or above) Data Rate 1.25 Gbps Port Type 1× 1000 Mbps RJ45 Port Safety & Emission FCC, CE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)
Specifications
SKU NWTL-SM331T
Barcode # 4897098687741
Brand TP-LINK
Shipping weight 0.6600kg
Shipping width 0.180m
Shipping height 0.140m
Shipping length 0.224m
Assembled length 1.240m
Assembled height 0.400m
Assembled width 0.800m

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module. 100m Reach Over UTP Cat 5e Or Above Cable 1000BASE-T TX Disable Hot Swappable

$49.00

or 4 payments of $12.25 with Learn more

In Stock

Product Information

SKU:

NWTL-SM331T

Brand:

TP-LINK

Barcode #:

4897098687741

Shipping Weigth:

0.6600kg
